Power Back Door System: Notes

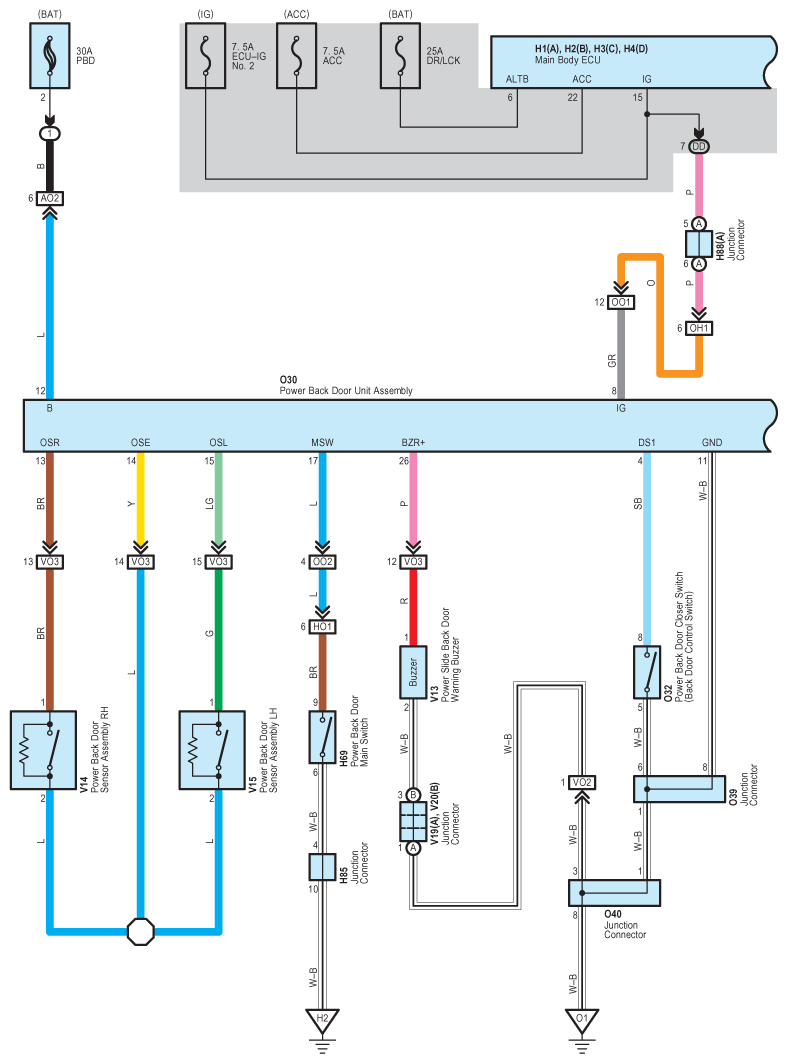

Fig 1: Power Back Door - Circuit Diagram (1 Of 6)

G07577838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

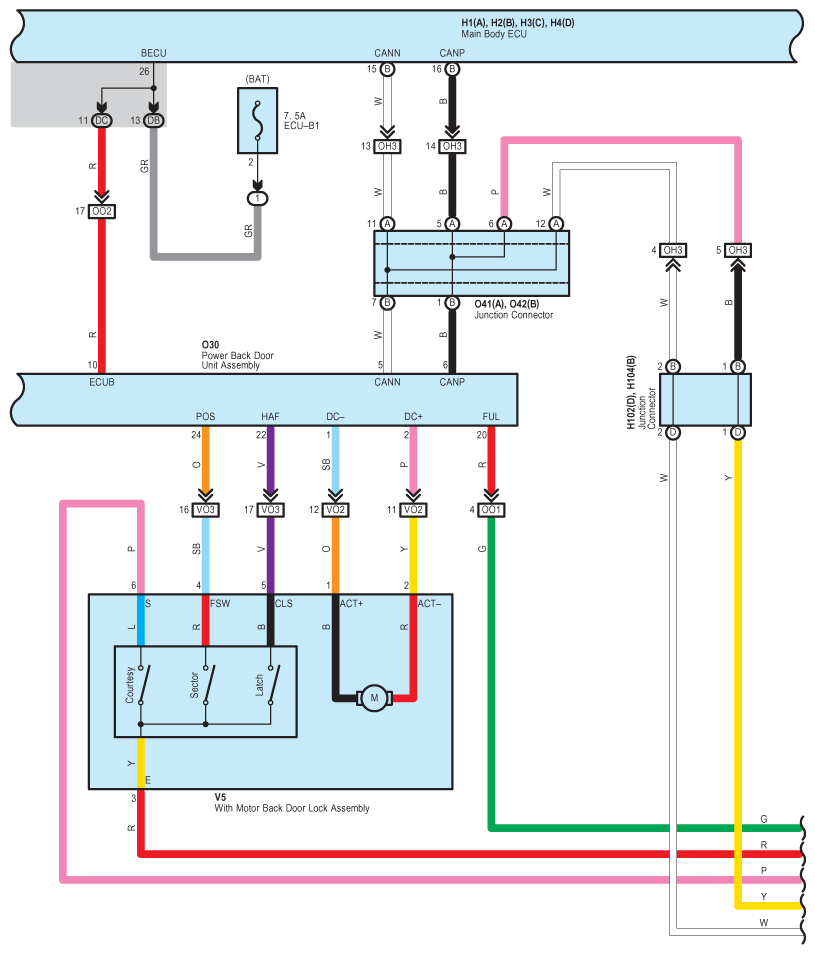

Fig 2: Power Back Door - Circuit Diagram (2 Of 6)

G07577839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

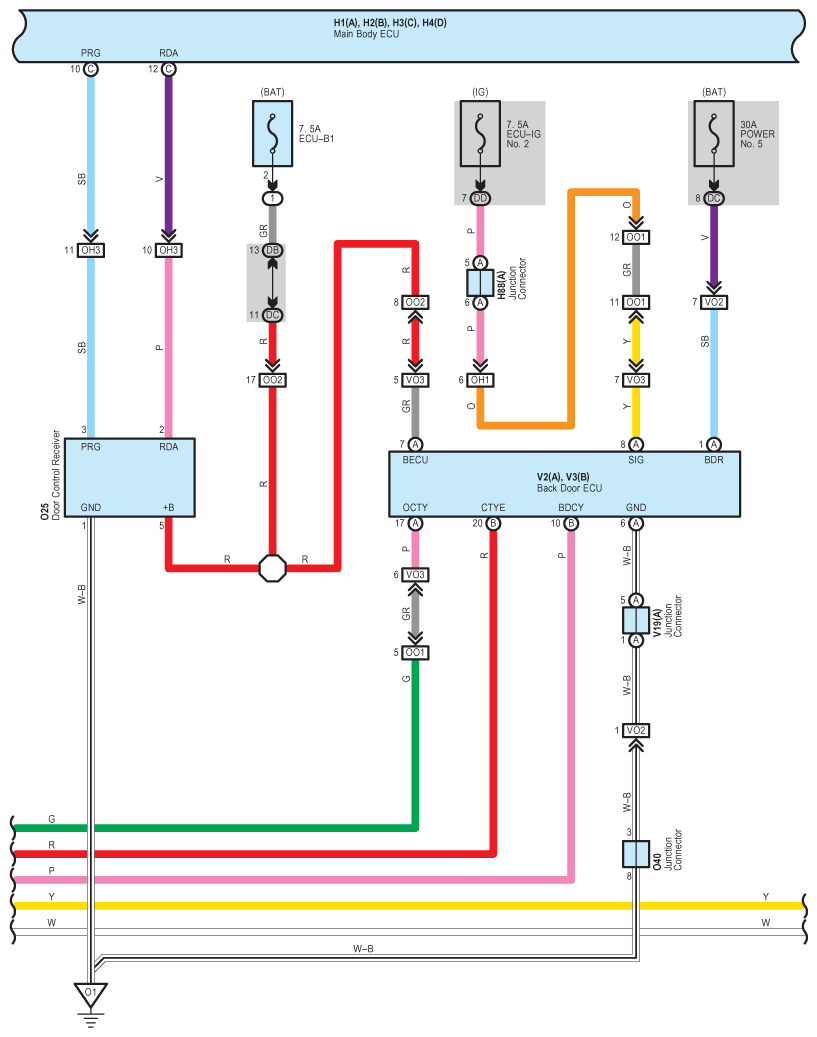

Fig 3: Power Back Door - Circuit Diagram (3 Of 6)

G07577840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

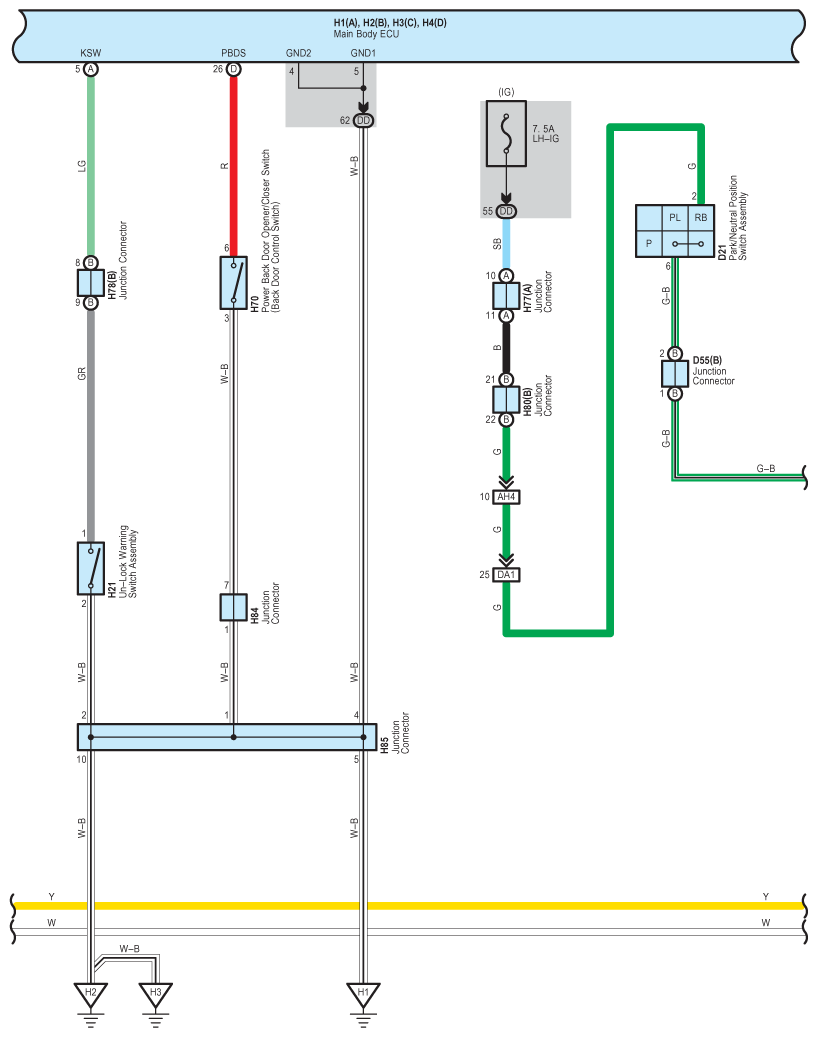

Fig 4: Power Back Door - Circuit Diagram (4 Of 6)

G07577841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

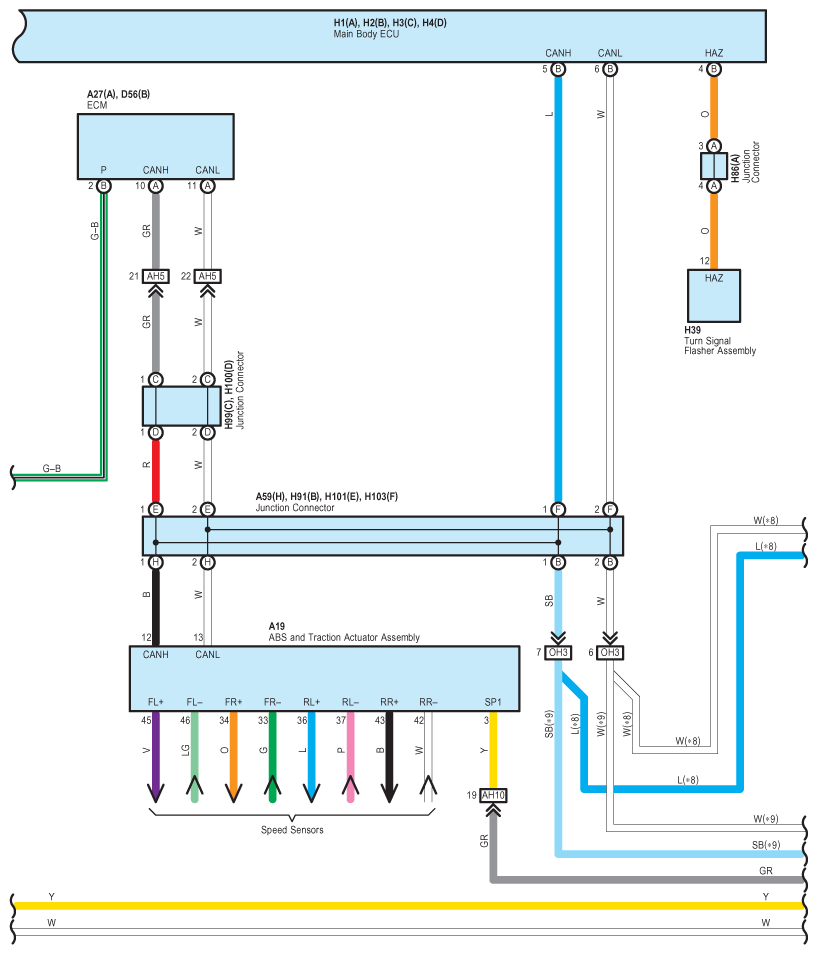

Fig 5: Power Back Door - Circuit Diagram (5 Of 6)

G07577842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

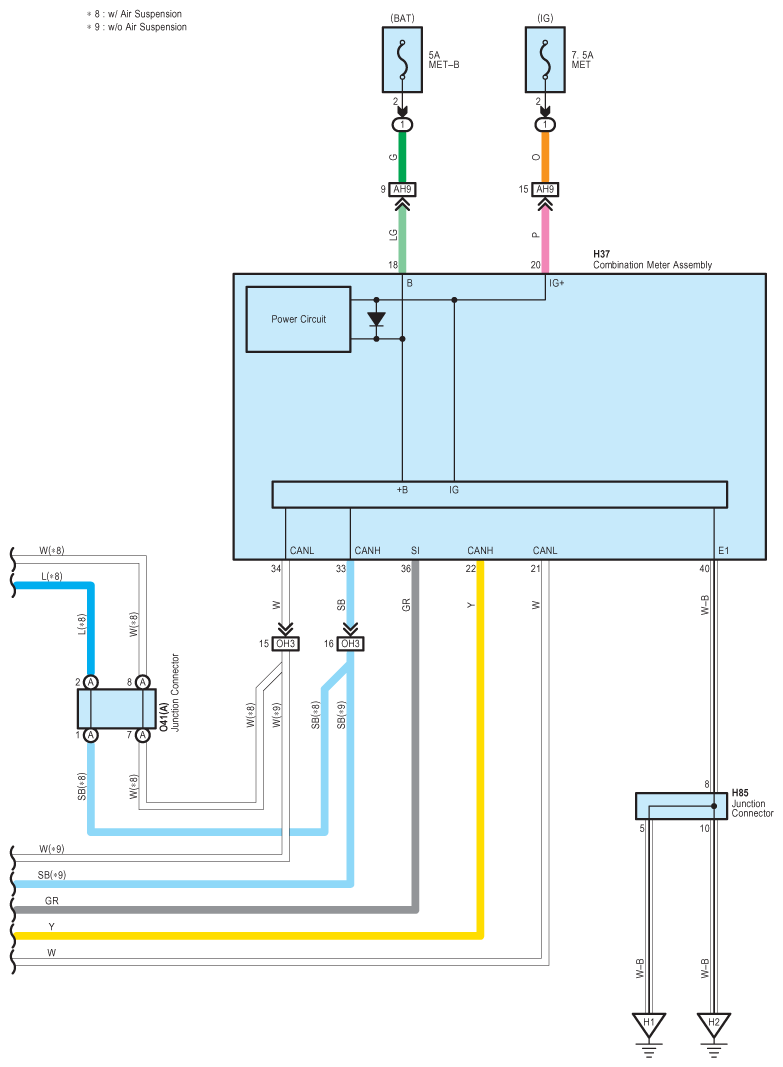

Fig 6: Power Back Door - Circuit Diagram (6 Of 6)

G07577843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
