Multi Mode 4WD System: Notes

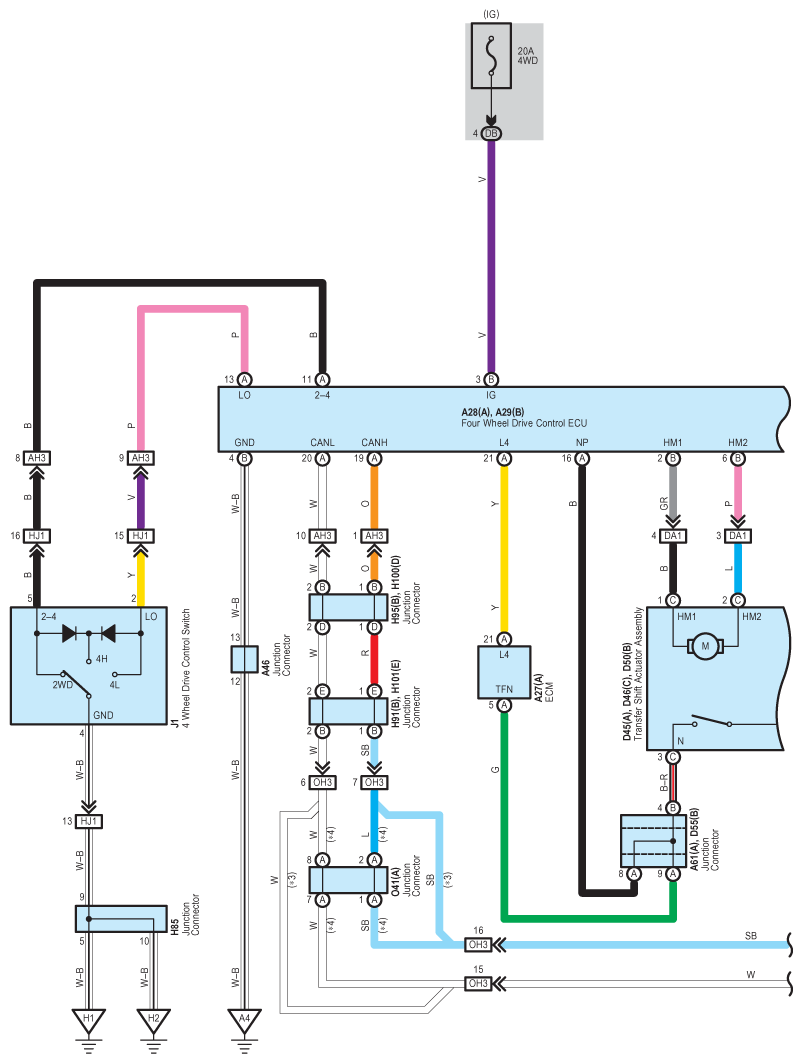

Fig 1: Multi Mode 4WD - Circuit Diagram (1 Of 3)
G07577820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

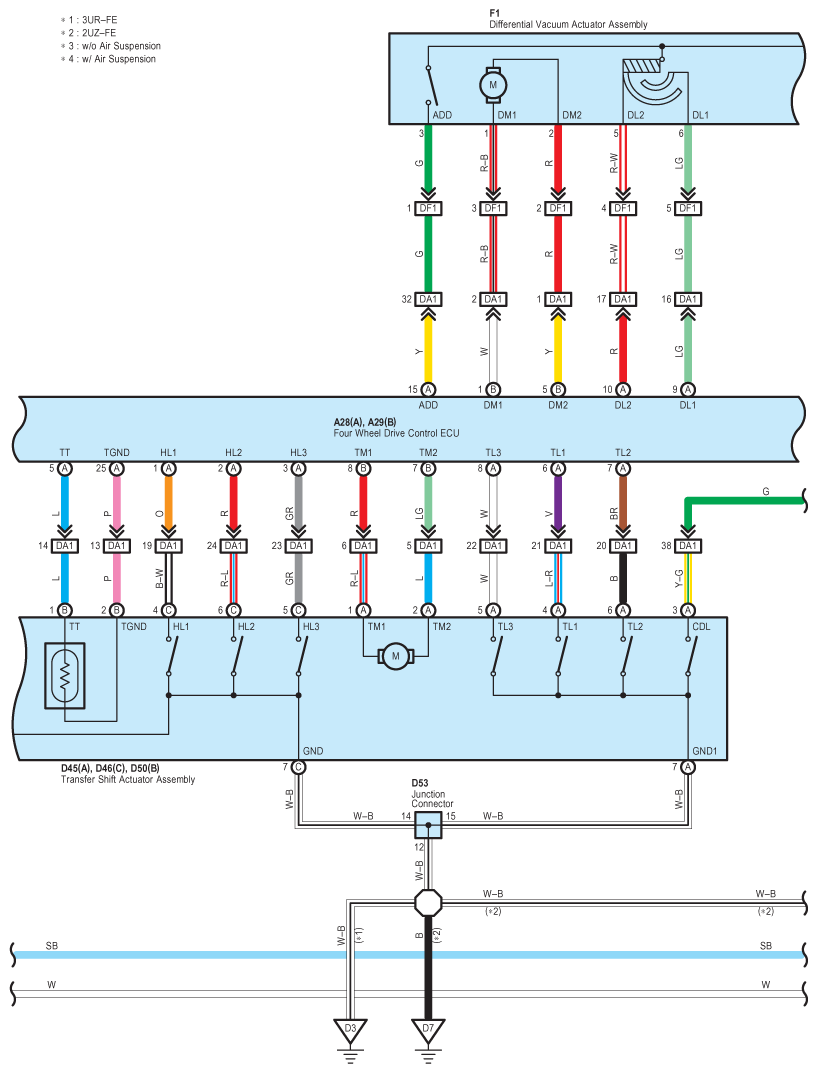

Fig 2: Multi Mode 4WD - Circuit Diagram (2 Of 3)
G07577821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

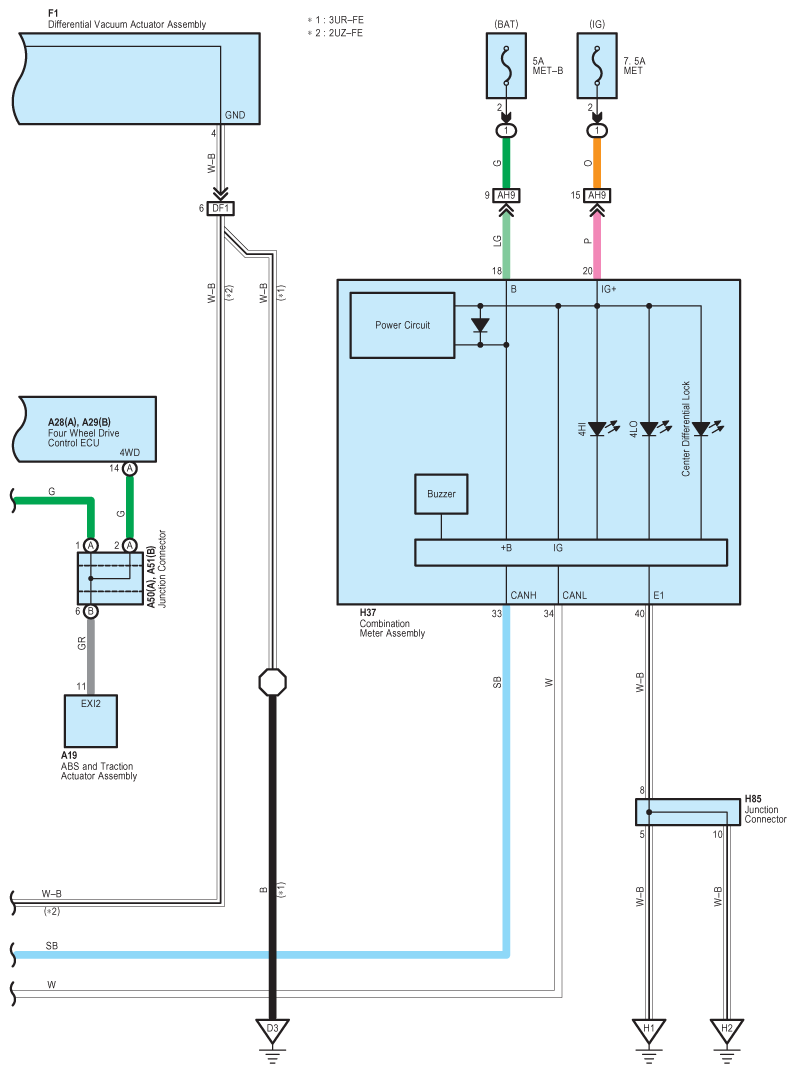

Fig 3: Multi Mode 4WD - Circuit Diagram (3 Of 3)
G07577822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
