Mirror Heater System: Notes

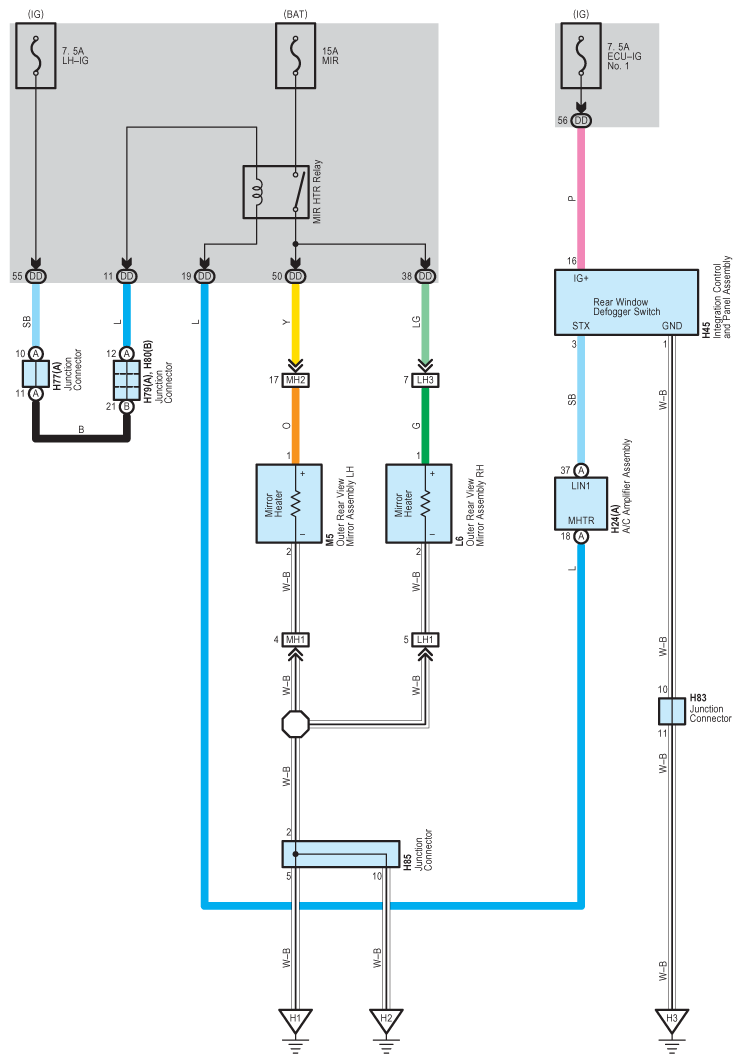

Fig 1: Mirror Heater - Circuit Diagram

G07577883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
