Illumination System: Notes

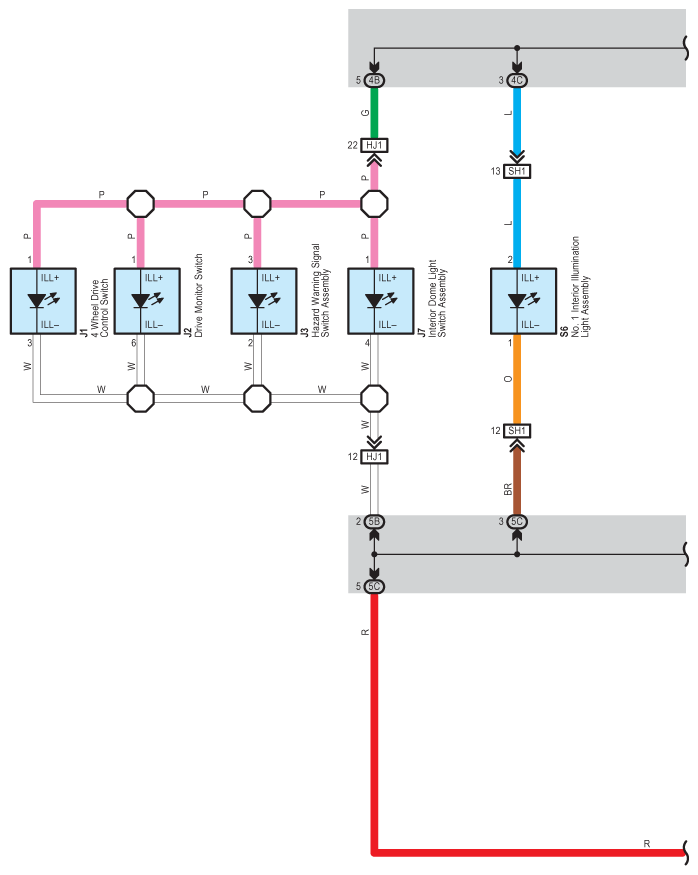

Fig 1: Illumination - Circuit Diagram (1 Of 9)

G07577712

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

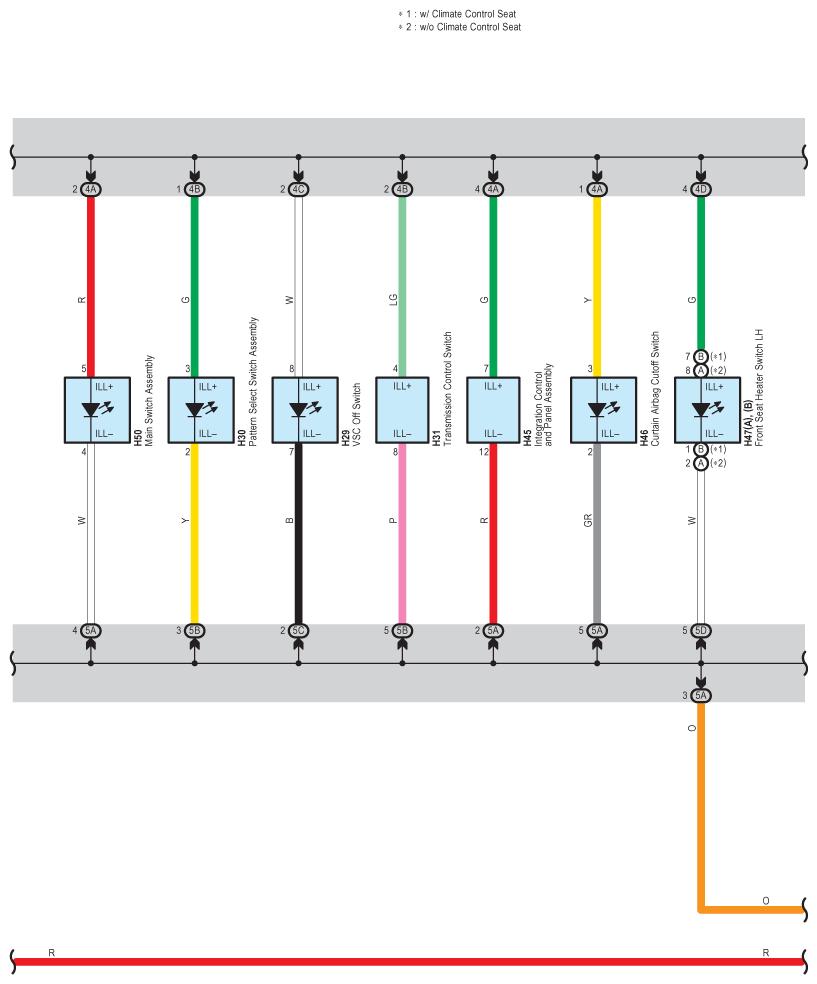

Fig 2: Illumination - Circuit Diagram (2 Of 9)

G07577713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

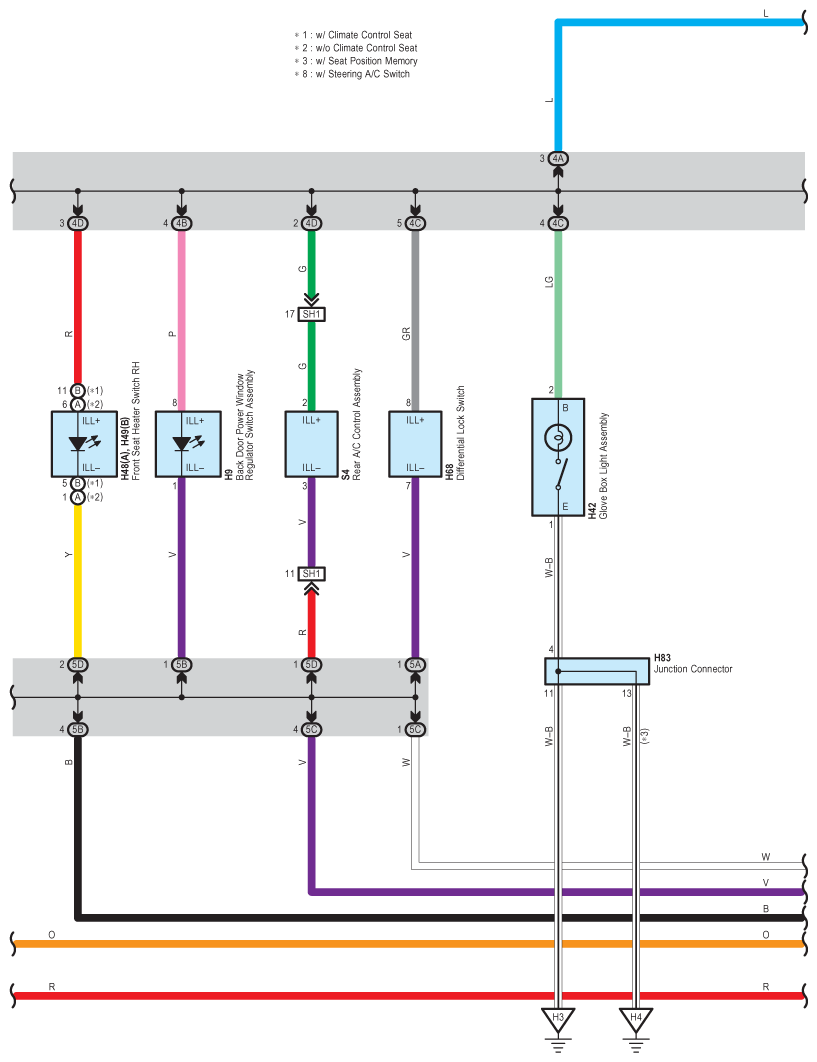

Fig 3: Illumination - Circuit Diagram (3 Of 9)

G07577714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

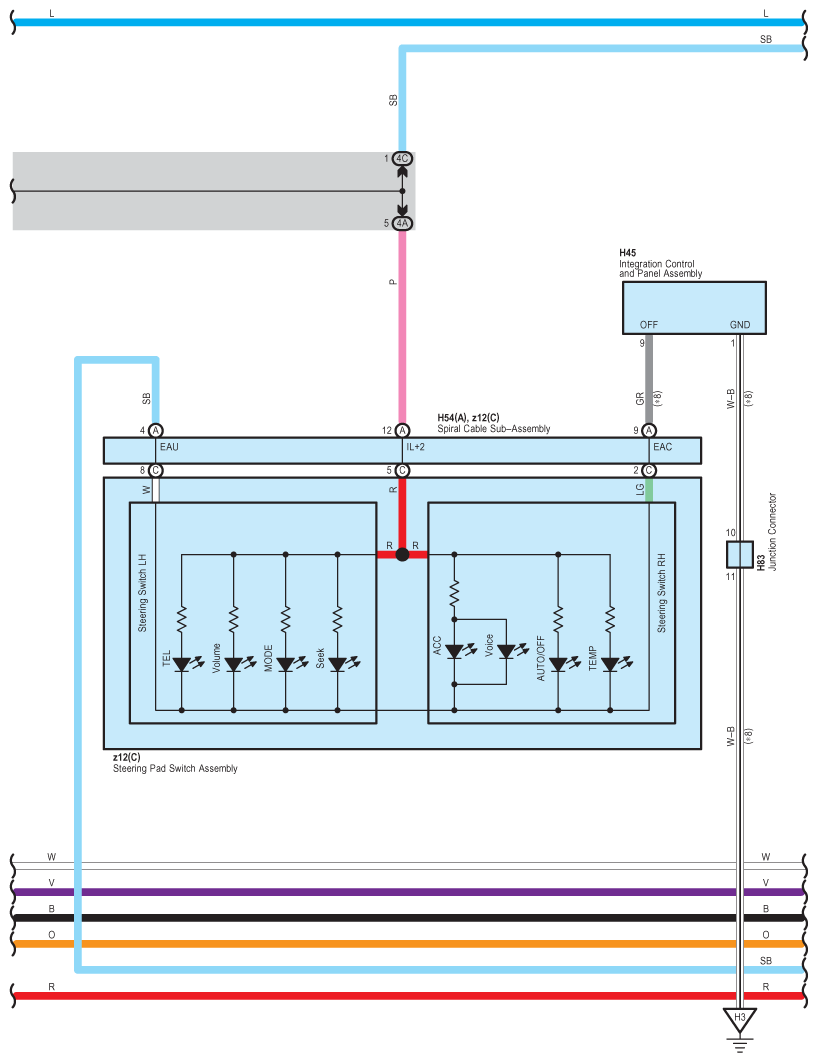

Fig 4: Illumination - Circuit Diagram (4 Of 9)

G07577715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

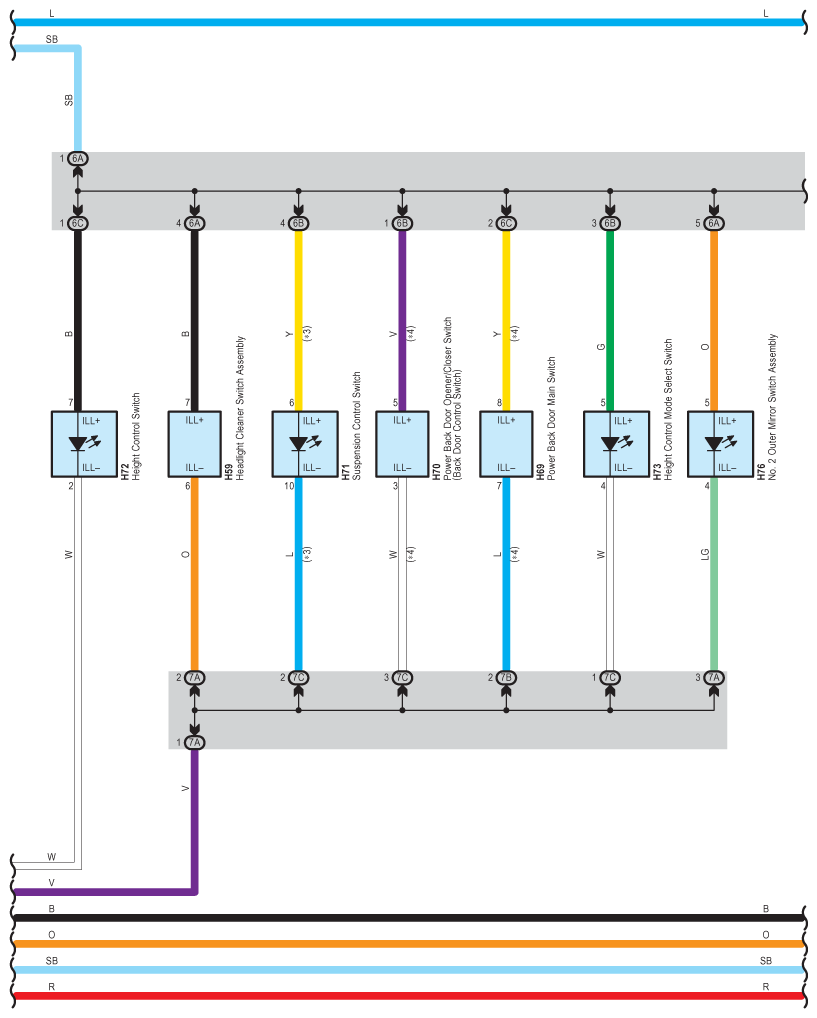

Fig 5: Illumination - Circuit Diagram (5 Of 9)

G07577716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

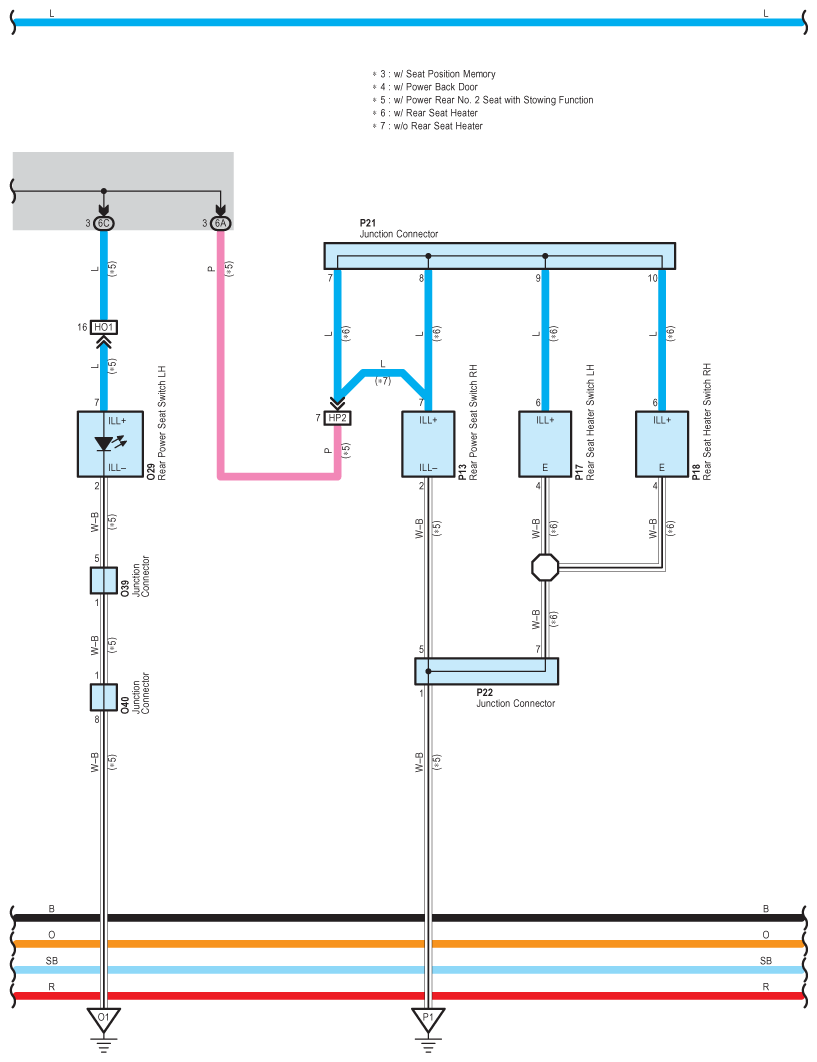

Fig 6: Illumination - Circuit Diagram (6 Of 9)

G07577717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

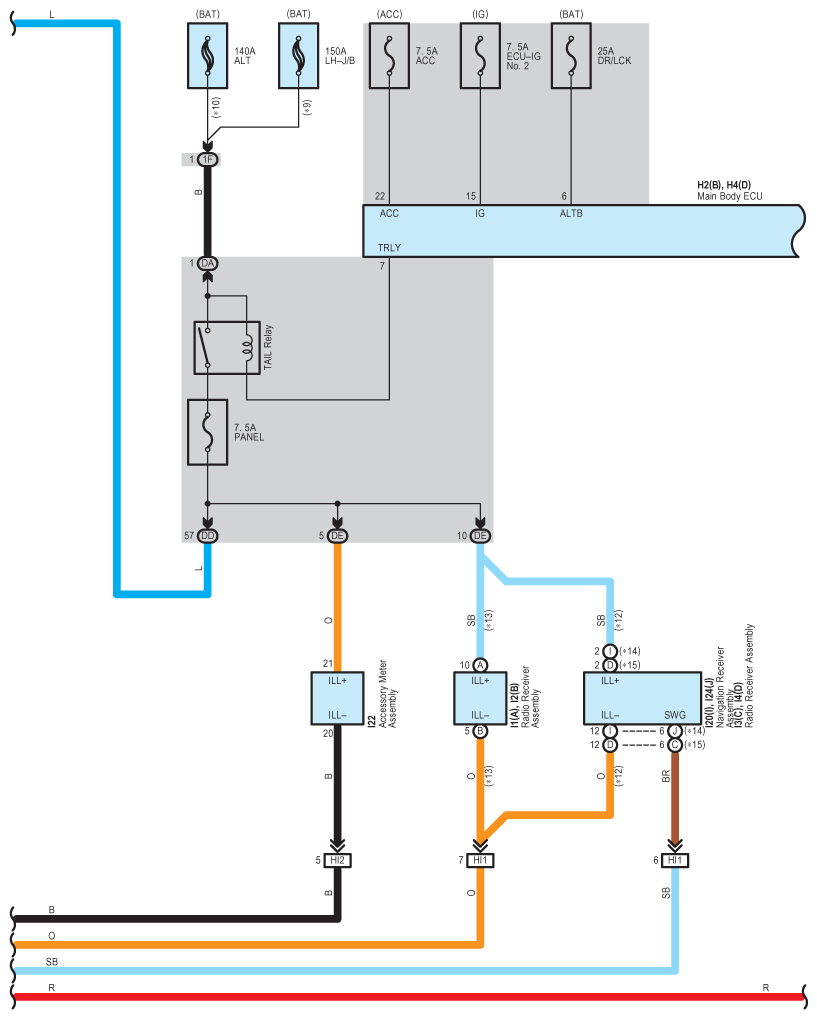

Fig 7: Illumination - Circuit Diagram (7 Of 9)

G07577718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

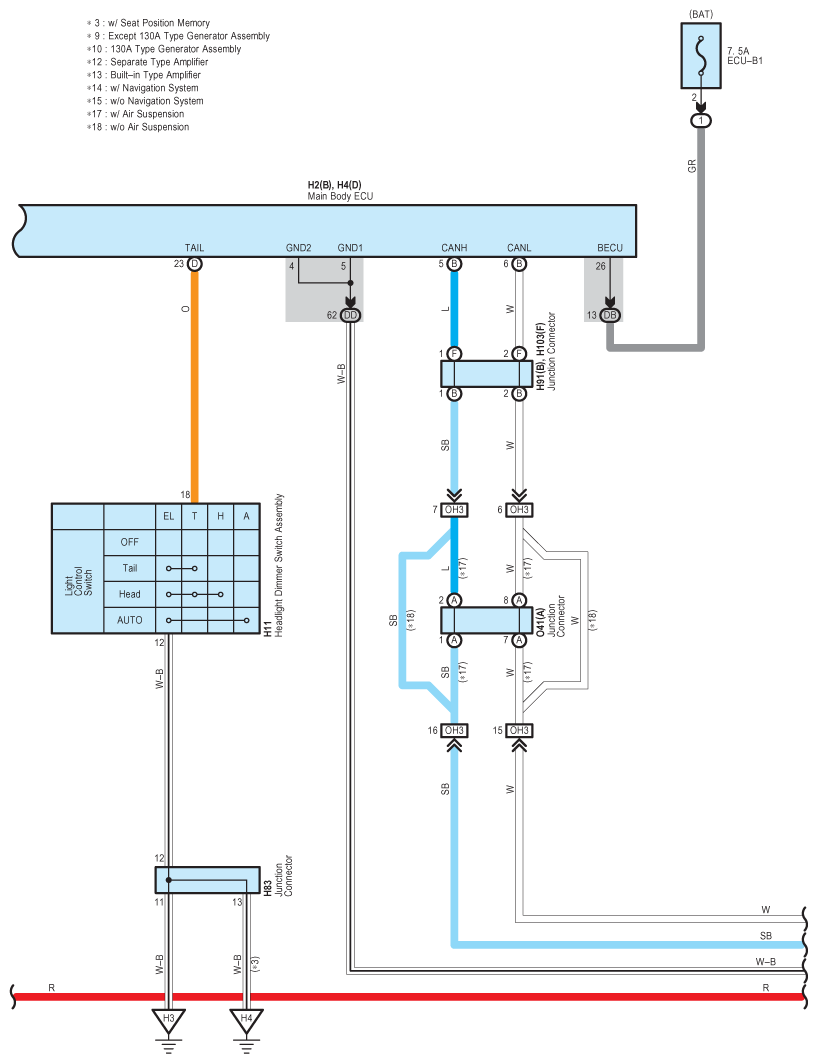

Fig 8: Illumination - Circuit Diagram (8 Of 9)

G07577719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

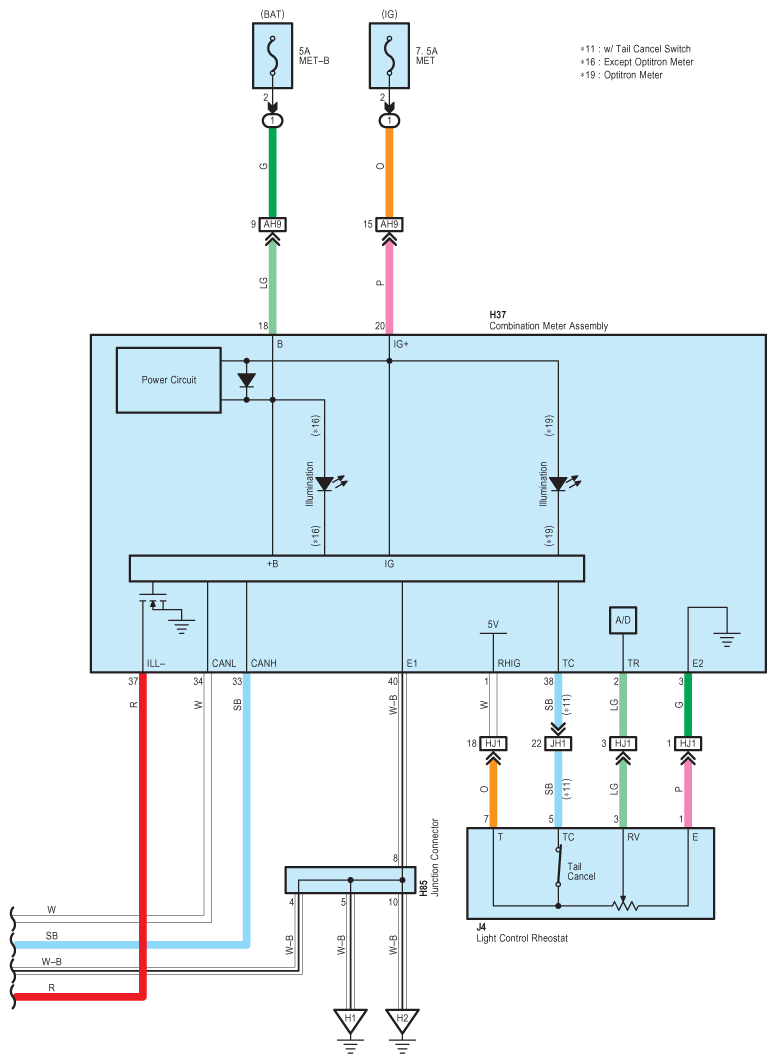

Fig 9: Illumination - Circuit Diagram (9 Of 9)

G07577720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
