Horn System: Notes

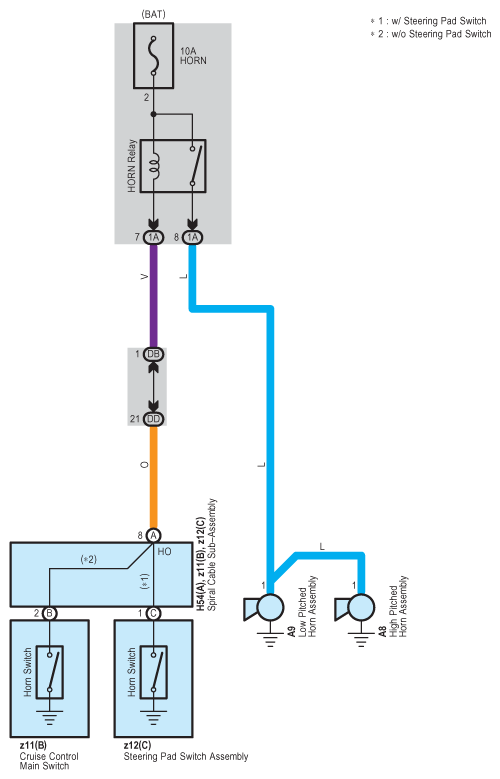

Fig 1: Horn - Circuit Diagram
G07577867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
