Headlight Cleaner System: Notes

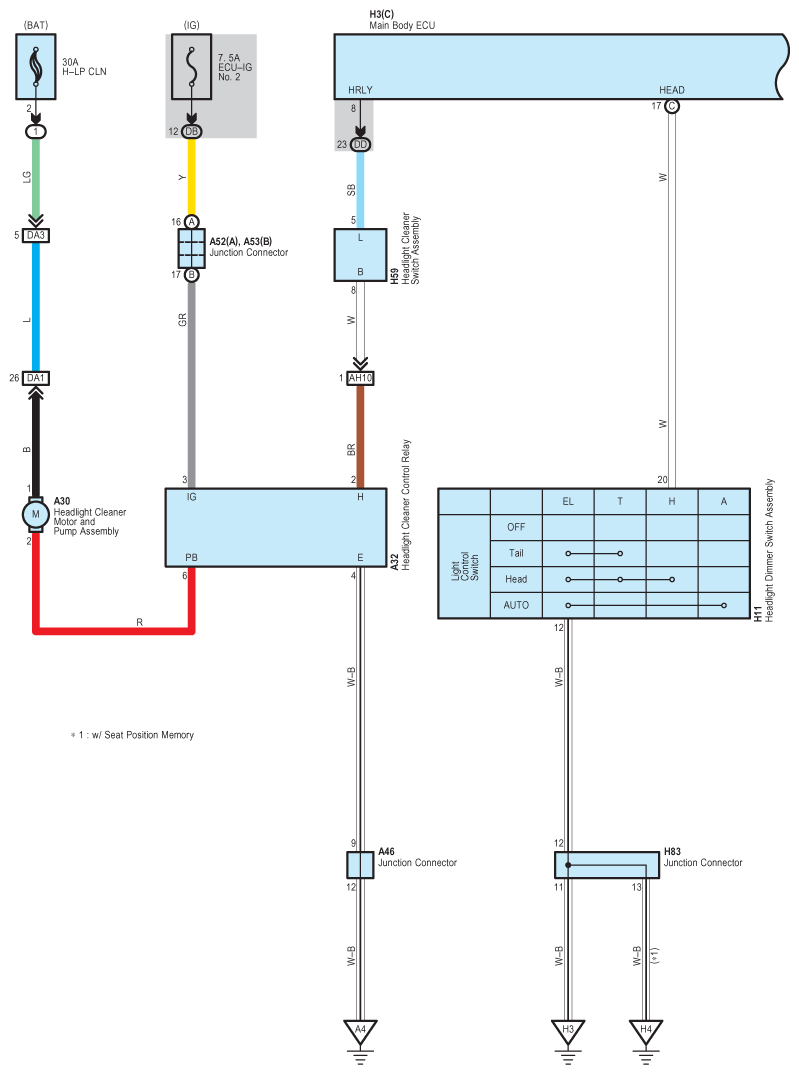

Fig 1: Headlight Cleaner - Circuit Diagram (1 Of 2)
G07577873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

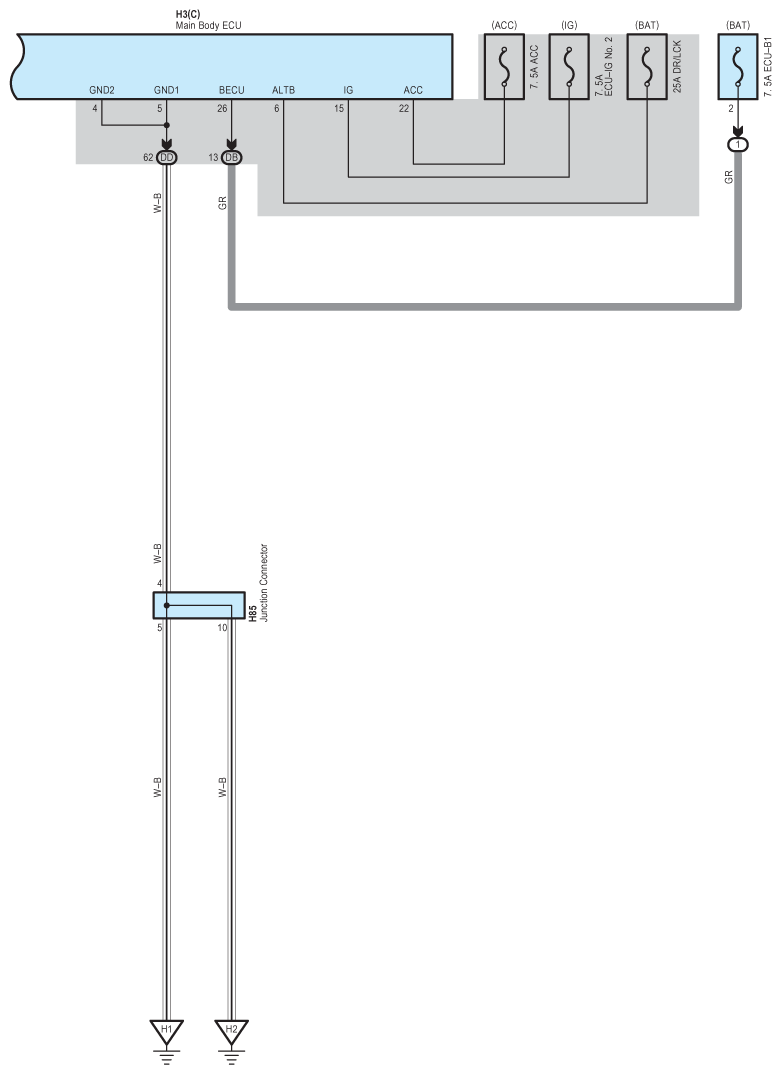

Fig 2: Headlight Cleaner - Circuit Diagram (2 Of 2)
G07577874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
