Front Window Deicer System: Notes

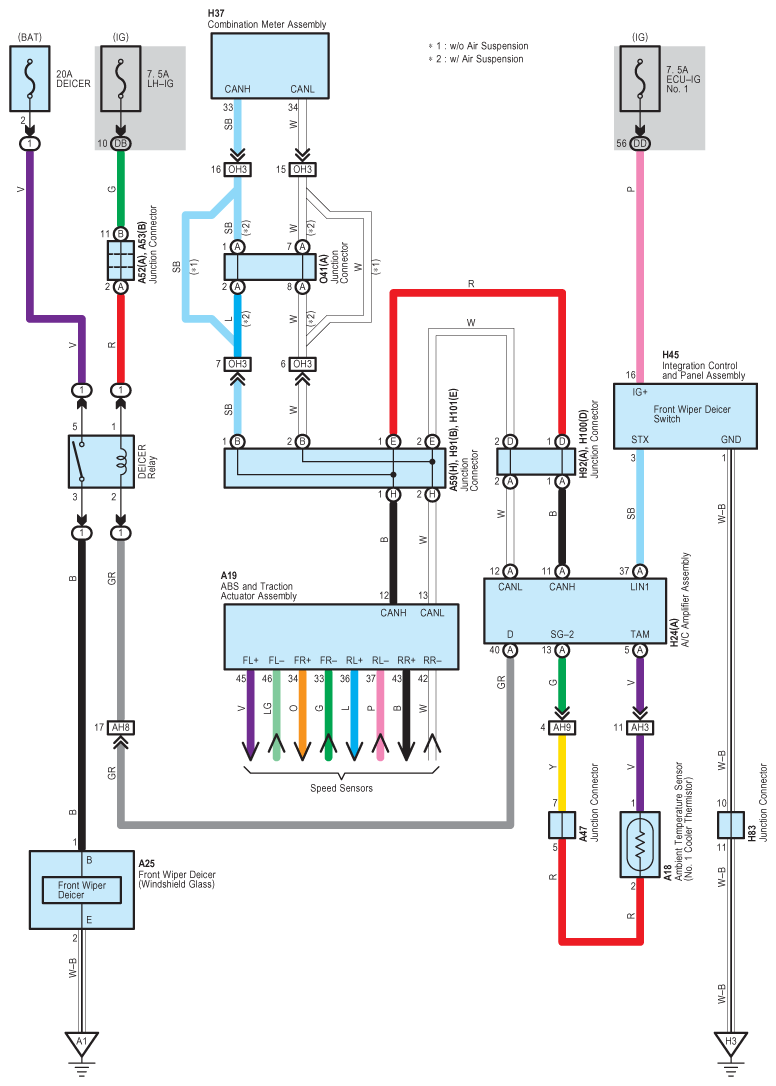

Fig 1: Front Window Deicer - Circuit Diagram

G07577875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
