Electronic Modulated Air Suspension System: Notes

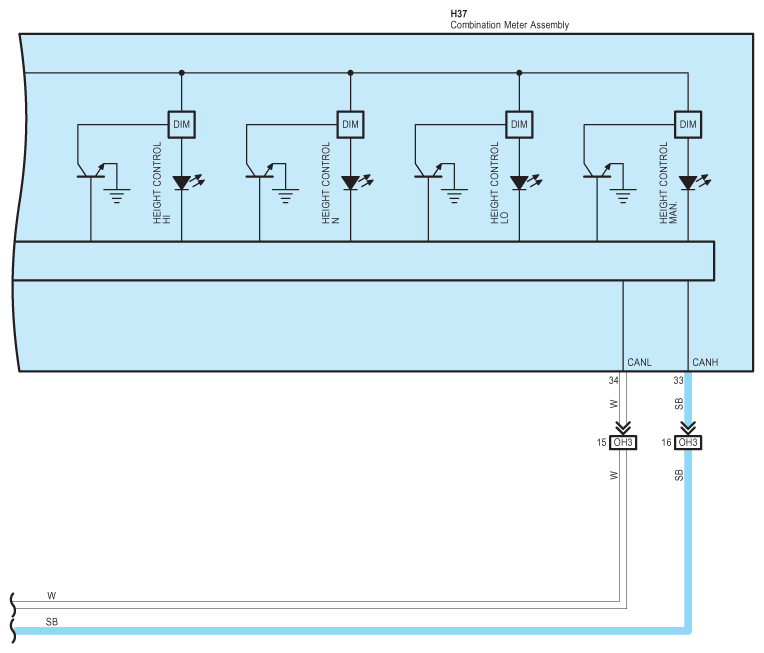

Fig 1: Electronic Modulated Air Suspension - Circuit Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

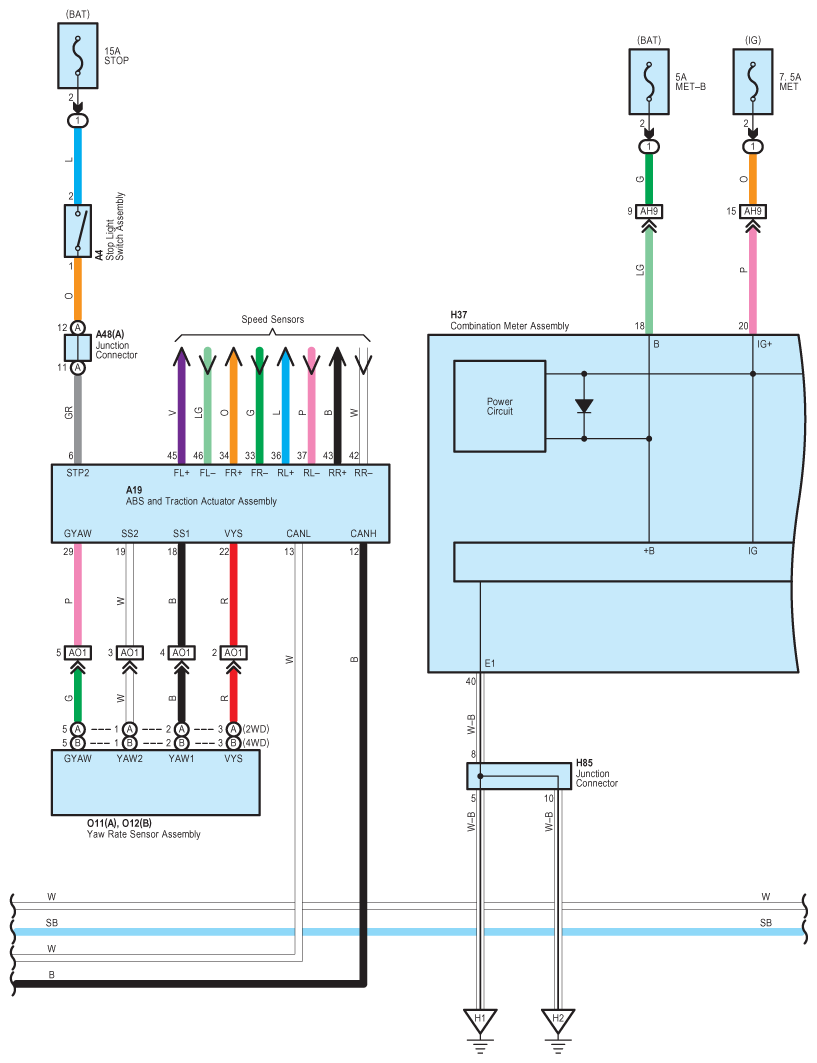

Fig 2: Electronic Modulated Air Suspension - Circuit Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

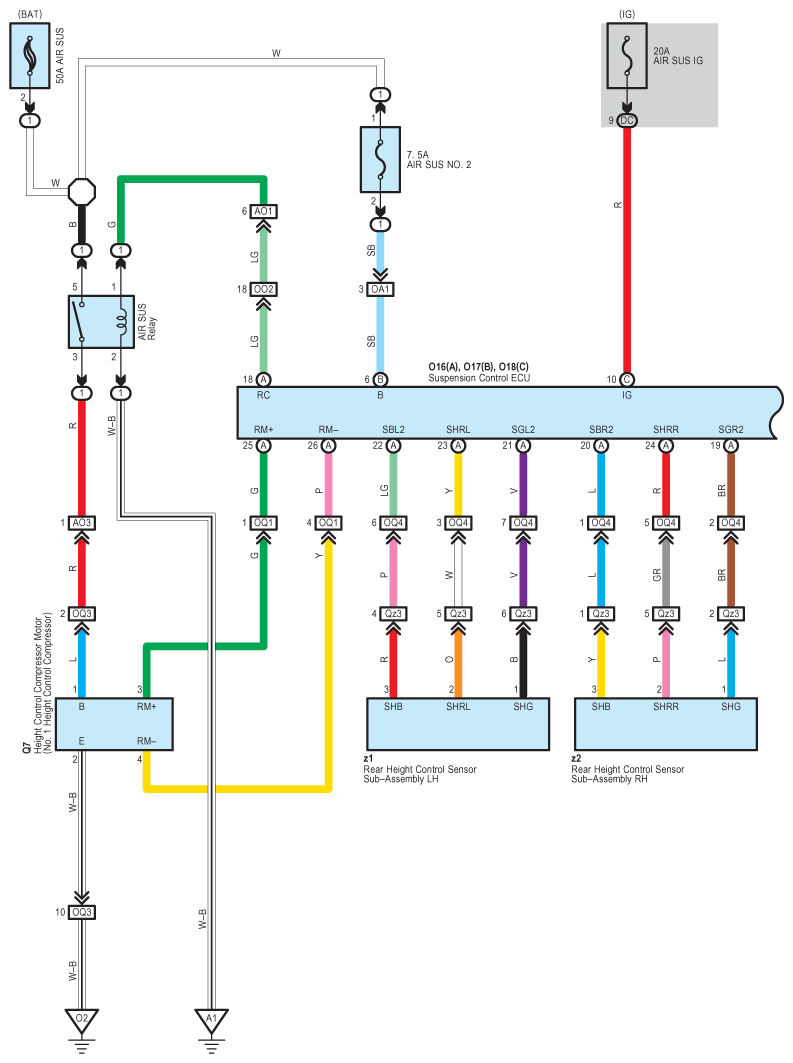

Fig 3: Electronic Modulated Air Suspension - Circuit Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

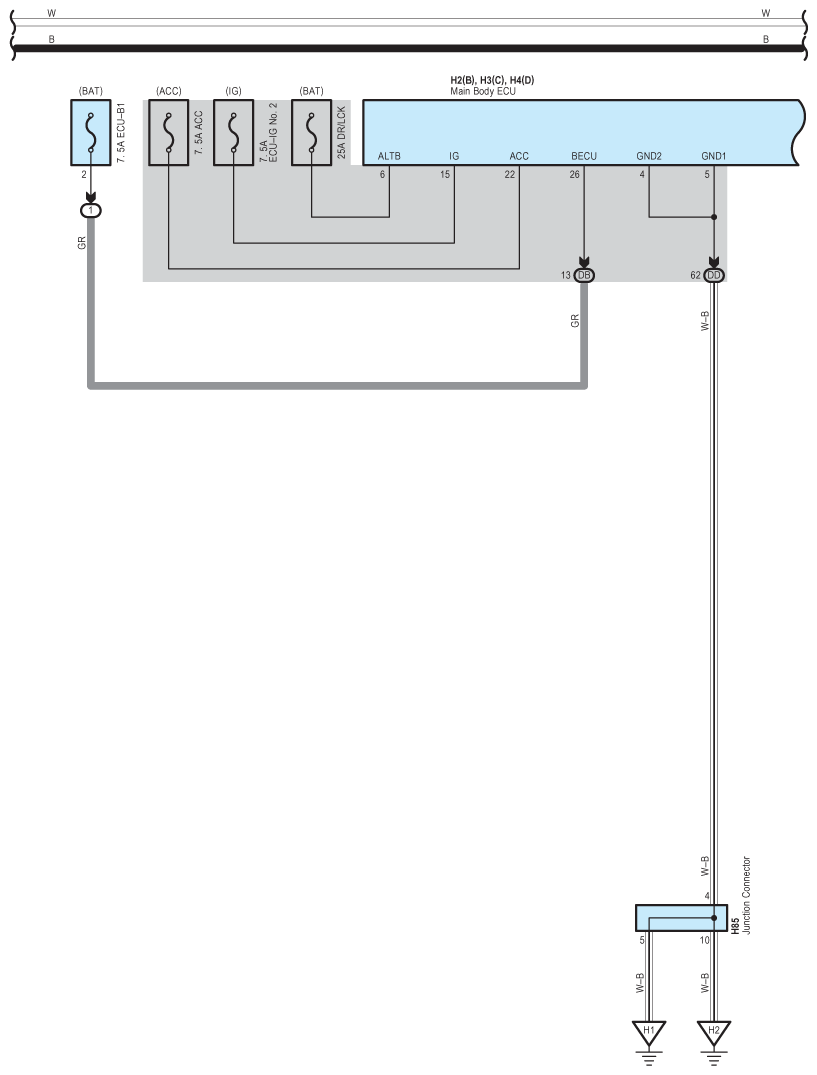

Fig 4: Electronic Modulated Air Suspension - Circuit Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

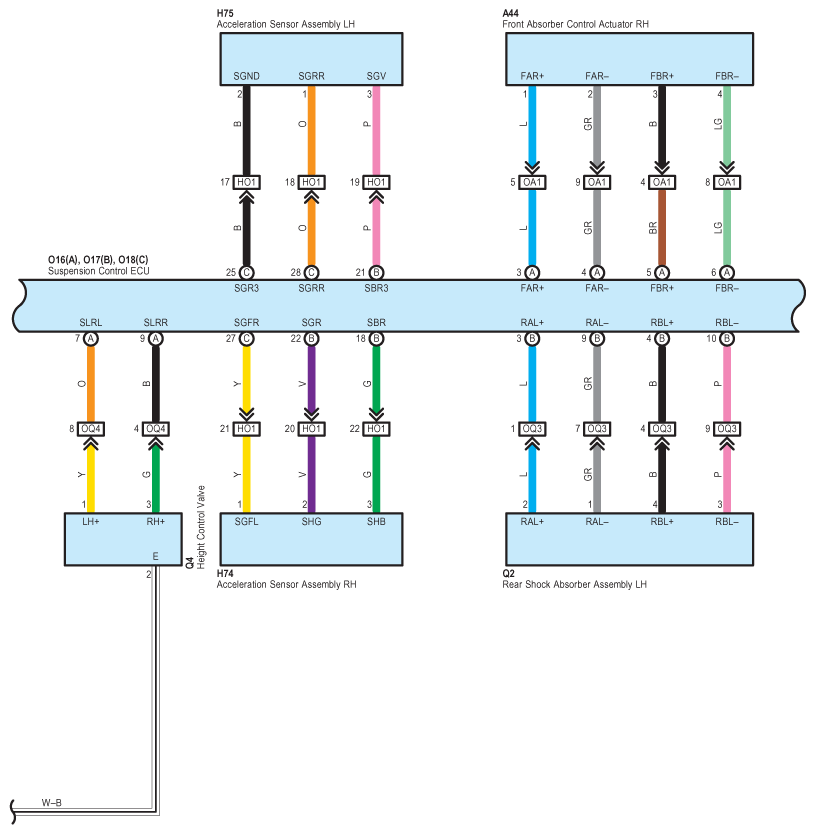

Fig 5: Electronic Modulated Air Suspension - Circuit Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

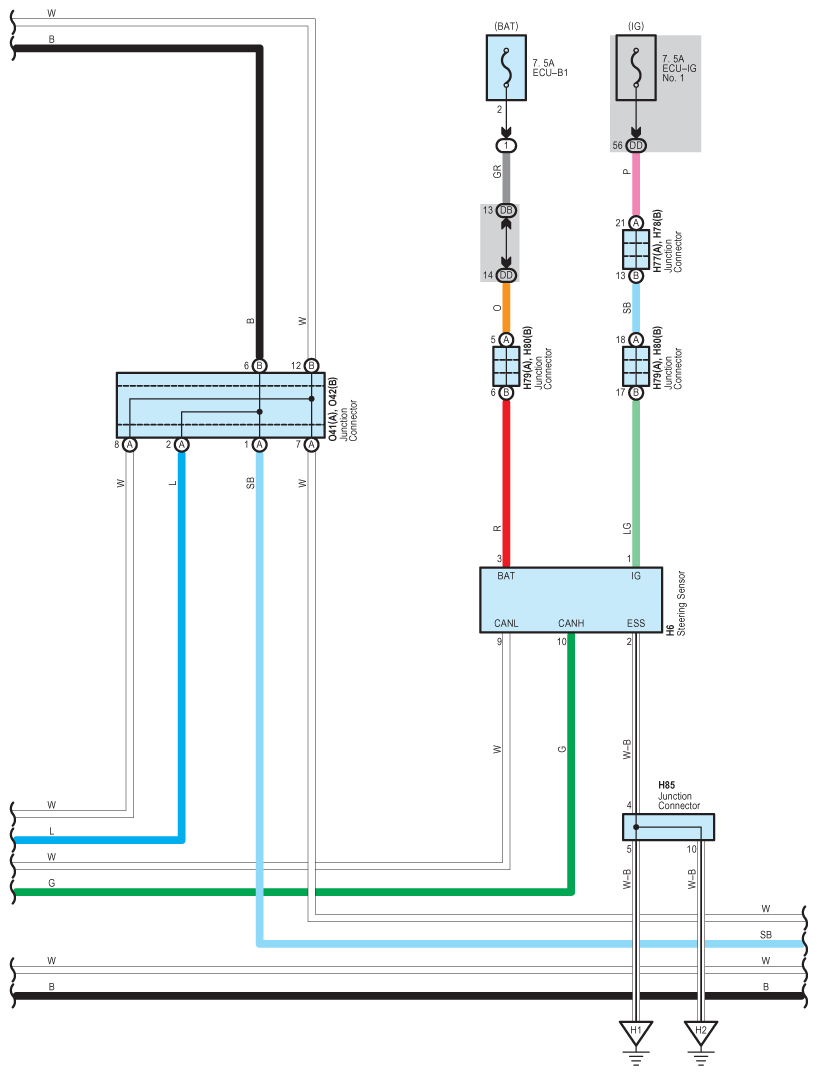

Fig 6: Electronic Modulated Air Suspension - Circuit Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

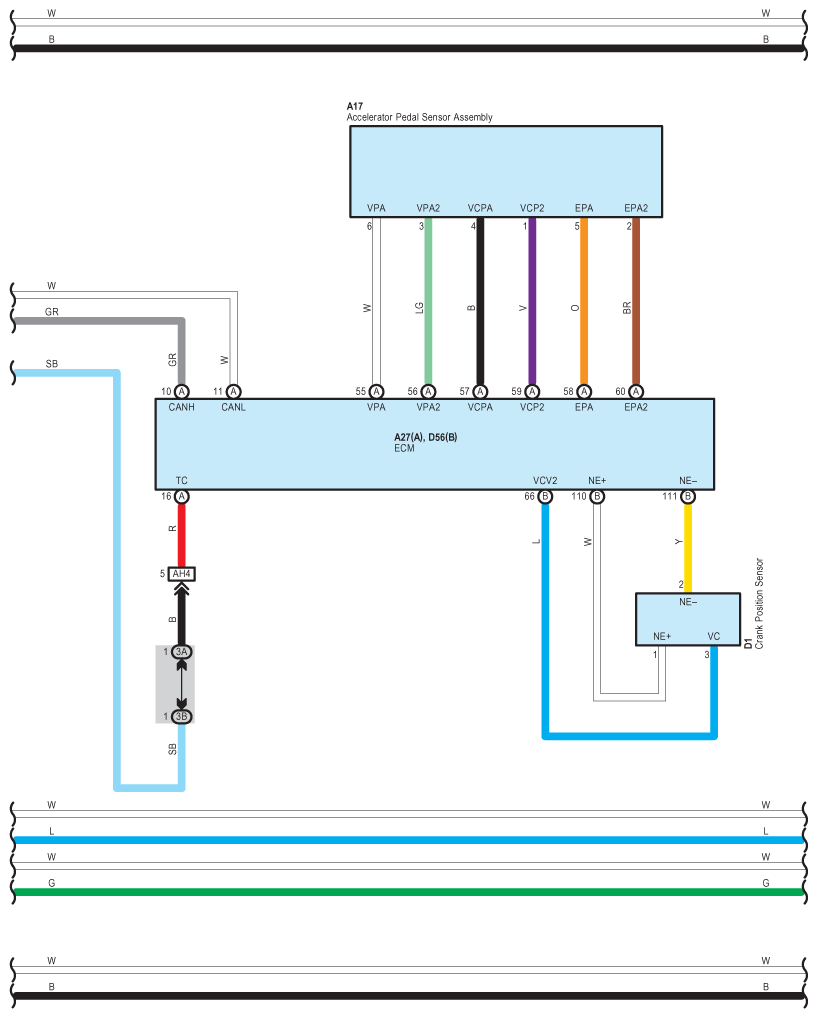

Fig 7: Electronic Modulated Air Suspension - Circuit Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

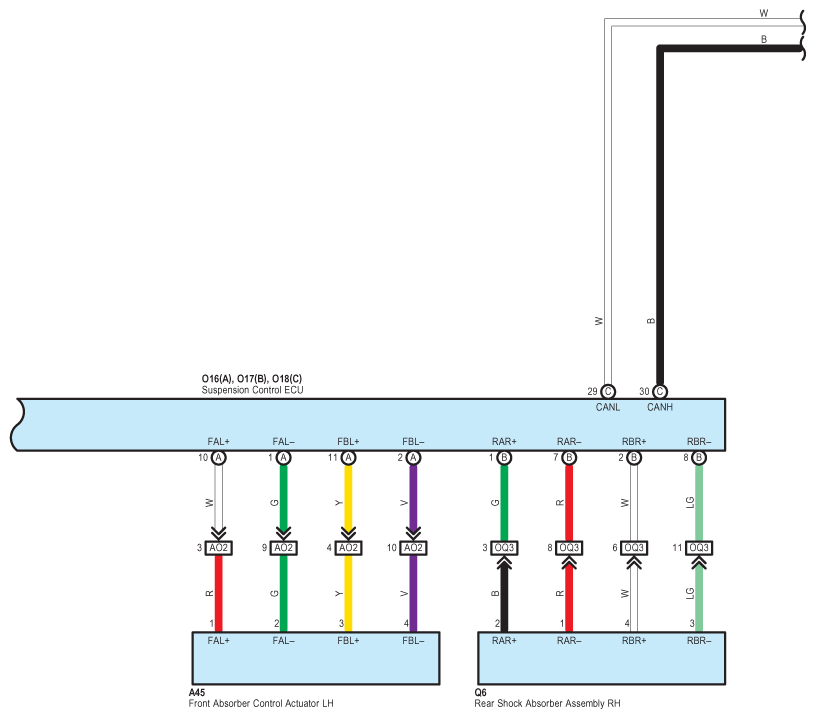

Fig 8: Electronic Modulated Air Suspension - Circuit Diagram (8 Of 11)

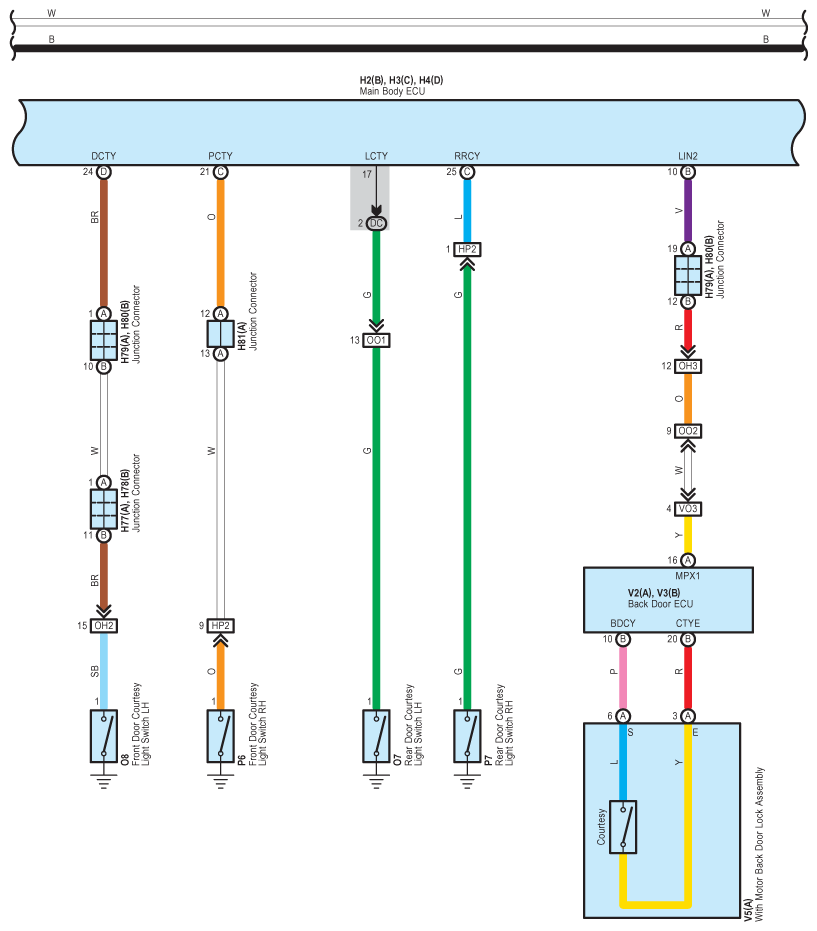

Fig 9: Electronic Modulated Air Suspension - Circuit Diagram (9 Of 11)

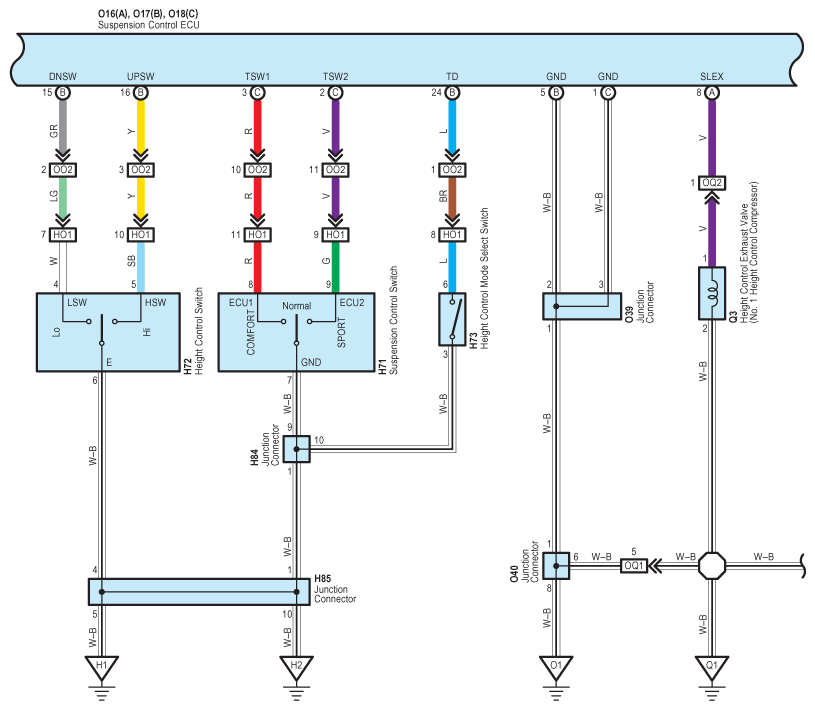

Fig 10: Electronic Modulated Air Suspension - Circuit Diagram (10 Of 11)

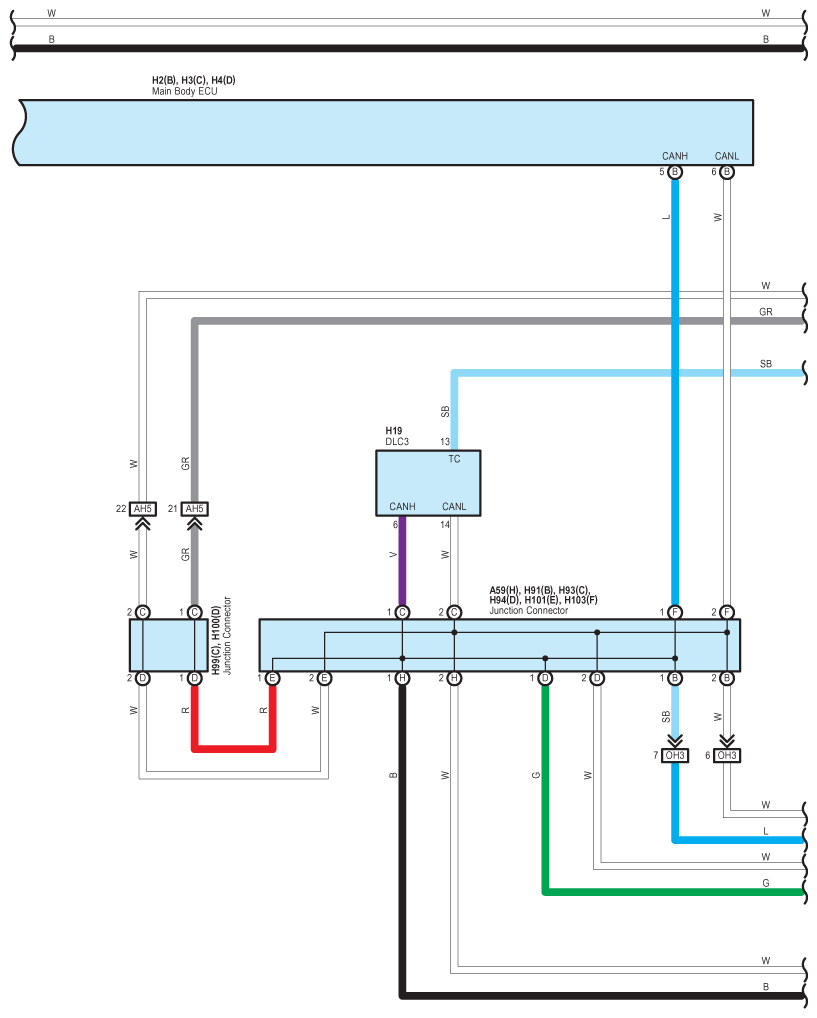

Fig 11: Electronic Modulated Air Suspension - Circuit Diagram (11 Of 11)
