Dynamic Radar Cruise Control System for 2UZ-FE: Notes

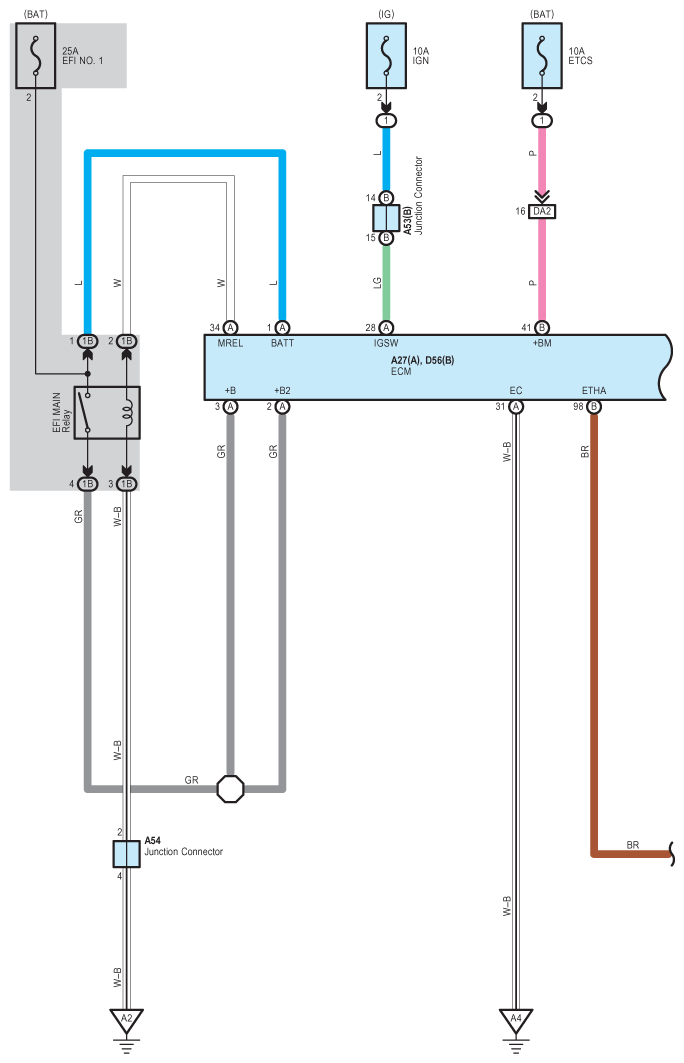

Fig 1: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (1 Of 10)
G07577787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

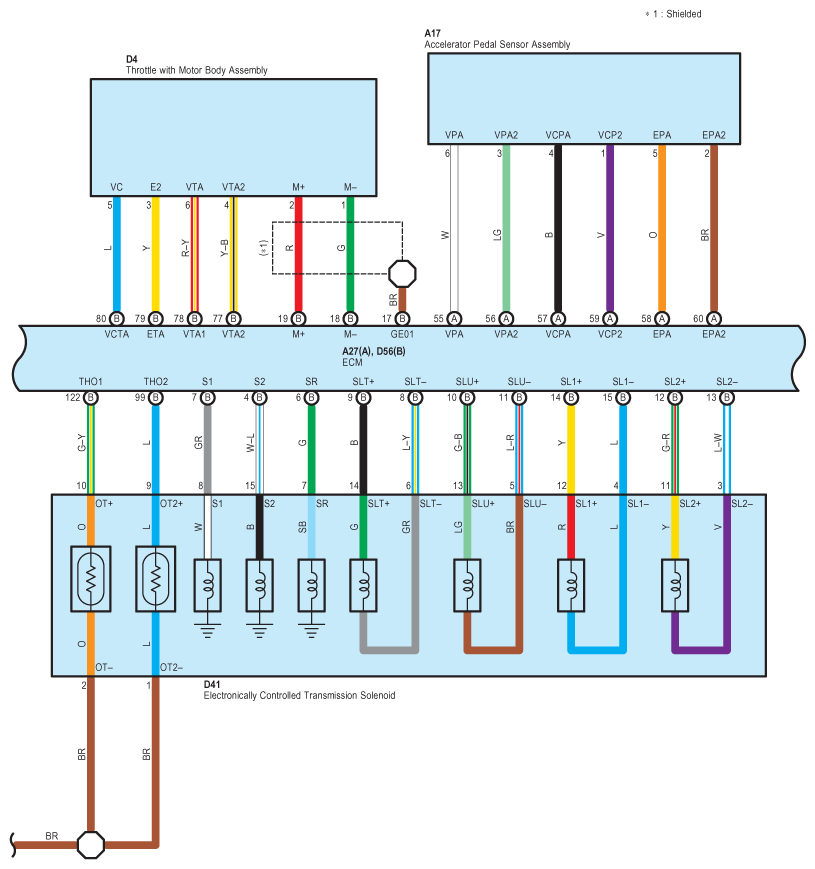

Fig 2: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (2 Of 10)
G07577788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

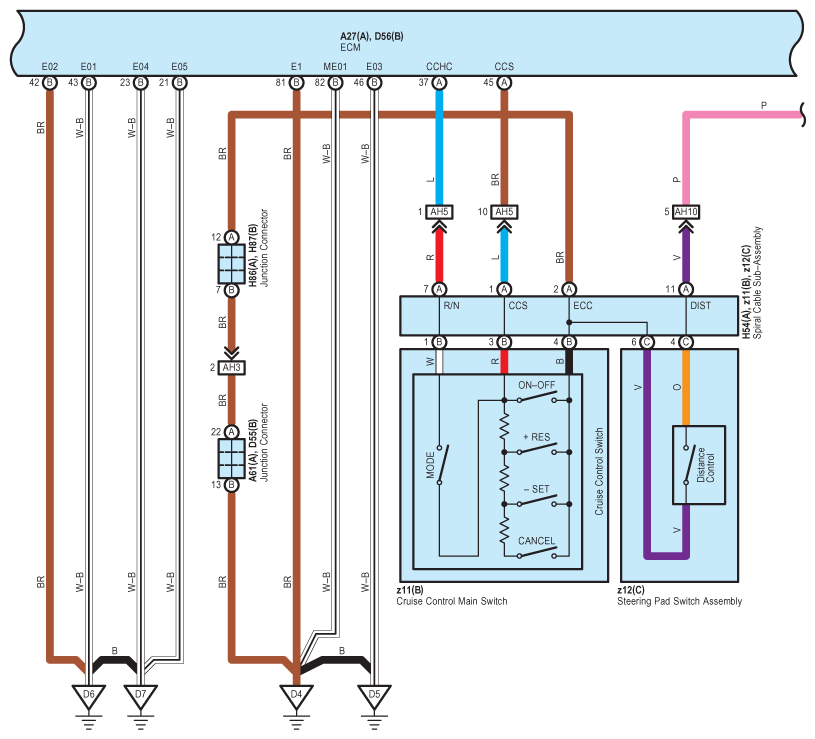

Fig 3: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (3 Of 10)
G07577789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

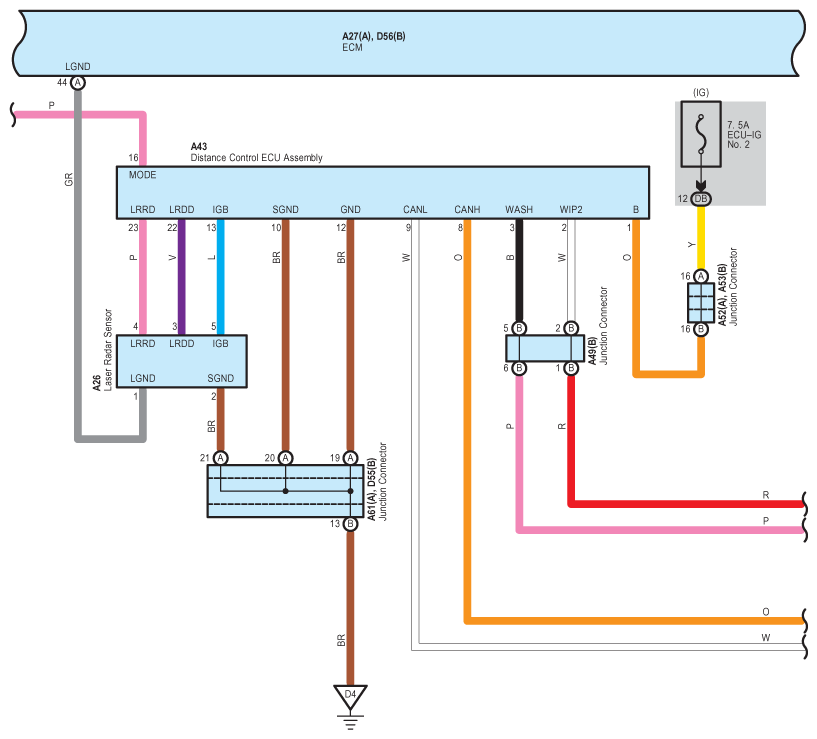

Fig 4: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (4 Of 10)
G07577790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

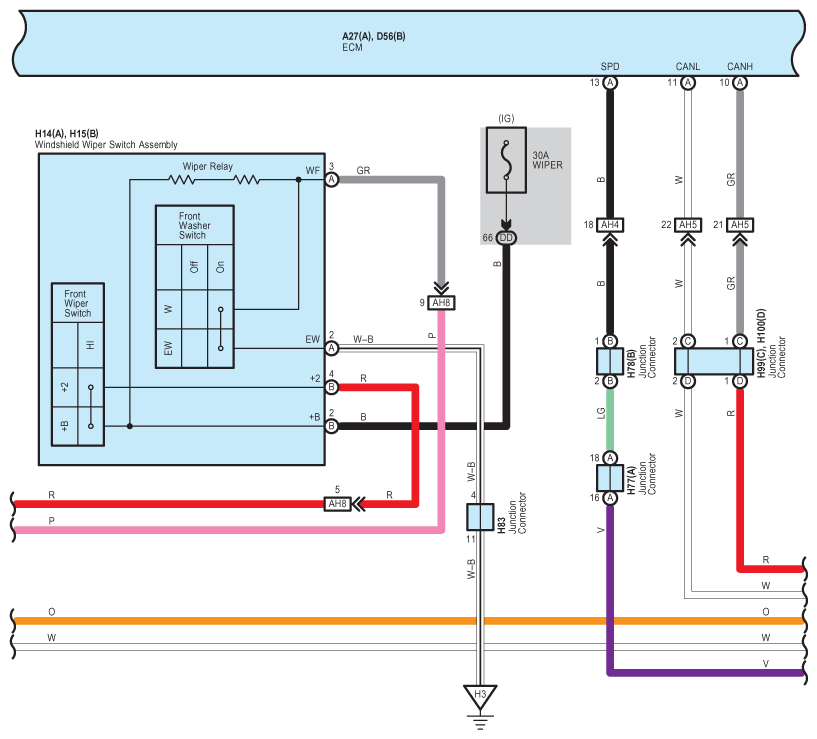

Fig 5: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (5 Of 10)
G07577791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

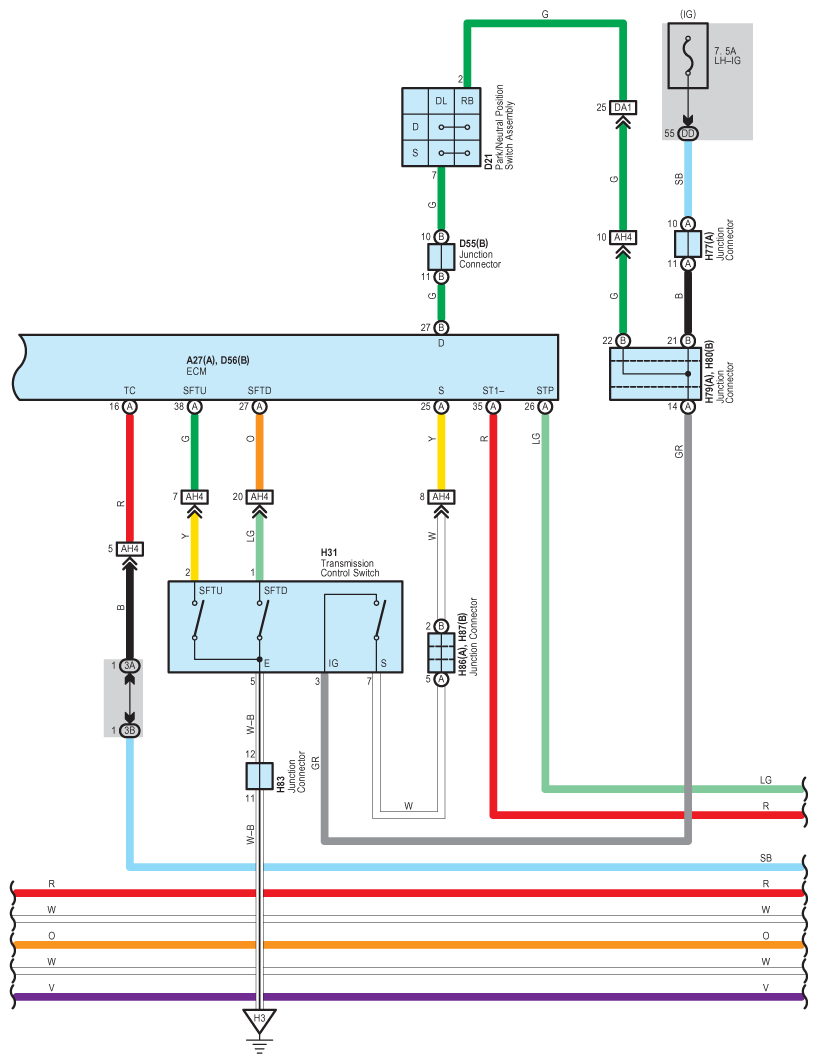

Fig 6: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (6 Of 10)
G07577792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

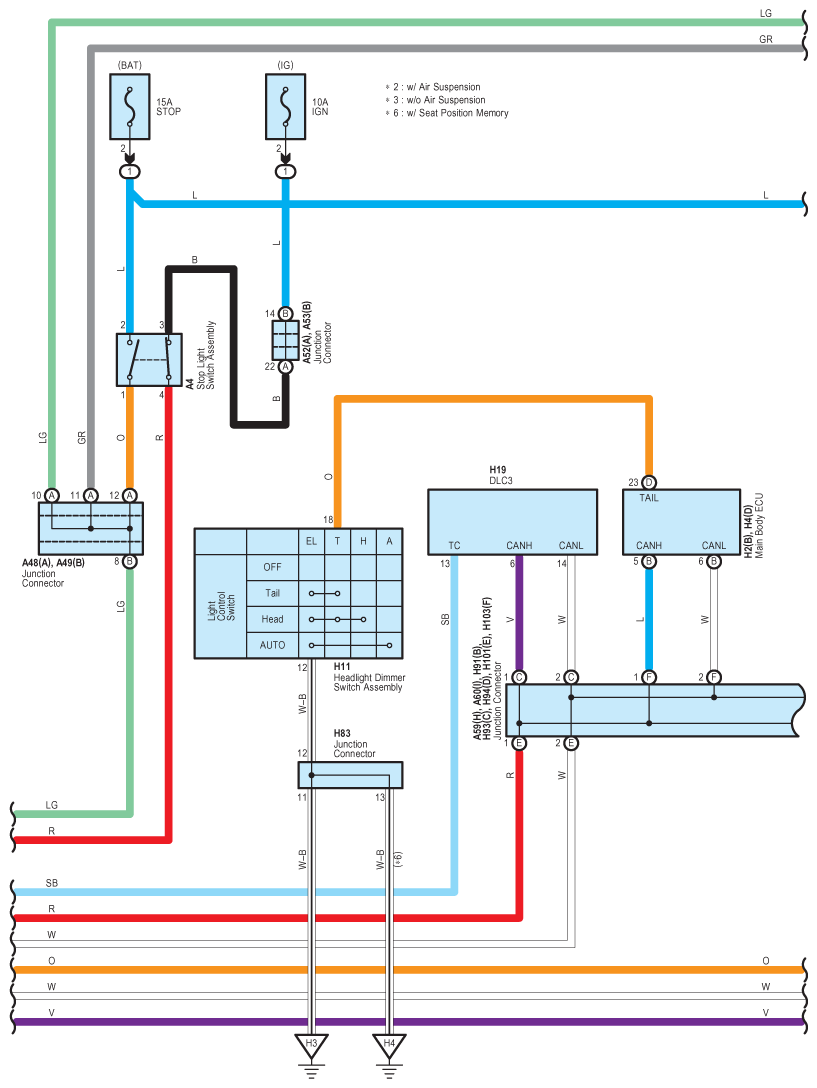

Fig 7: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (7 Of 10)
G07577793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

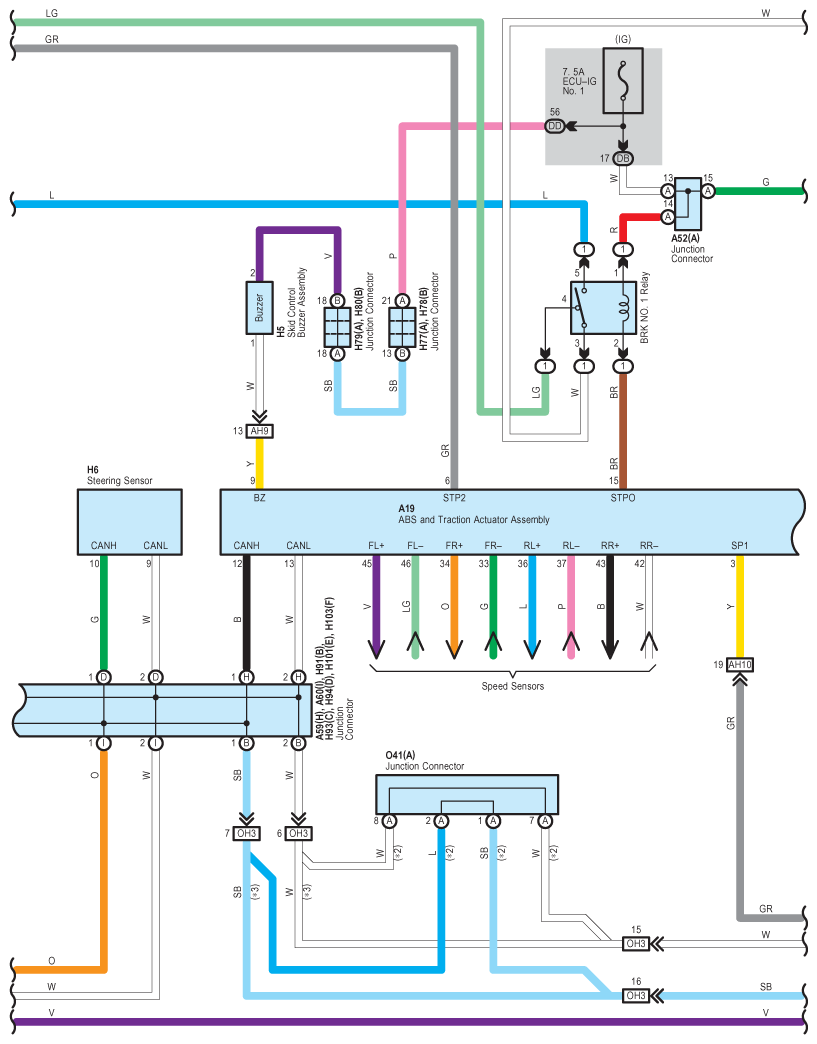

Fig 8: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (8 Of 10)
G07577794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

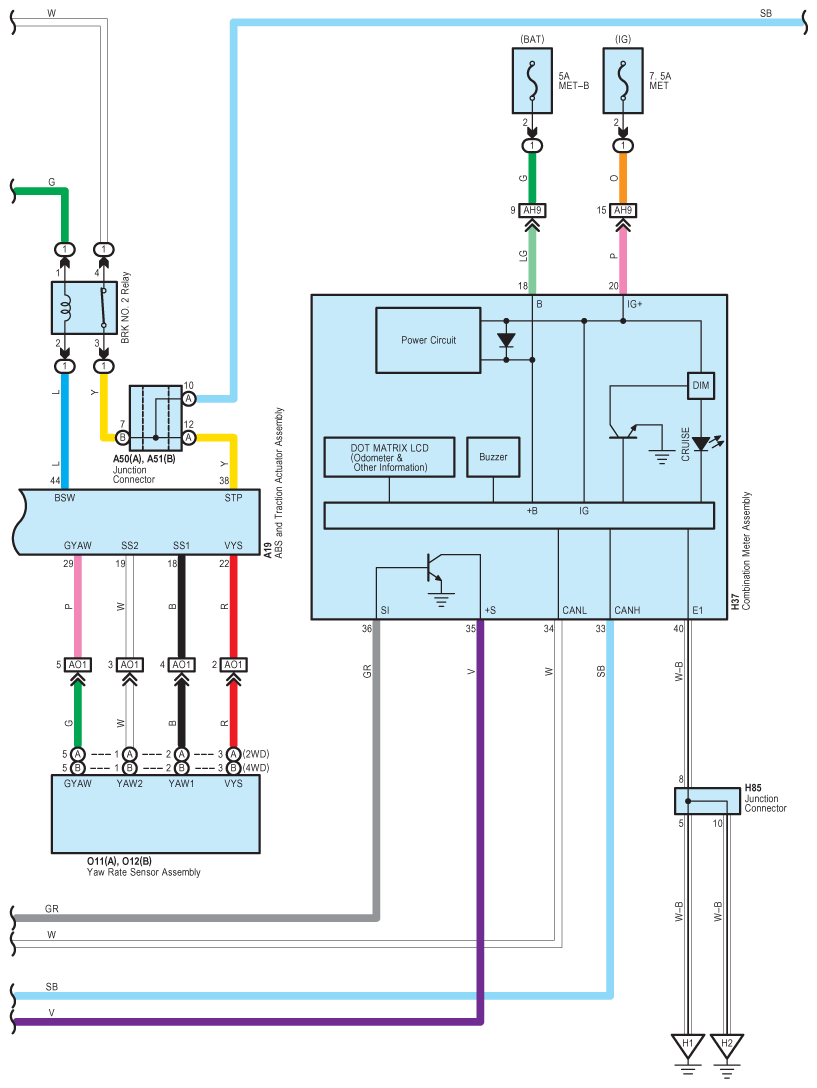

Fig 9: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (9 Of 10)
G07577795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

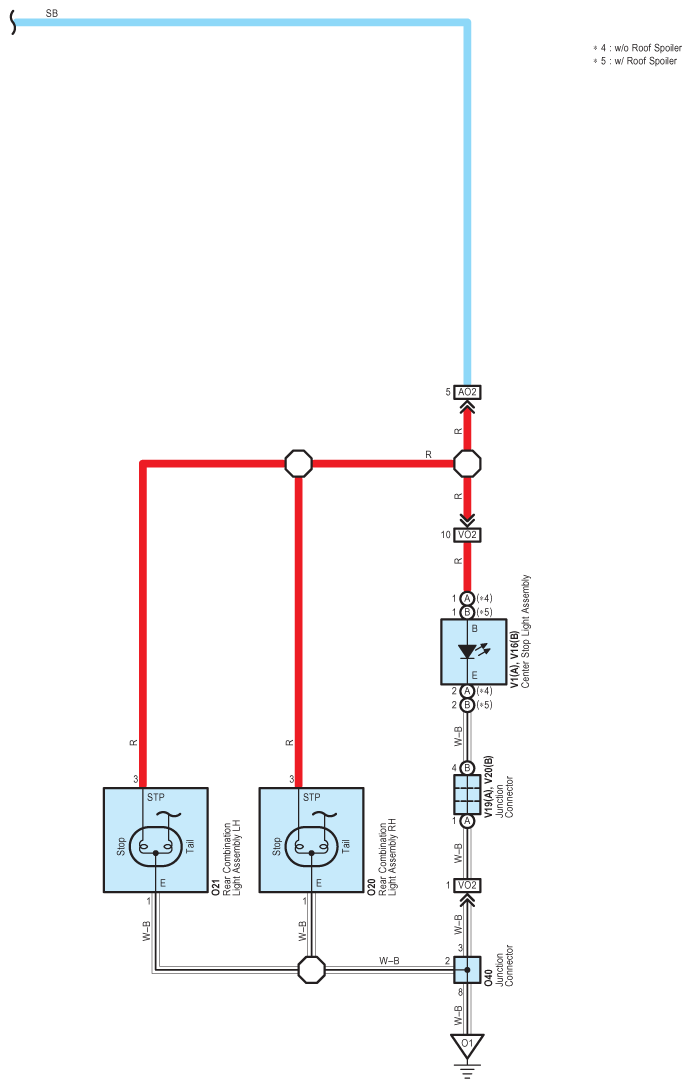

Fig 10: Dynamic Radar Cruise Control For 2UZ-FE - Circuit Diagram (10 Of 10)
G07577796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
