Cruise Control System for 2UZ-FE: Notes

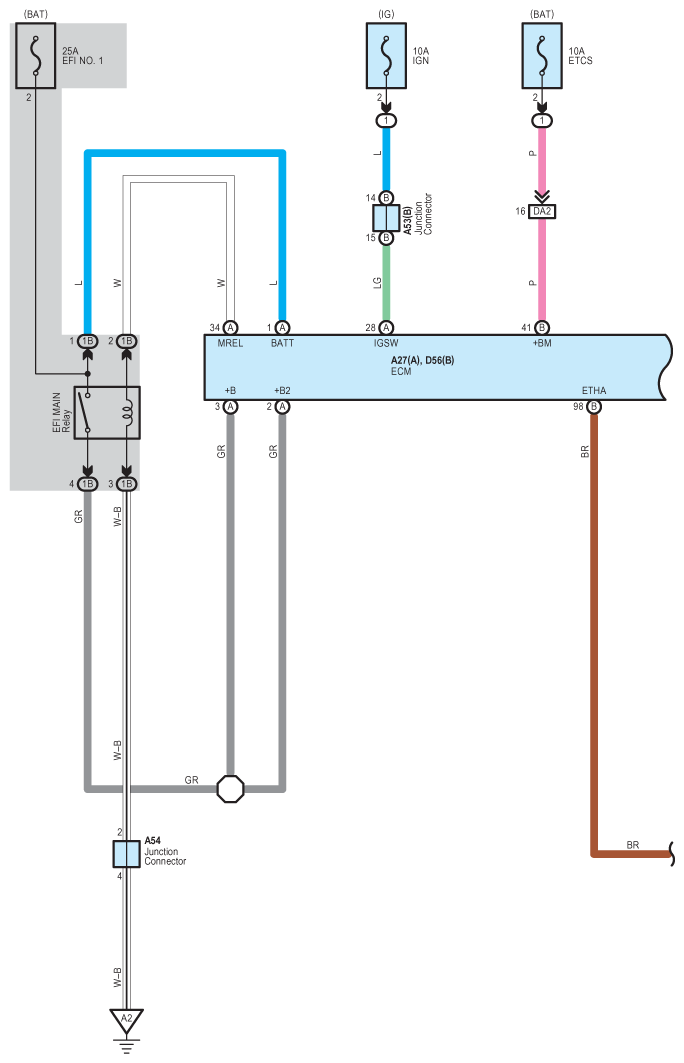

Fig 1: Cruise Control For 2UZ-FE - Circuit Diagram (1 Of 6)
G07577803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

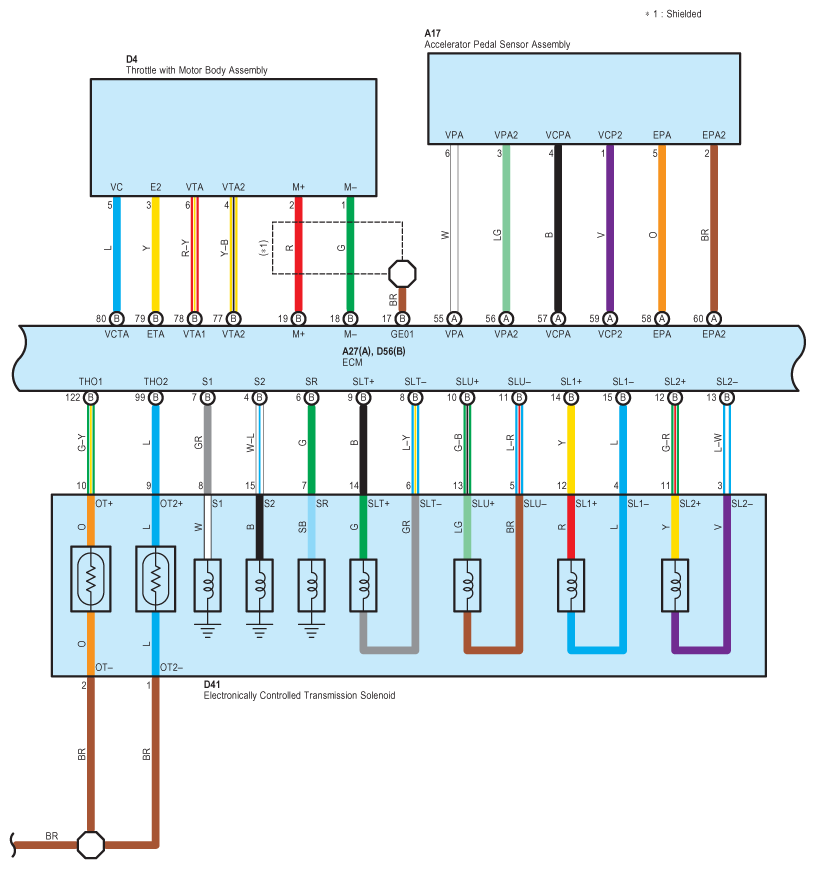

Fig 2: Cruise Control For 2UZ-FE - Circuit Diagram (2 Of 6)
G07577804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

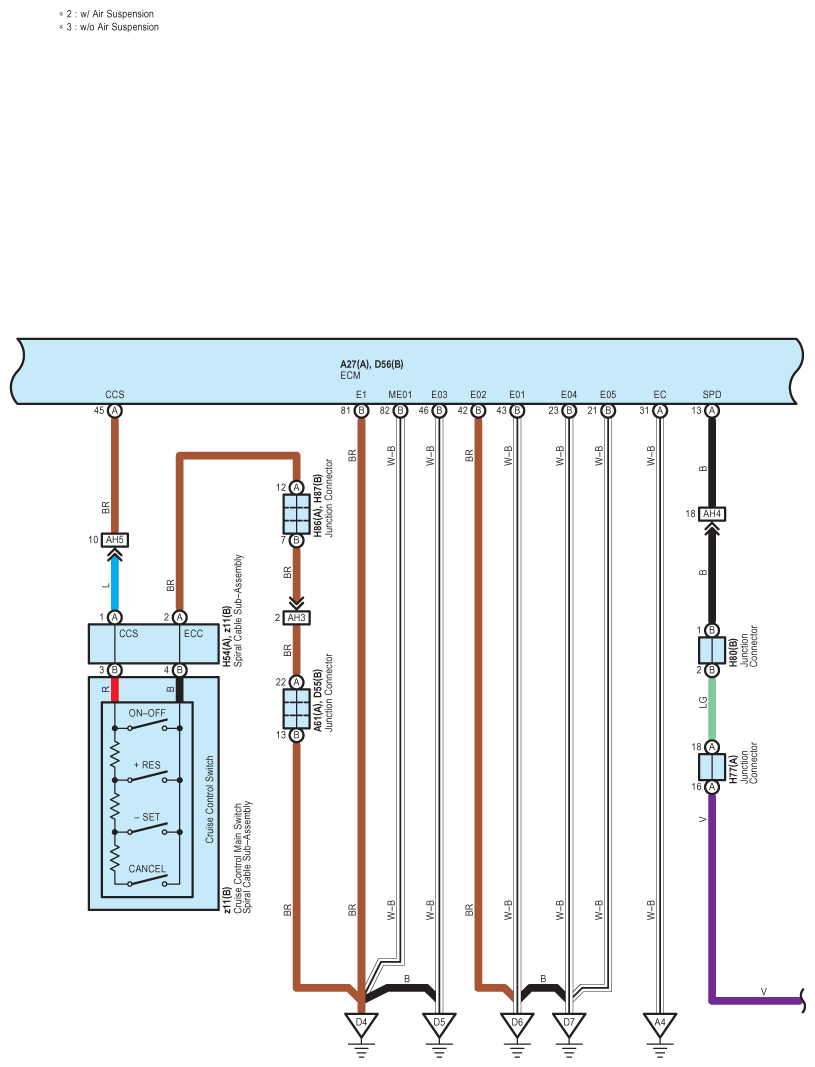

Fig 3: Cruise Control For 2UZ-FE - Circuit Diagram (3 Of 6)
G07577805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

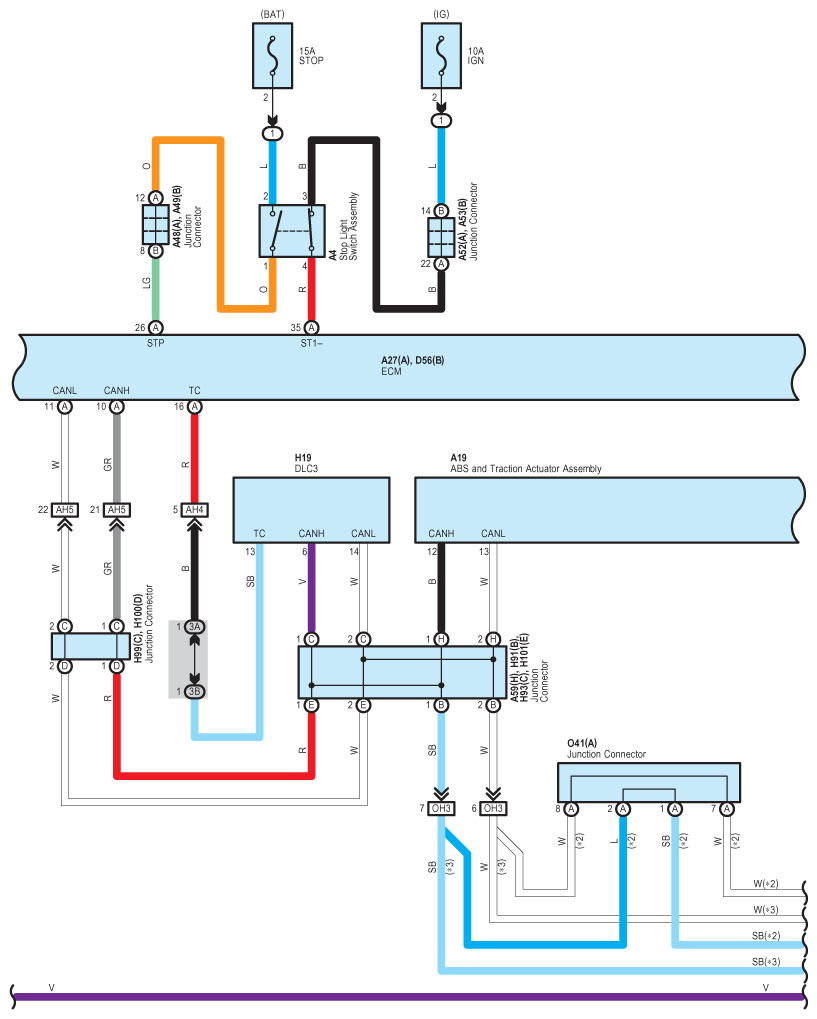

Fig 4: Cruise Control For 2UZ-FE - Circuit Diagram (4 Of 6)
G07577806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

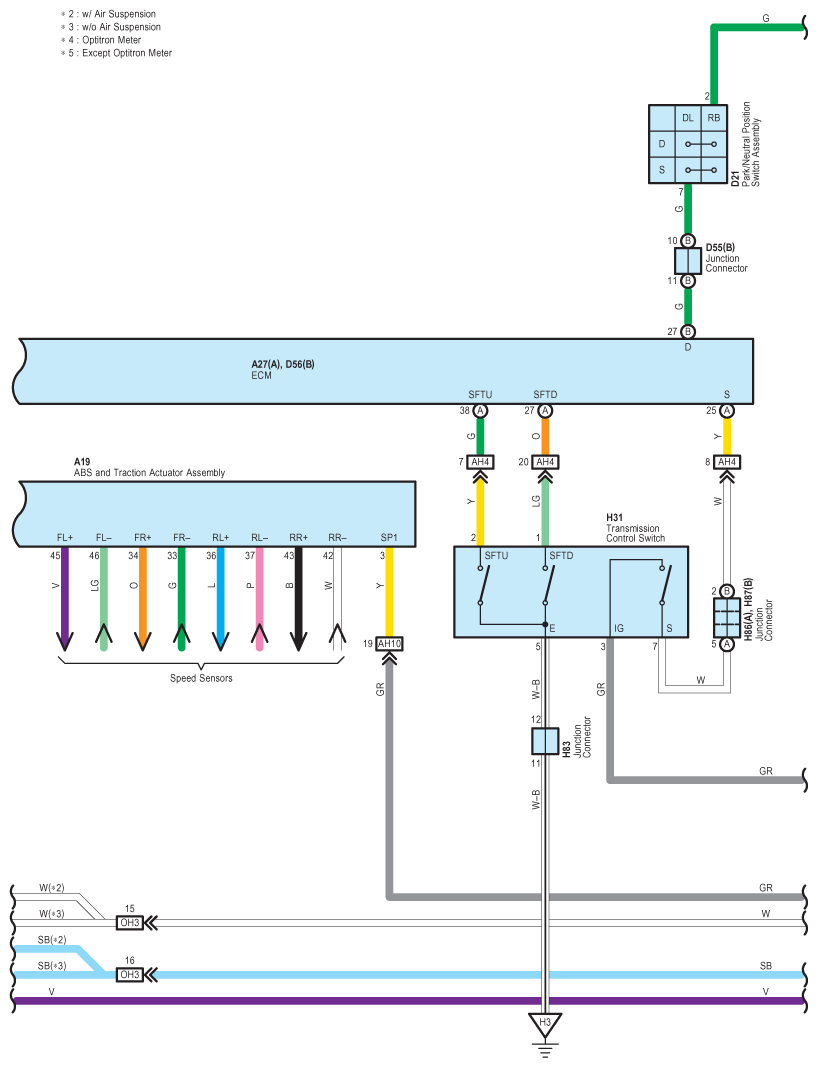

Fig 5: Cruise Control For 2UZ-FE - Circuit Diagram (5 Of 6)
G07577807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

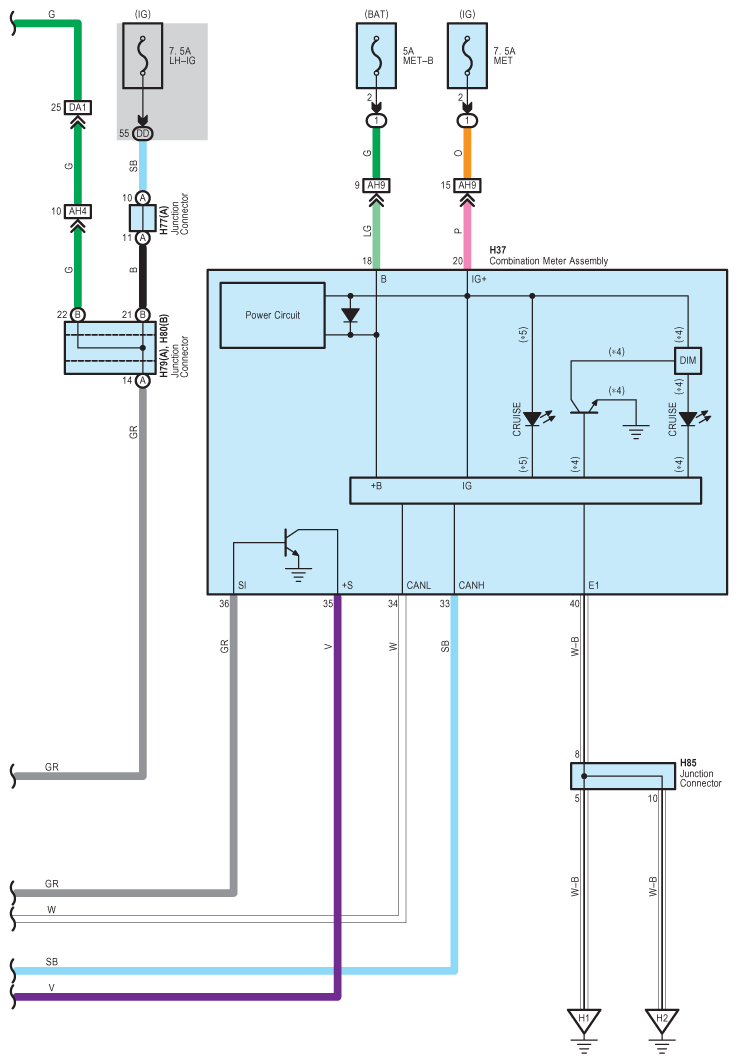

Fig 6: Cruise Control For 2UZ-FE - Circuit Diagram (6 Of 6)
G07577808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
