Charging System: Notes

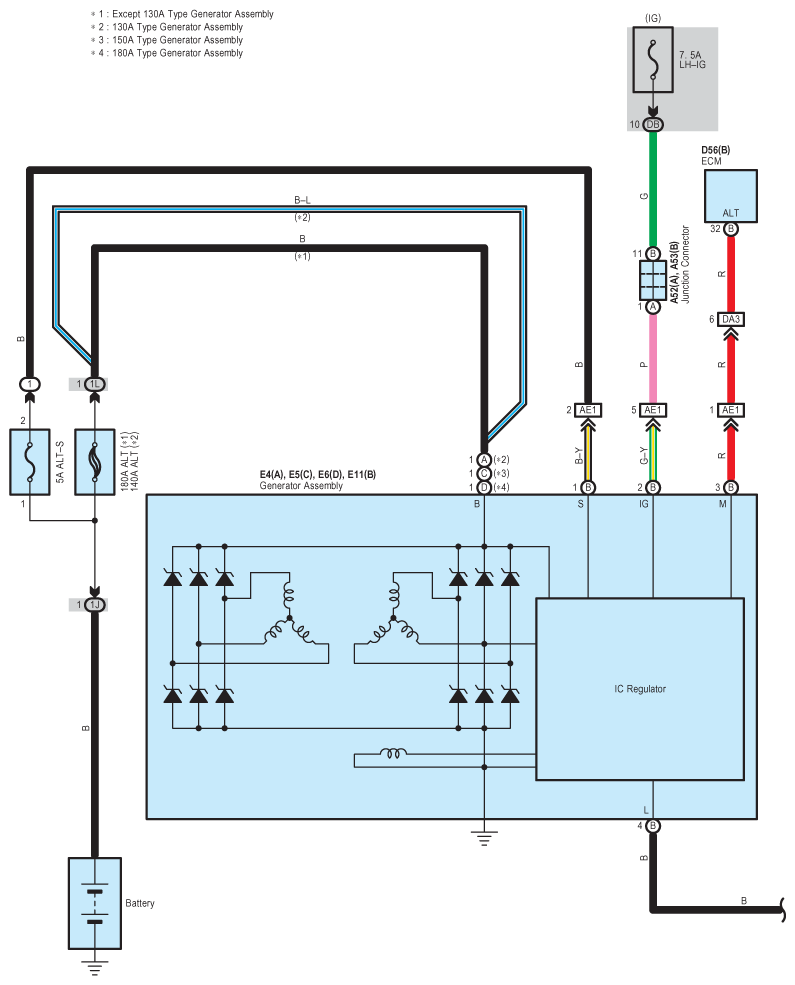

Fig 1: Charging - Circuit Diagram (1 Of 2)
G07577665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

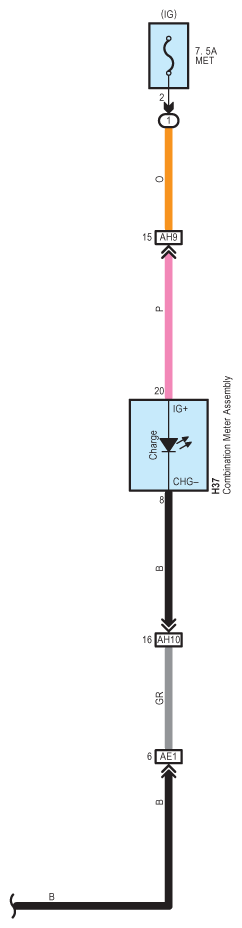

Fig 2: Charging - Circuit Diagram (2 Of 2)
G07577666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
