Windshield Glass: Installation

1. Using a scraper, remove the damaged stoppers, dam and adhesive from the windshield glass.
   NOTE: Be careful not to damage the windshield glass.
   Fig 1: Removing Damaged Stoppers, Dam And Adhesive From Windshield Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clean the outer edge of the windshield glass with a non-residue solvent.
   NOTE:

   • Do not touch the windshield glass surface after cleaning it.
   • Even if using a new windshield glass, clean the windshield glass with a non-residue solvent.

1. Clean and shape the contact surface of the vehicle body.
   1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
      NOTE: Do not damage the vehicle body.
      Fig 2: Identifying Rough Adhesive On Contact Surface Of Vehicle Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Leave as much adhesive on the vehicle body as possible.

   2. Clean the contact surface of the vehicle body with a shop rag or piece of cloth saturated with cleaner.

      HINT:

      Clean the vehicle body even if all the adhesive has been removed.

1. Using a brush or sponge, coat the application area of the No. 2 stoppers with Primer G.
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover primer.

   HINT:

   If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

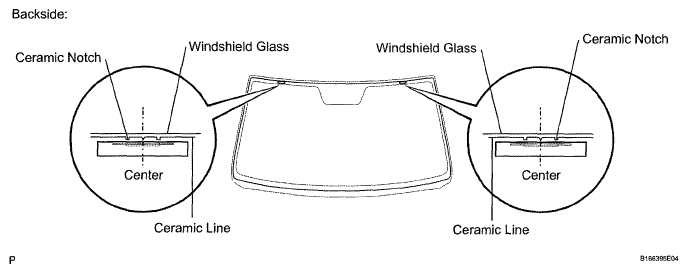

2. Install 2 new No. 2 stoppers onto the windshield glass, as shown in the illustration.
   Fig 3: Identifying New No. 2 Stoppers Onto Windshield Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Only 2-piece type No. 2 stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

1. Install 2 new No. 1 stoppers to the vehicle body, as shown in the illustration.

   HINT:

   Only 2-piece type No. 1 stoppers are supplied. Use the 2-piece type stoppers even if a 1 -piece type was used.

   Fig 4: Installing New No. 1 Stoppers To Vehicle Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brush or sponge, coat the application area of adhesive dam with Primer G.
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover primer.

   HINT:

   If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

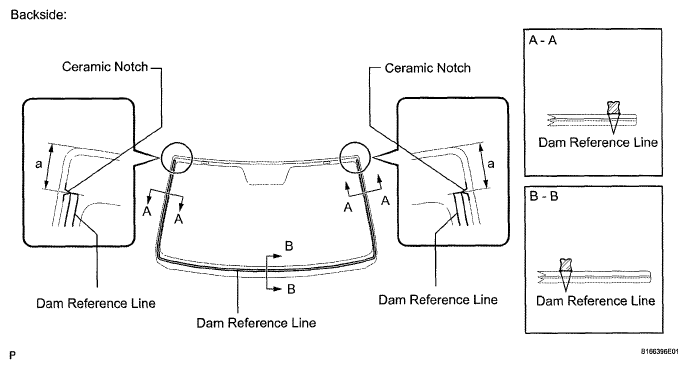

2. Install a new adhesive dam onto the windshield glass, as shown in the illustration.
   Fig 5: Identifying New Adhesive Dam Onto Windshield Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Dimension

   STANDARD DIMENSION CHART



   Area	Dimension
   a	29.2 mm (0.417 in.)

   NOTE: Install the new adhesive dam along the ceramic notches.

1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
   NOTE:

   • Allow the primer to dry for 3 minutes or more.
   • Throw away any leftover primer.
   • Do not apply too much primer.
2. Install the windshield outside upper molding, as shown in the illustration.
   Fig 6: Coating Edge Of Glass And Contact Surface With Primer G

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not drive the vehicle for the amount of time written in the table below.

   Usage Time Frame

   TIME FRAME TEMPERATURE CHART



   Temperature	Usage Time Frame
   35°C (95°F)	15 minutes
   20°C (68°F)	1 hour 40 minutes
   55C (41 °F)	8 hours

1. Position the windshield glass.
   1. Using suction cups, place the windshield glass in the correct position.
   2. Check that the whole contact surface of the windshield glass rim is perfectly even.
   3. Align the matchmarks on the windshield glass and vehicle body.
      NOTE: Check that the windshield glass stoppers are attached to the vehicle body correctly.
      Fig 7: Placing Matchmarks On Windshield Glass And Vehicle Body On Locations Indicated

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brush, coat the installation surface on the vehicle body with Primer M.
   NOTE:

   • Do not coat the adhesive with Primer M.
   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover primer.

   HINT:

   If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries

   Fig 8: Coating Installation Surface On Vehicle Body With Primer M

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

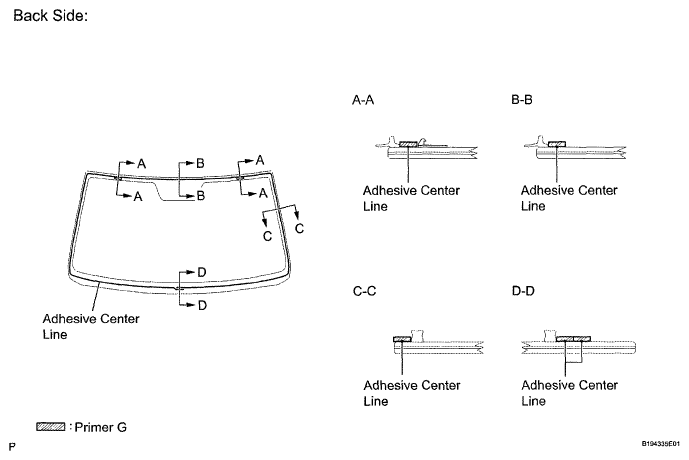

3. Using a brush or sponge, coat the application areas that still have adhesive attached with Primer G.
   Fig 9: Coating Application Areas Still Adhesive Attached With Primer G

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover primer.

   HINT:

   • Apply primer G onto the ceramic notches.
   • If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.
4. Apply adhesive to the glass.

   Adhesive: Toyota Genuine Windshield Glass Adhesive or equivalent

   1. Cut off the tip of the cartridge nozzle, as shown in the illustration.

      HINT:

      After cutting off the tip, use all adhesive within the time limit described in the table below.

      Fig 10: Cutting Off Tip Of Cartridge Nozzle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Usage Time Frame

      TIME FRAME TEMPERATURE CHART



      Temperature	Tack-free Time
      35°C (95°F)	15 minutes
      20°C (68°F)	1 hour and 40 minutes
      5°C (41 °F)	8 hours

   2. Load the sealer gun with a cartridge.

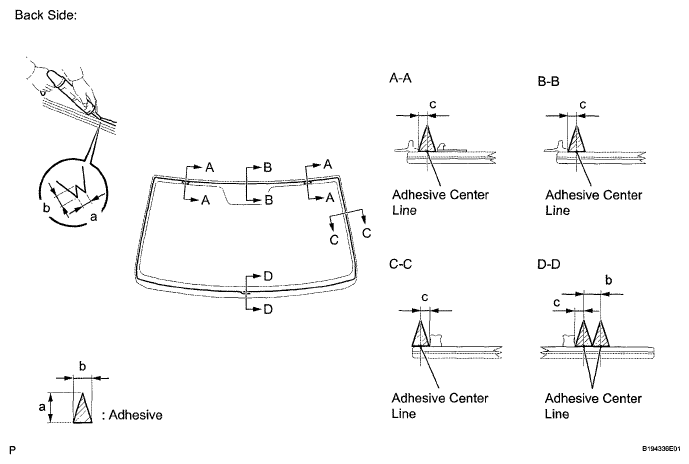

   3. Apply adhesive to the windshield glass, as shown in the illustration.
      Fig 11: Applying Adhesive To Windshield Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Dimension

      STANDARD DIMENSION CHART



      Area	Dimension
      a	12.0 mm (0.472 in.)
      b	8.0 mm (0.315 in.)
      c	4.0 mm (0.157 in.)

5. Install the windshield glass.
   1. Using suction cups, position the windshield glass so that the matchmarks are aligned, and press it in gently along the rim.
      NOTE:

      • Check that the windshield glass stoppers are attached to the vehicle body correctly.
      • Check the clearance between the vehicle body and windshield glass.
   2. Lightly press the front surface of the windshield glass to ensure a close fit.
      Fig 12: Placing Matchmarks On Windshield Glass And Vehicle Body On Locations Indicated

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. If necessary, use a scraper to correct the level or position of adhesive that has been applied.

      HINT:

      Apply adhesive onto the windshield glass rim.

   4. Hold the windshield glass using protective tape until applied adhesive hardens.
      Fig 13: Identifying Windshield, Adhesive And Dam

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not drive the vehicle within the time limits described in the table below.

      Minimum Time

      TIME AND TEMPERATURE REFERENCE CHART



      Temperature	Minimum Time Prior to Driving Vehicle
      35°C (95°F)	1 hour and 30 minutes
      20°C (68°F)	5 hours
      5°C (41 °F)	24 hours

1. Using a brush or sponge, coat the application area of the molding with Primer G.
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Throw away any leftover primer.

   HINT:

   If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

2. Install a new molding onto the windshield glass, as shown in the illustration.
3. Apply Primer G to the windshield outside molding area "a" shown in the illustration.

1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
2. If water leaks into the cabin, allow the water to dry and add adhesive.
3. Remove the protective tape.

HINT:

Return the front section of the roof headlining assembly to the original position.

Fig 14: Identifying Primer G To Windshield Outside Molding Area "A"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the RH side.

HINT:

Use the same procedure as for the RH side.

HINT:

Use the same procedure as for the RH side.

HINT:

Use the same procedure as for the RH side.

HINT:

Use the same procedure as for the RH side.

HINT:

Use the same procedure as for the RH side.

HINT:

Use the same procedure as for the RH side.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

1. Check the SRS warning light (See DIAGNOSIS SYSTEM ).
