System Diagram

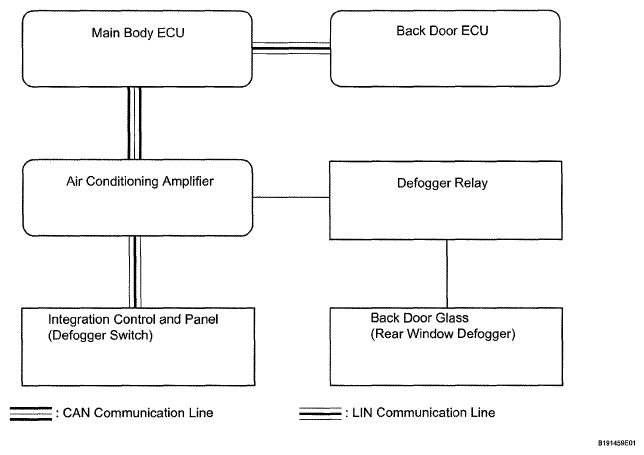

Fig 1: Window Defogger System Diagram
G05655913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION CHART

Transmitter Receiver Signal Line
Integration control and panel Air conditioning amplifier Rear window defogger switch signal LIN
Back Door ECU Main body ECU Back door window position signal LIN
Main body ECU Air conditioning amplifier Back door window position signal CAN
