Power Window Regulator Motor: Components

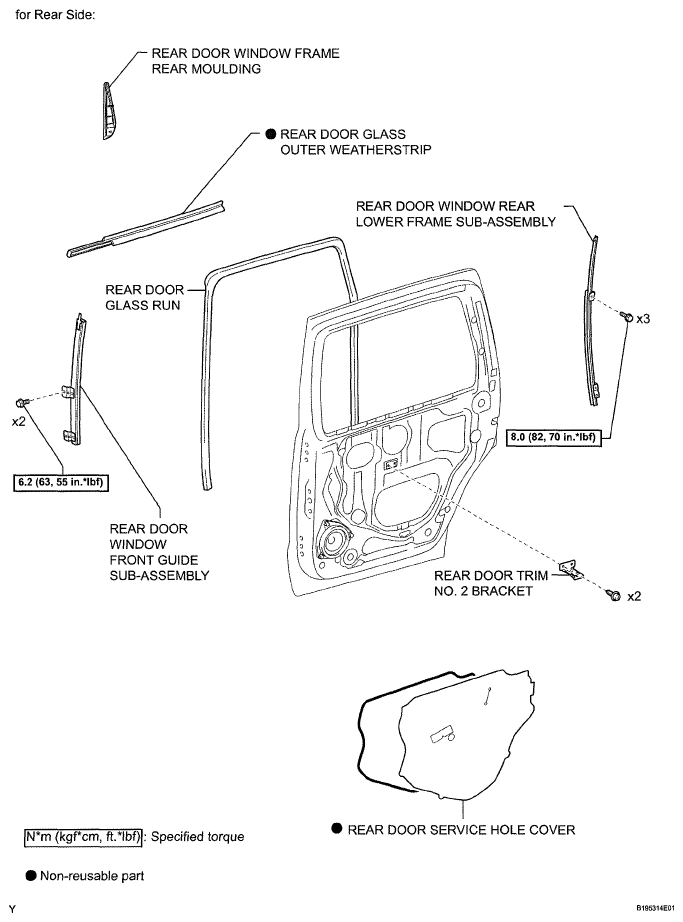

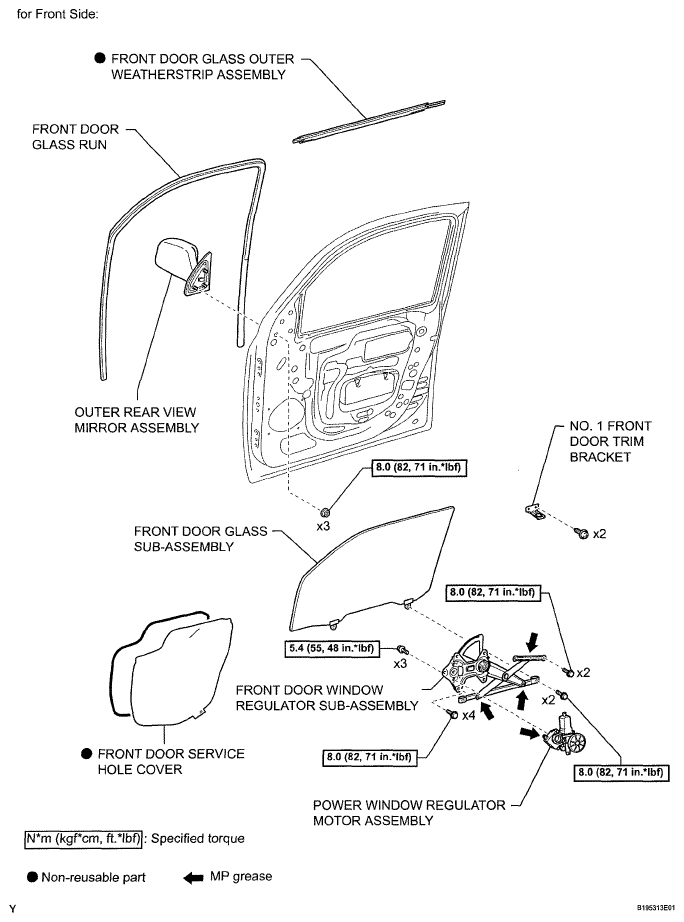

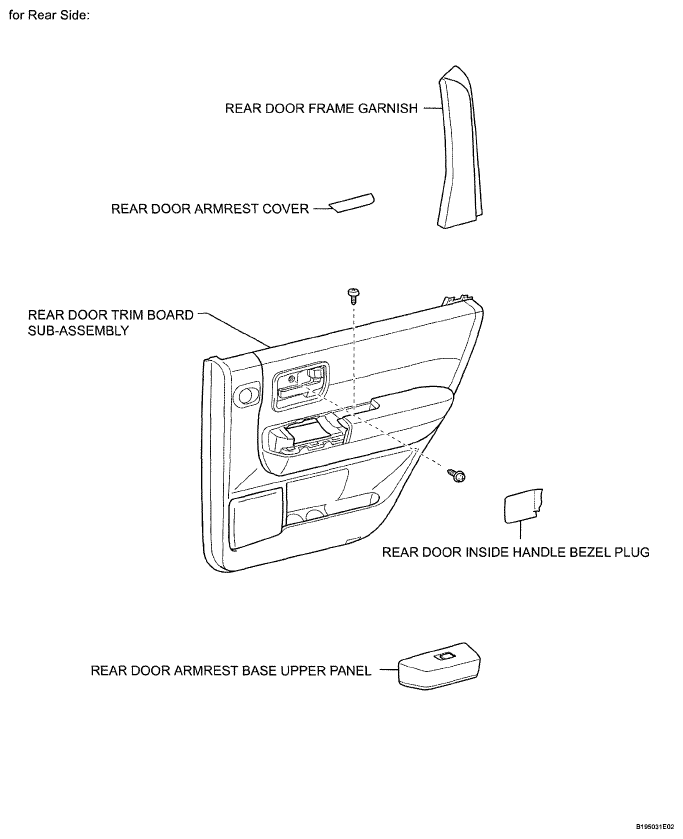

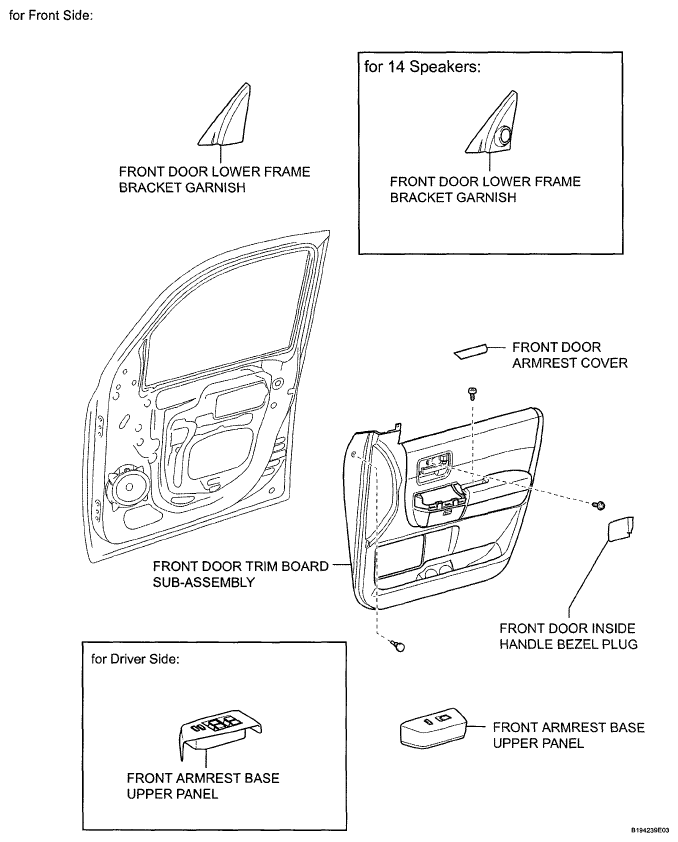

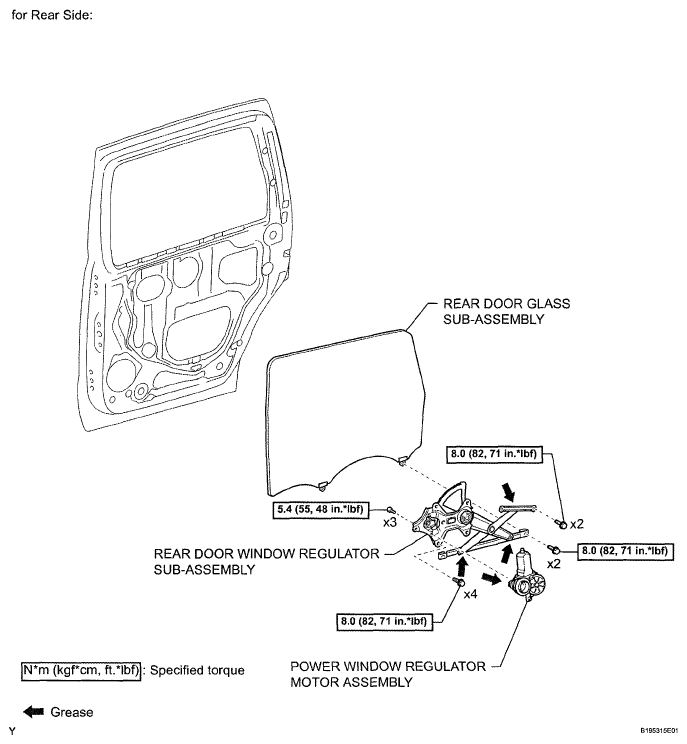

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
