System Diagram

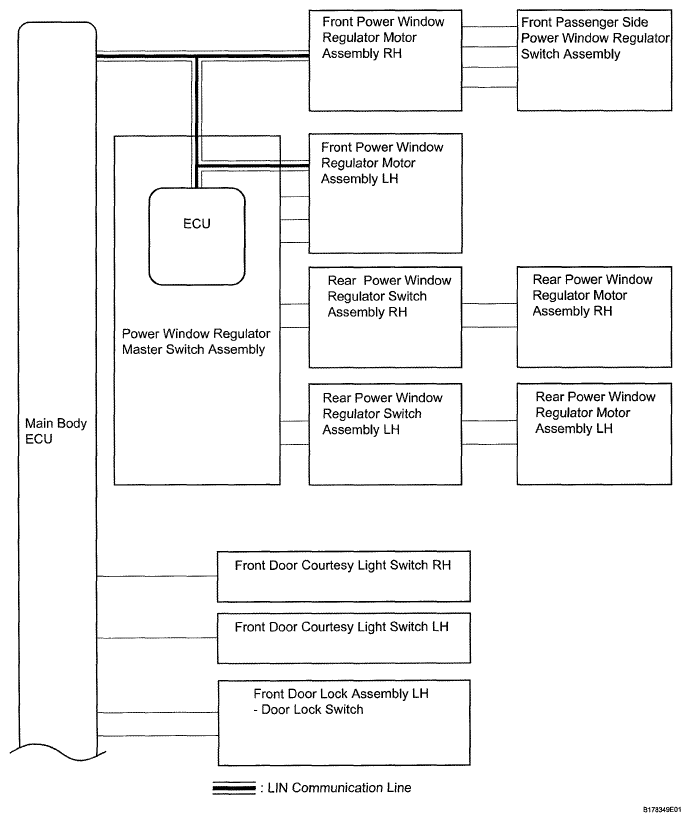

Fig 1: Power Window Control System Diagram (1 Of 2)
G05655777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

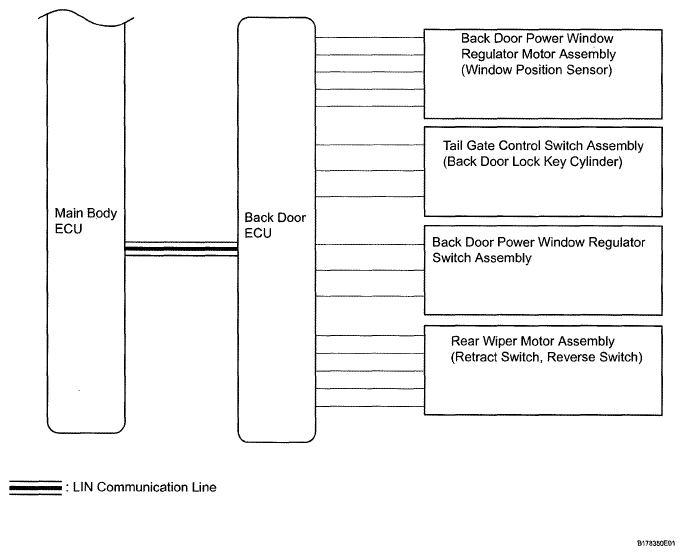

Fig 2: Power Window Control System Diagram (2 Of 2)
G05655778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sender Receiver Line Signal
Power window regulator master switch assembly
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
 LIN Power window UP/DOWN signal
Main Body ECU
  • Power window regulator master switch assembly
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
 LIN
  • Key-linked power window UP/DOWN signal
  • Key-OFF operation permission signal
Main Body ECU Back door ECU LIN Key-OFF operation permission signal
Back door ECU Main Body ECU LIN Status of the power window position
