Remote Up / Down Function Does Not Operate: Wiring Diagram

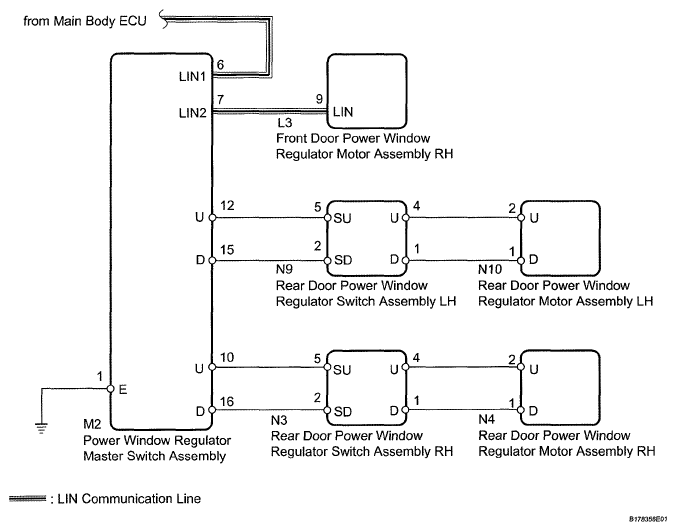

Fig 1: Remote Up / Down Function Does Not Operate Wiring Diagram

G05655791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
