Driver Side Power Window Does Not Operate with Power Window Master Switch: Wiring Diagram

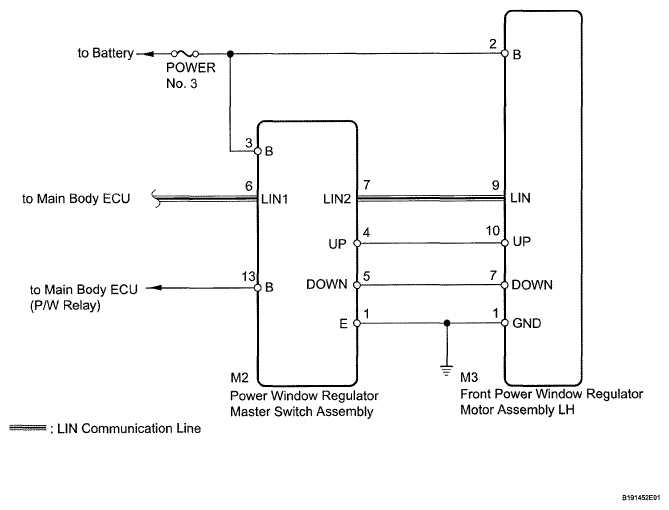

Fig 1: Driver Side Power Window Does Not Operate With Power Window Master Switch Wiring Diagram
G05655799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
