Knock Sensor: Components

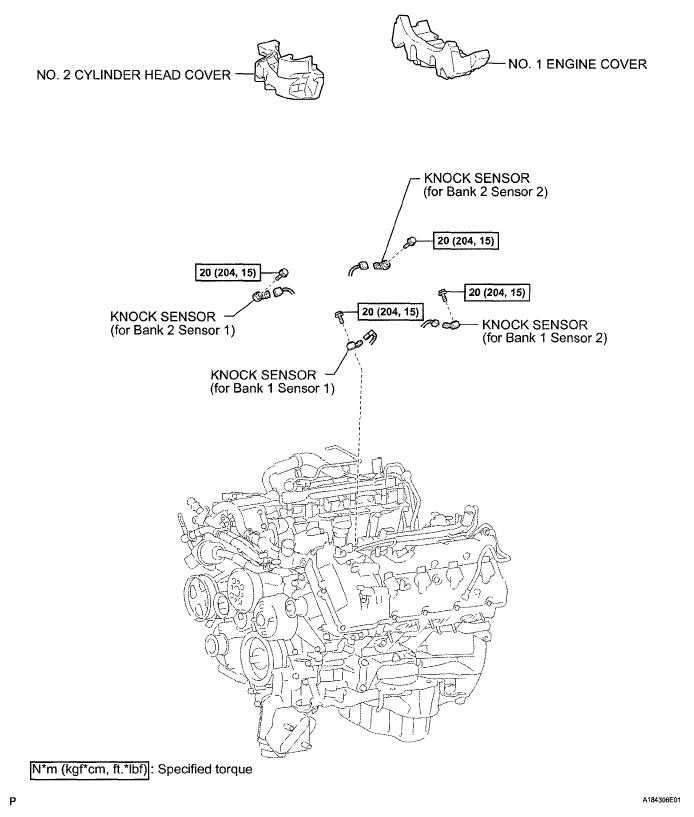

Fig 1: Identifying Knock Sensor Components
G05644785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
