Wireless Door Lock Control System: Overview

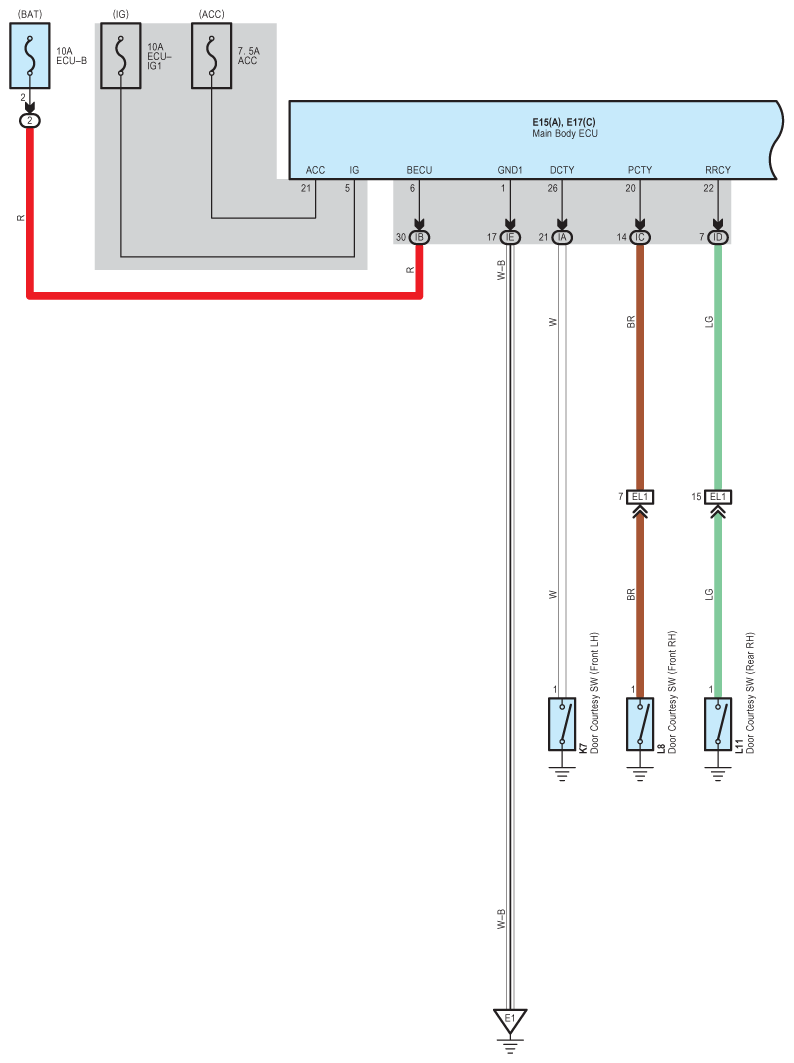

Fig 1: Wireless Door Lock Control - Circuit Diagram (1 Of 2)
G07577384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

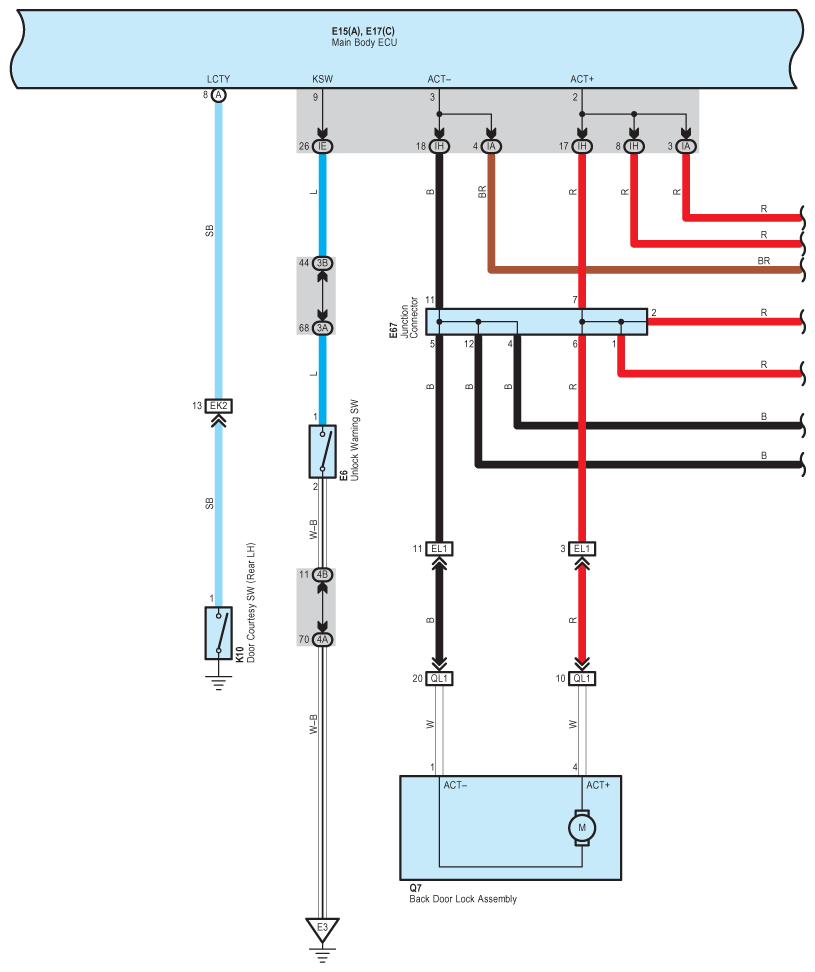

Fig 2: Wireless Door Lock Control - Circuit Diagram (2 Of 2)
G07577385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
