Sliding Roof System: Notes

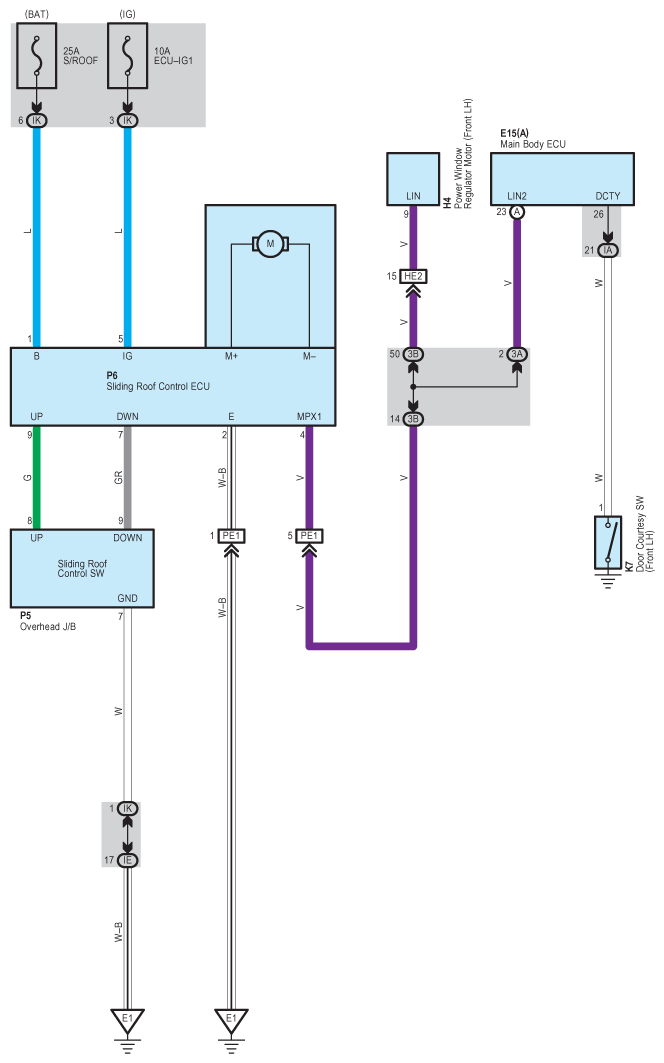

Fig 1: Sliding Roof - Circuit Diagram

G07577442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
