Power Seat System: Notes

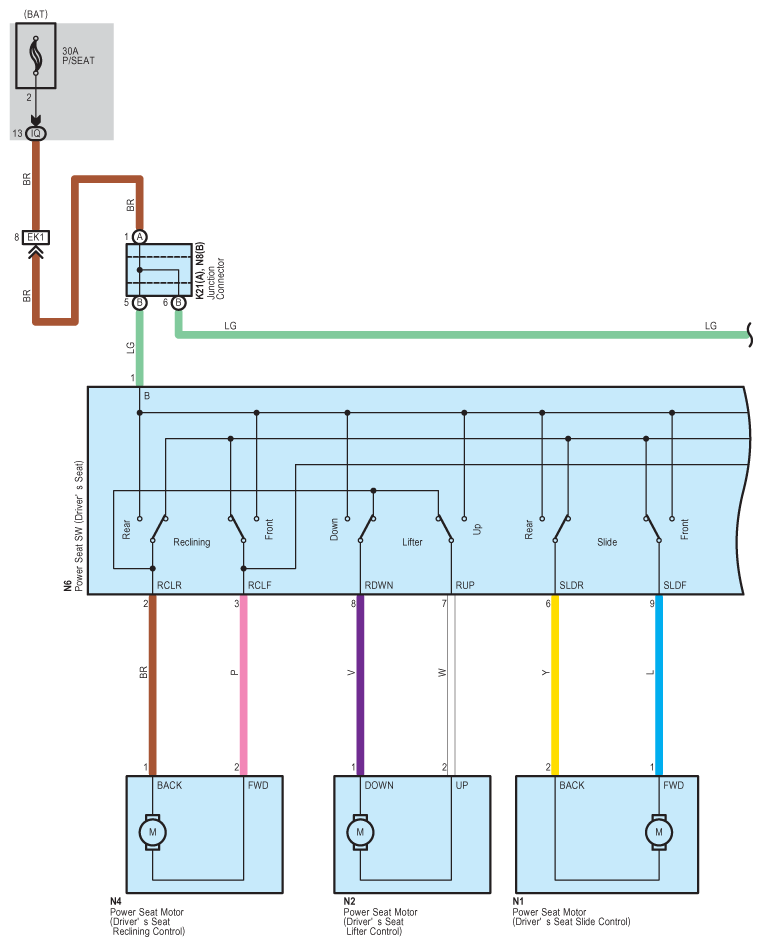

Fig 1: Power Seat - Circuit Diagram (1 Of 2)
G07577373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

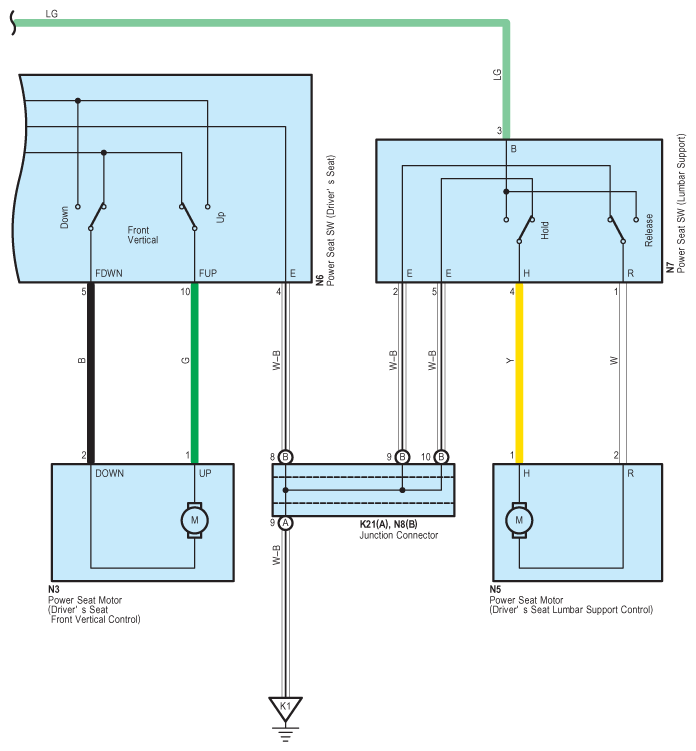

Fig 2: Power Seat - Circuit Diagram (2 Of 2)
G07577374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
