Key Reminder System: Notes

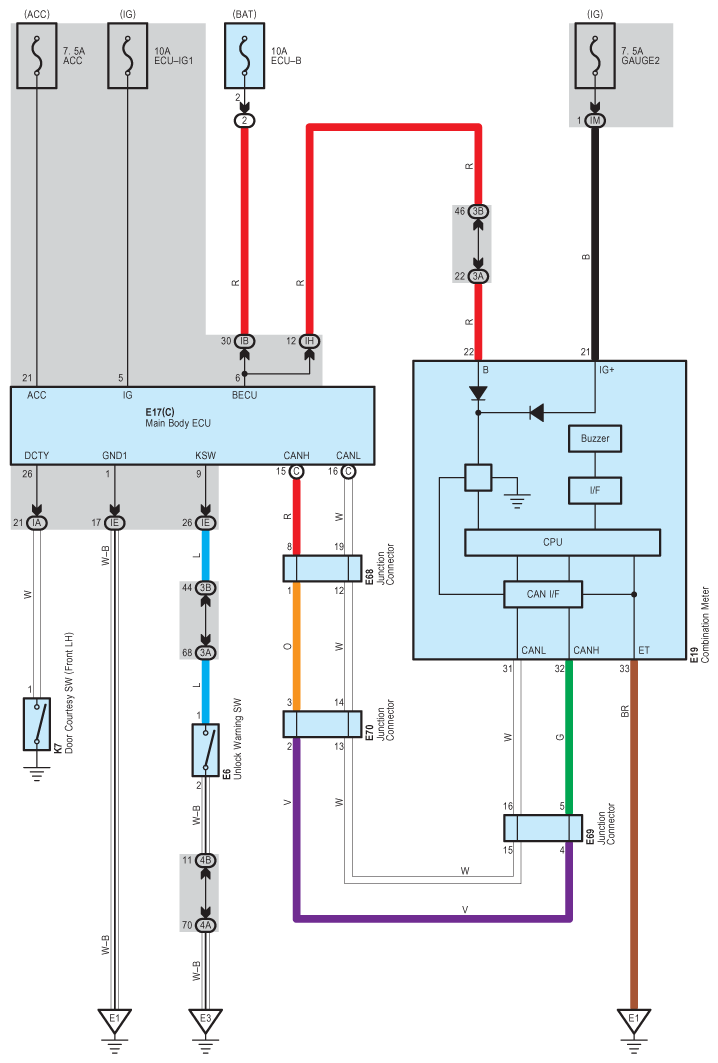

Fig 1: Key Reminder - Circuit Diagram

G07577370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
