Ignition System for 2GR-FE: Notes

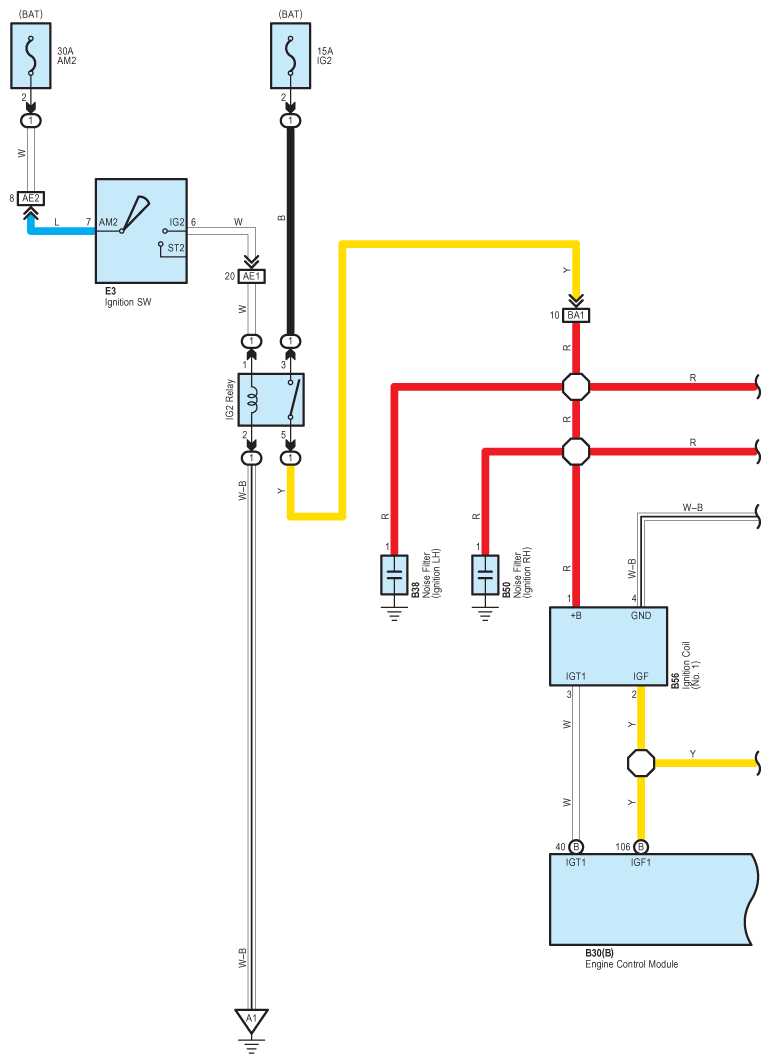

Fig 1: Ignition For 2GR-FE - Circuit Diagram (1 Of 3)
G07577312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

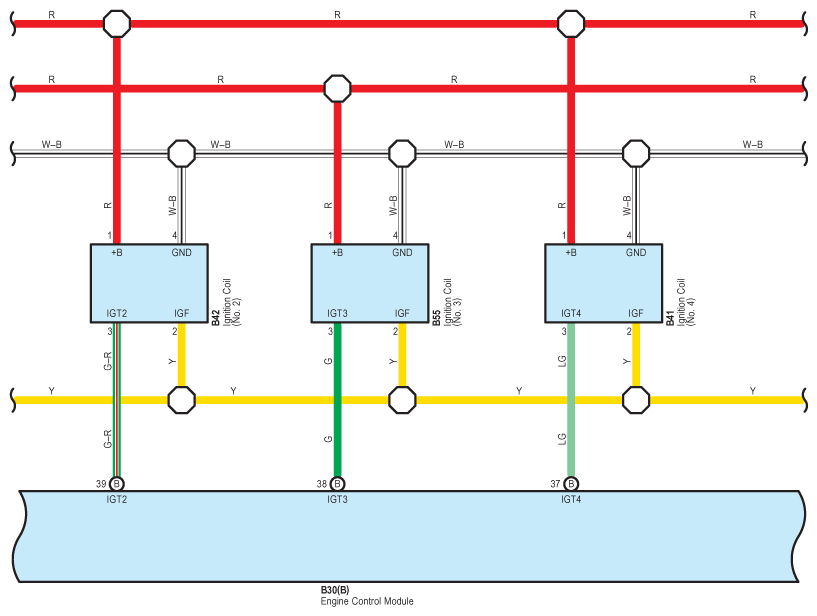

Fig 2: Ignition For 2GR-FE - Circuit Diagram (2 Of 3)
G07577313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

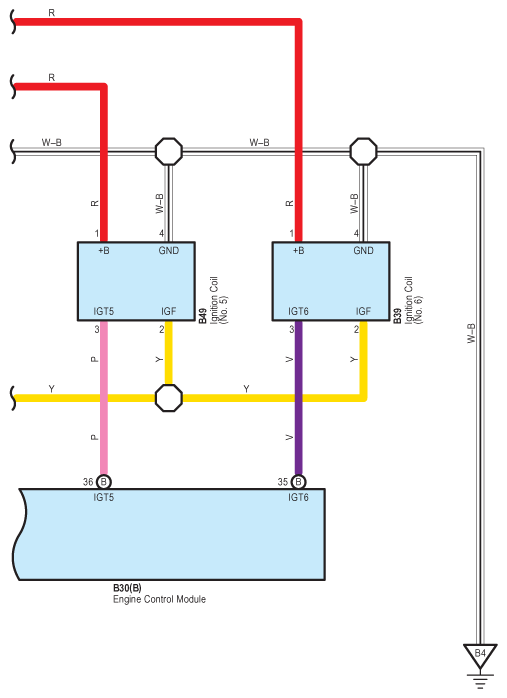

Fig 3: Ignition For 2GR-FE - Circuit Diagram (3 Of 3)
G07577314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
