Ignition System for 2AZ-FE: Notes

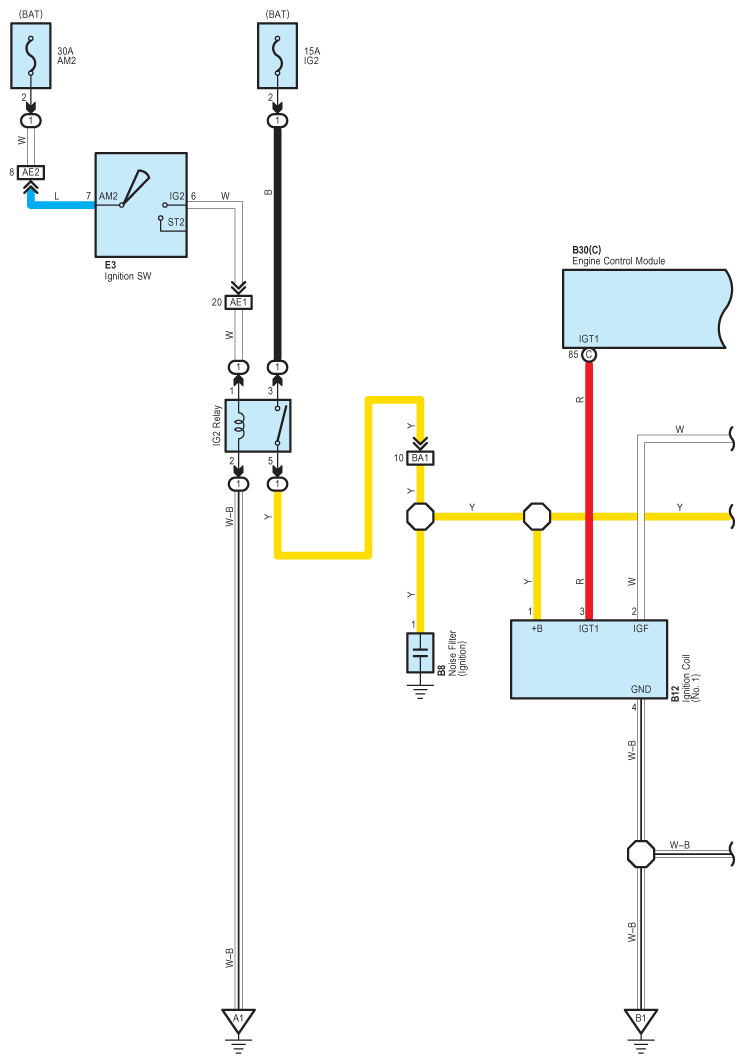

Fig 1: Ignition For 2AZ-FE - Circuit Diagram (1 Of 2)
G07577315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

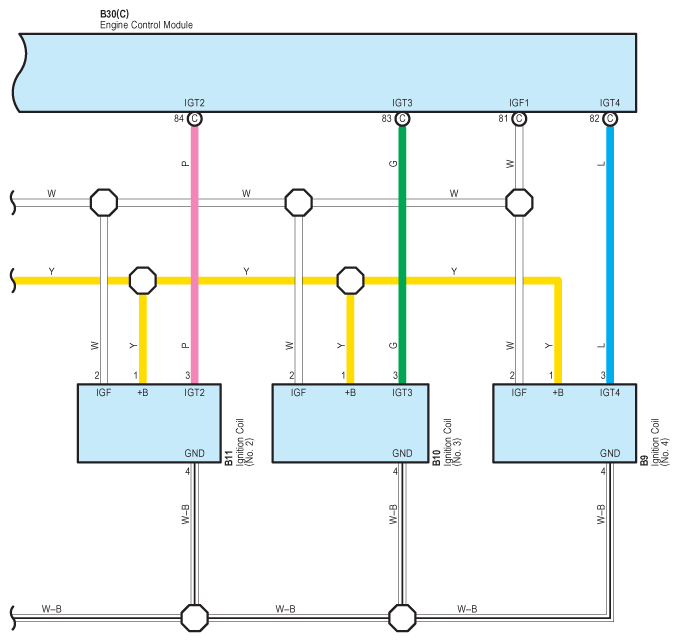

Fig 2: Ignition For 2AZ-FE - Circuit Diagram (2 Of 2)
G07577316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
