Front Wiper and Washer System: Notes

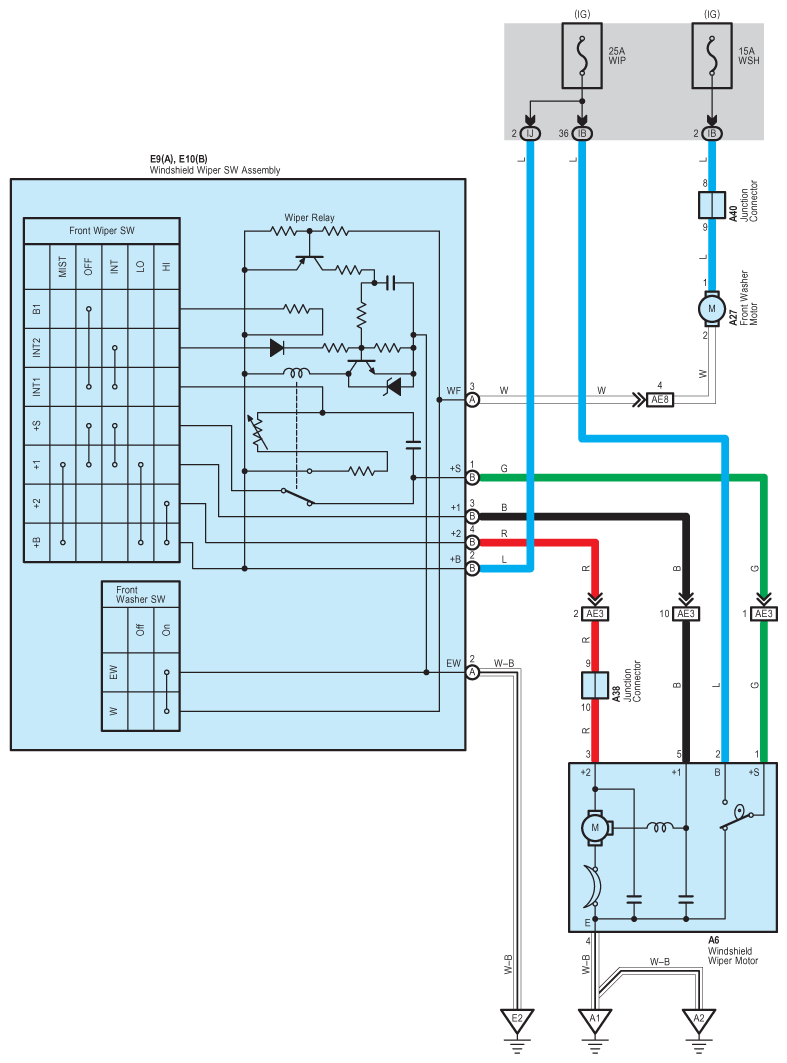

Fig 1: Front Wiper And Washer - Circuit Diagram

G07577378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
