Engine Immobiliser System: Notes

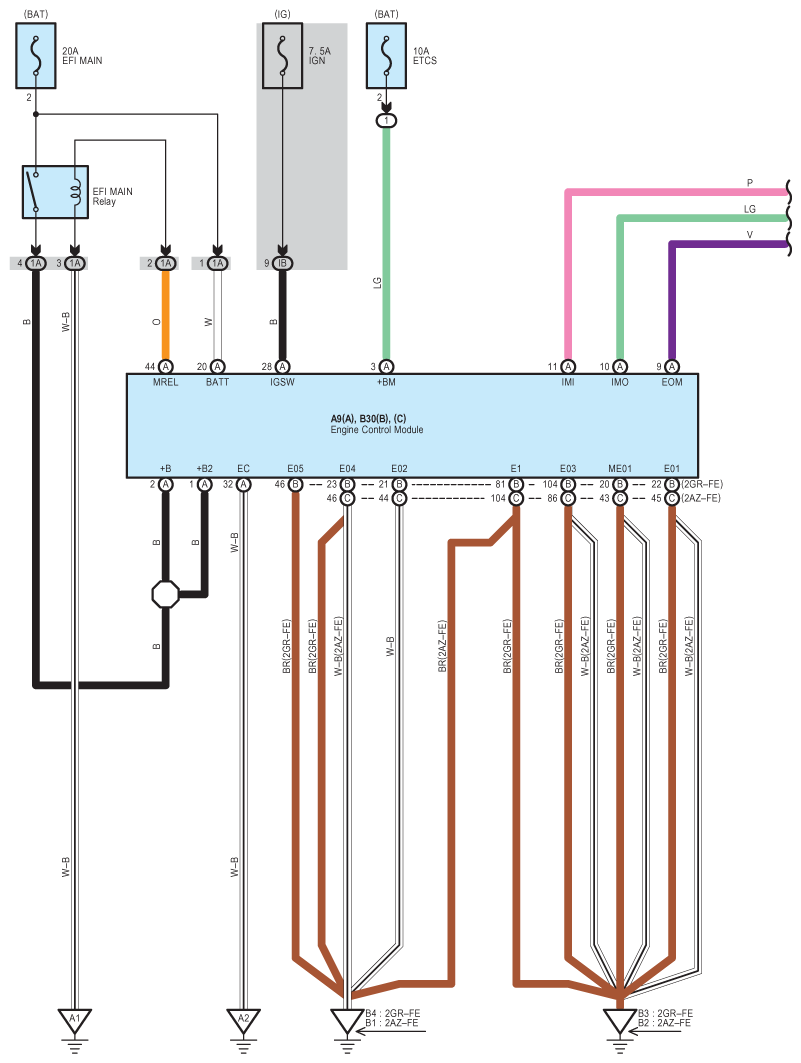

Fig 1: Engine Immobiliser System - Circuit Diagram (1 Of 2)
G07577344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

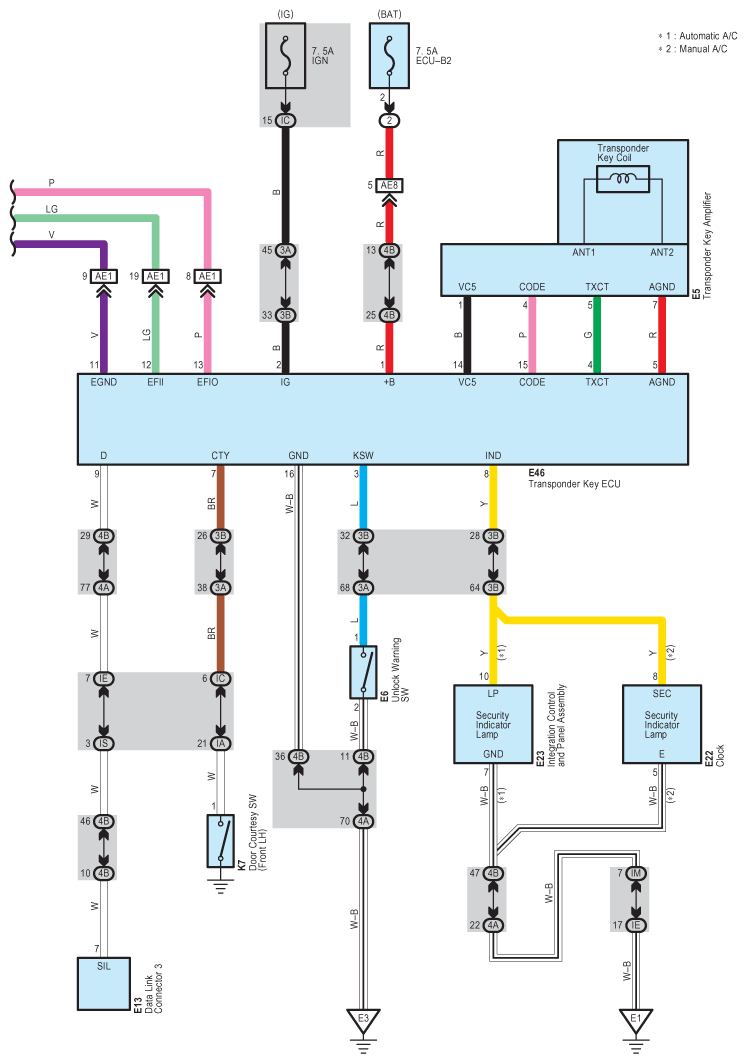

Fig 2: Engine Immobiliser System - Circuit Diagram (2 Of 2)
G07577345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
