Clock without Automatic Air Conditioning: Notes

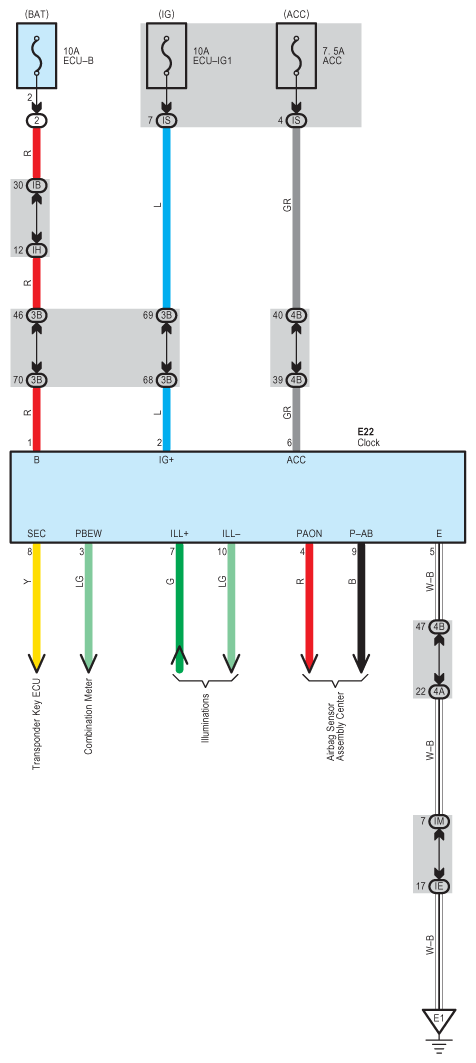

Fig 1: Clock Without Automatic Air Conditioning - Circuit Diagram

G07577444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
