Charging System without Trailer Towing: Notes

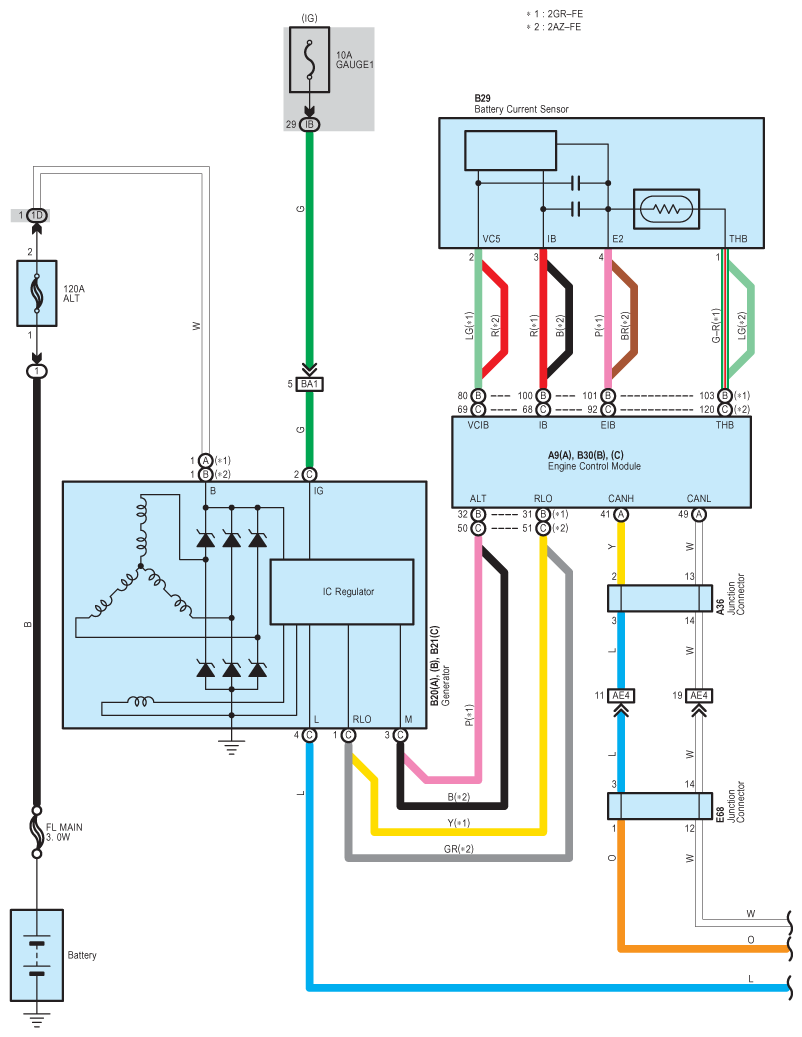

Fig 1: Charging Without Trailer Towing - Circuit Diagram (1 Of 2)
G07577320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

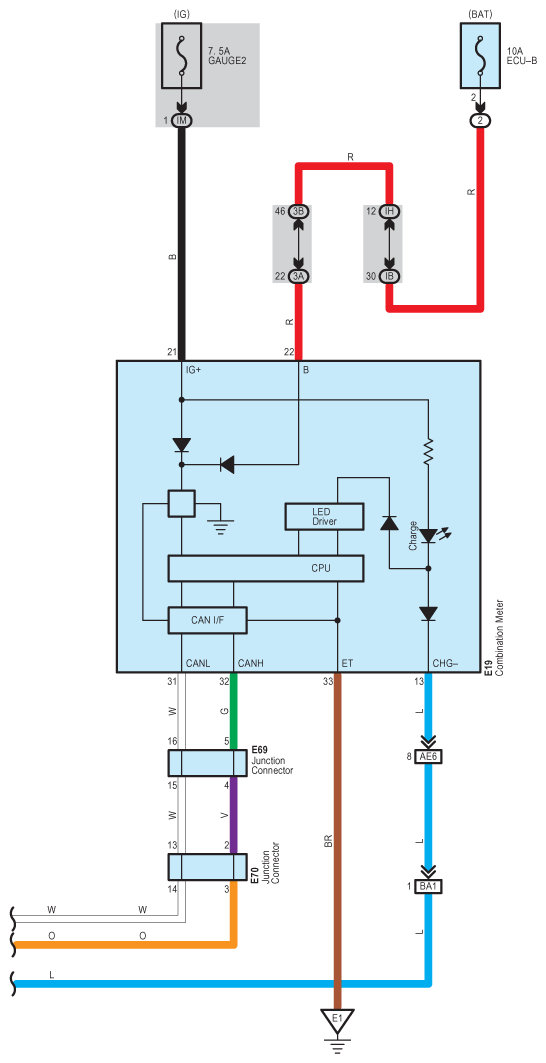

Fig 2: Charging Without Trailer Towing - Circuit Diagram (2 Of 2)
G07577321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
