AWD System: Notes — 2008 Toyota RAV4 Base, 3.5 K, AWD Service Manual ~ LEMON Manuals

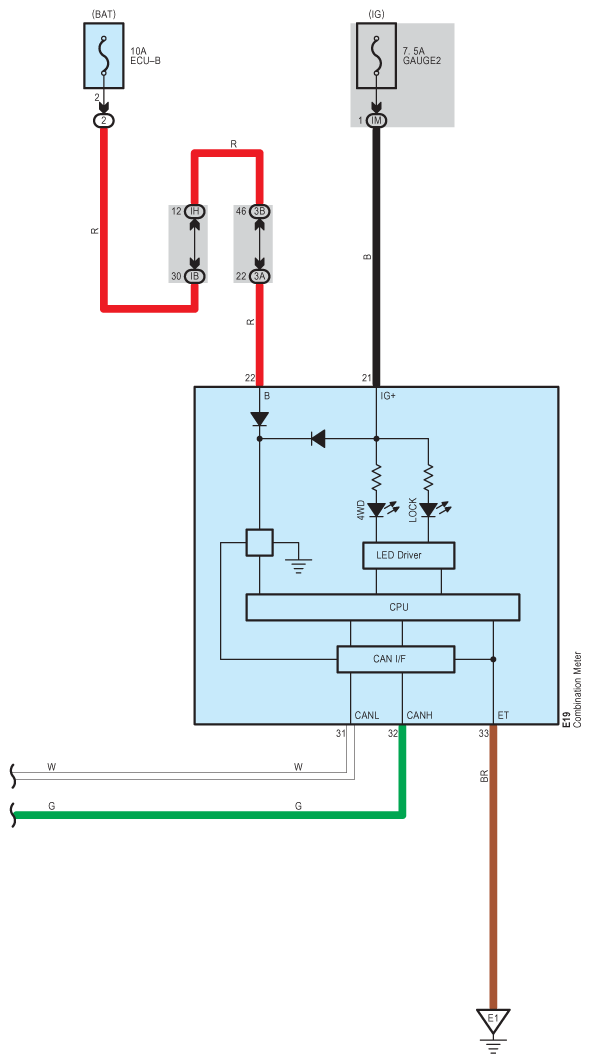

Fig 1: AWD - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

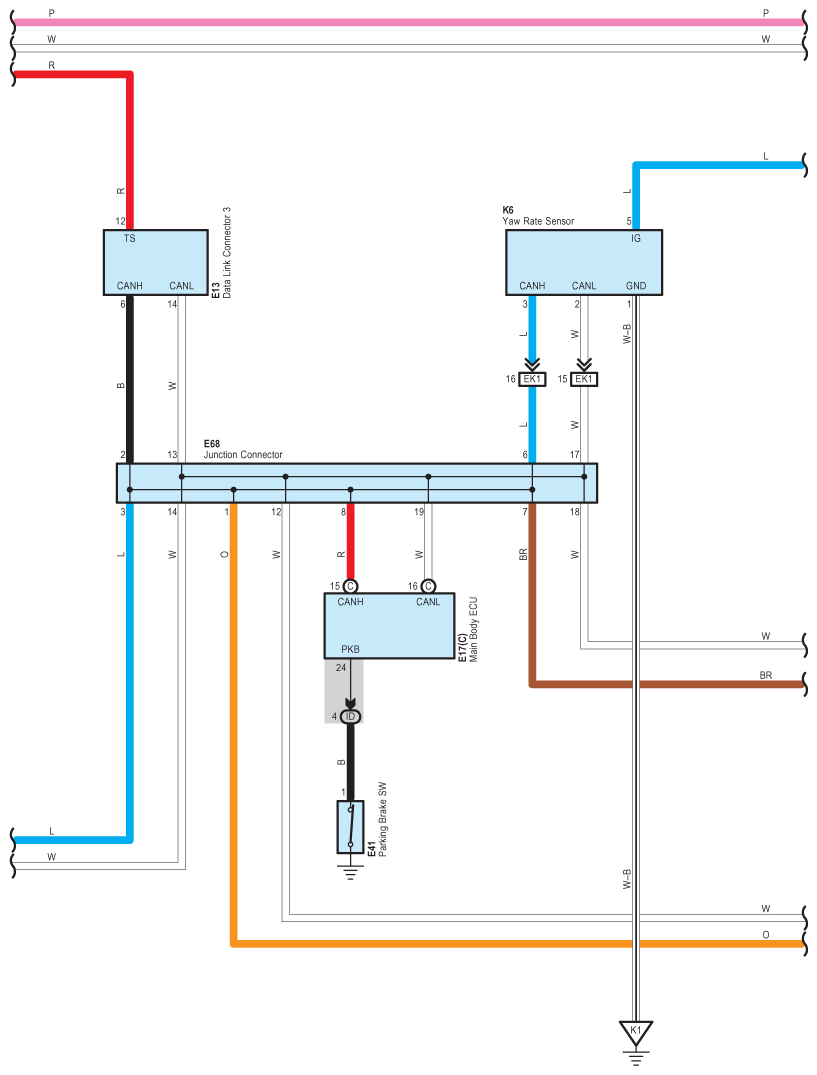

Fig 2: AWD - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

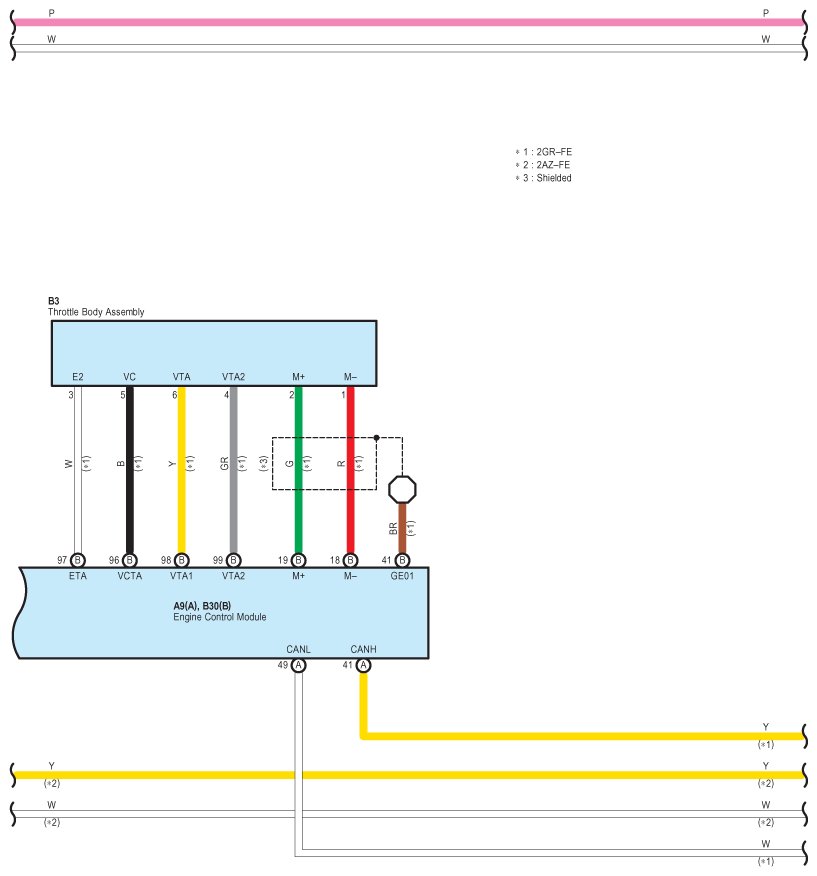

Fig 3: AWD - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

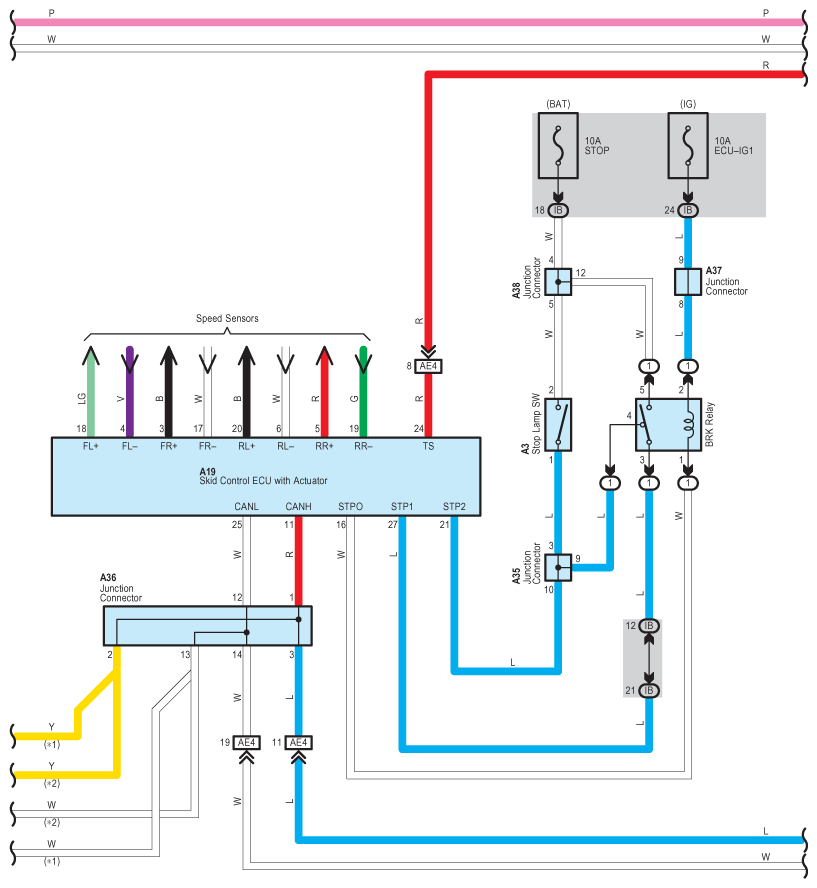

Fig 4: AWD - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

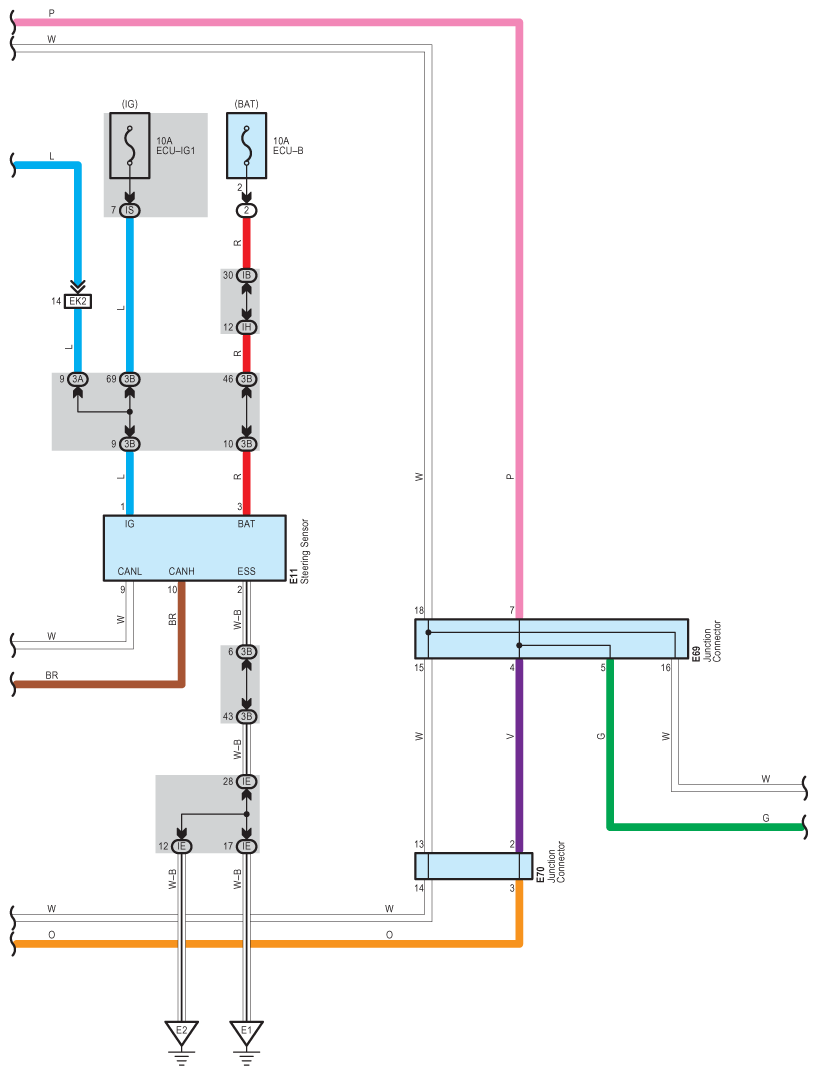

Fig 5: AWD - Circuit Diagram (5 Of 7)

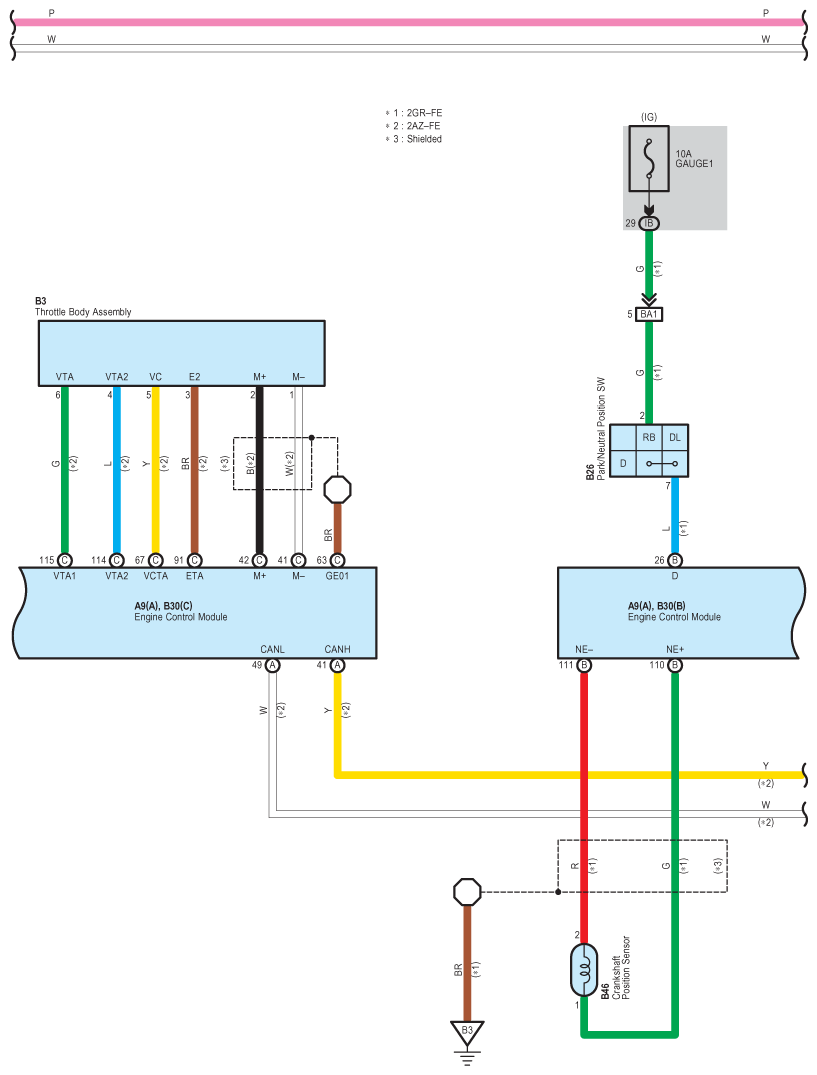

Fig 6: AWD - Circuit Diagram (6 Of 7)

Fig 7: AWD - Circuit Diagram (7 Of 7)
