Home >> Toyota >> 2008 >> RAV4 Base, 3.5 K, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Yaw Rate And Deceleration Sensor >> Components

Yaw Rate And Deceleration Sensor: Components

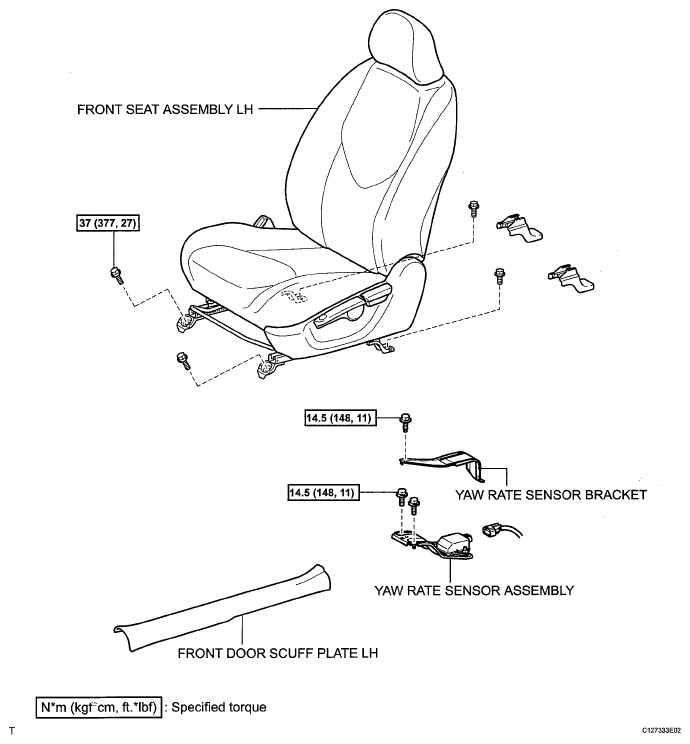

Fig 1: Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications

G05585121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
