Abs And Traction Actuator: Components

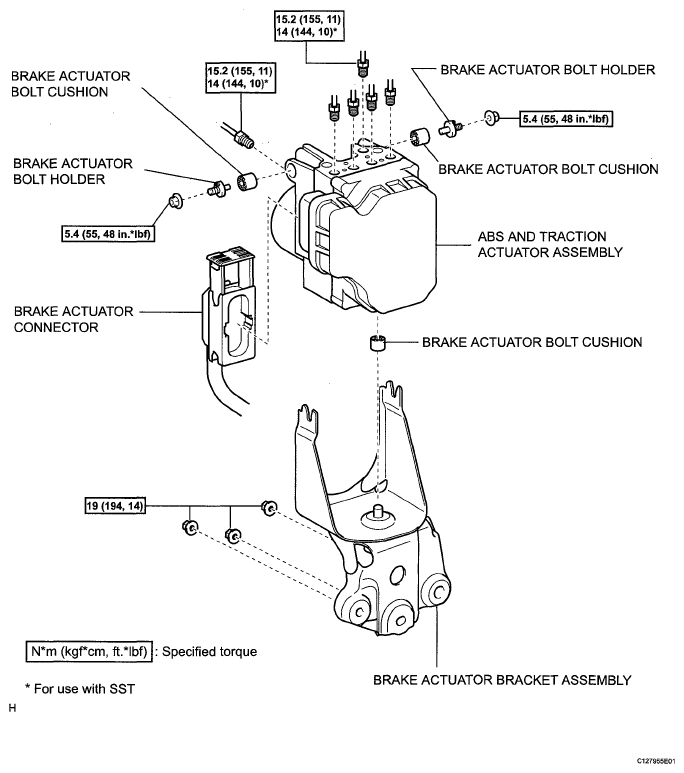

Fig 1: Identifying ABS And Traction Actuator Replacement Components With Torque Specifications

G05585074

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
