System Diagram

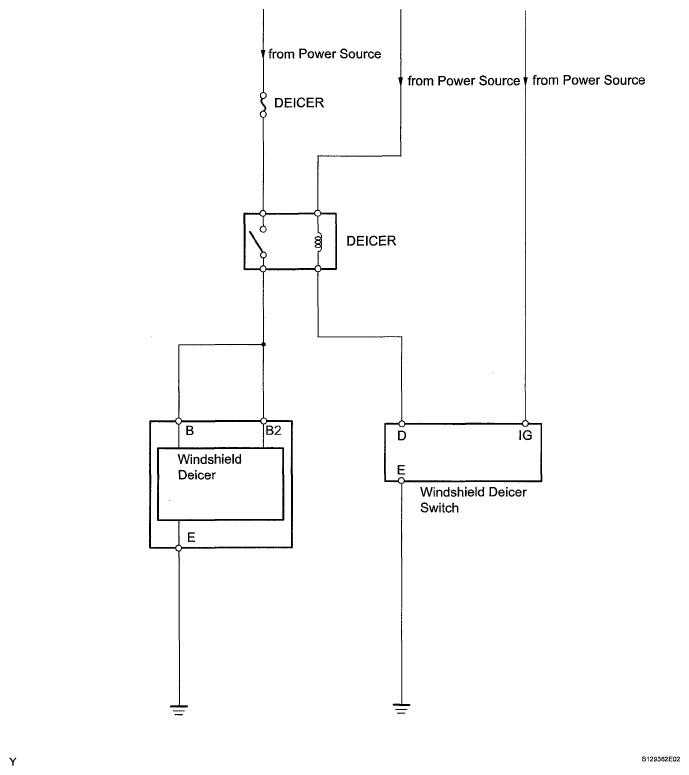

Fig 1: Identifying Windshield Deicer System Diagram

G05586529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
