System Diagram

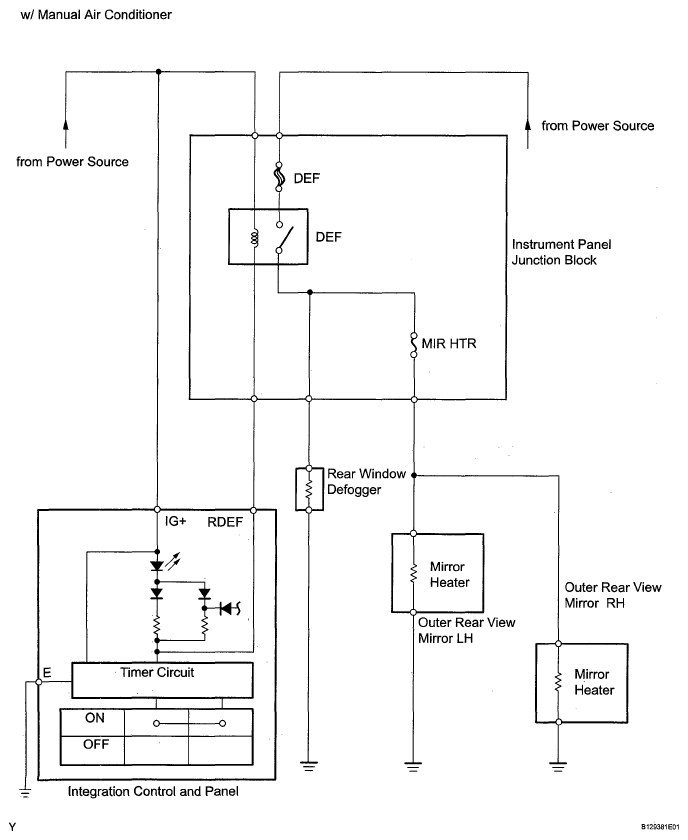

Fig 1: Identifying Window Defogger System Diagram (1 Of 2)
G05586532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

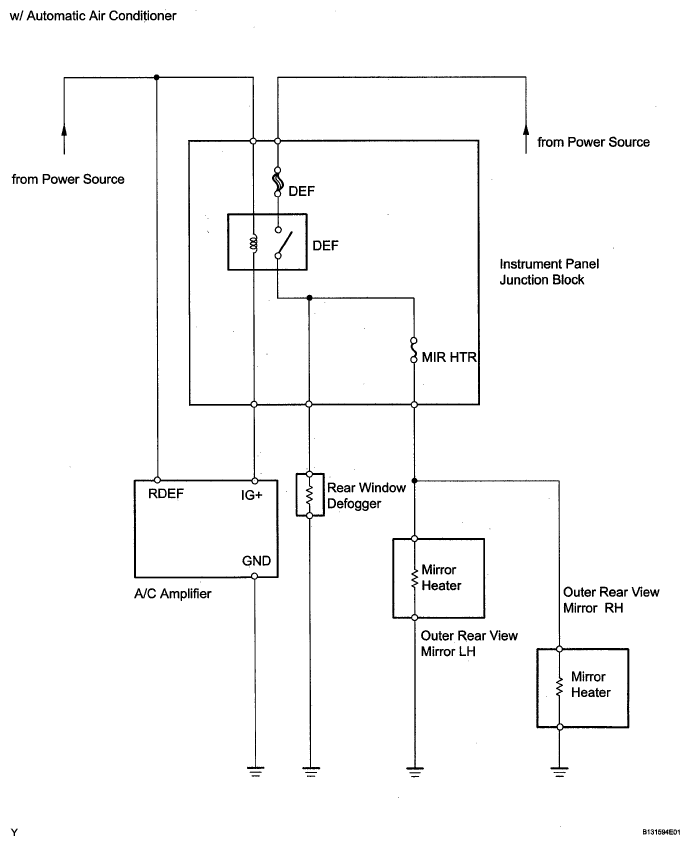

Fig 2: Identifying Window Defogger System Diagram (2 Of 2)
G05586533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
