Parts Location

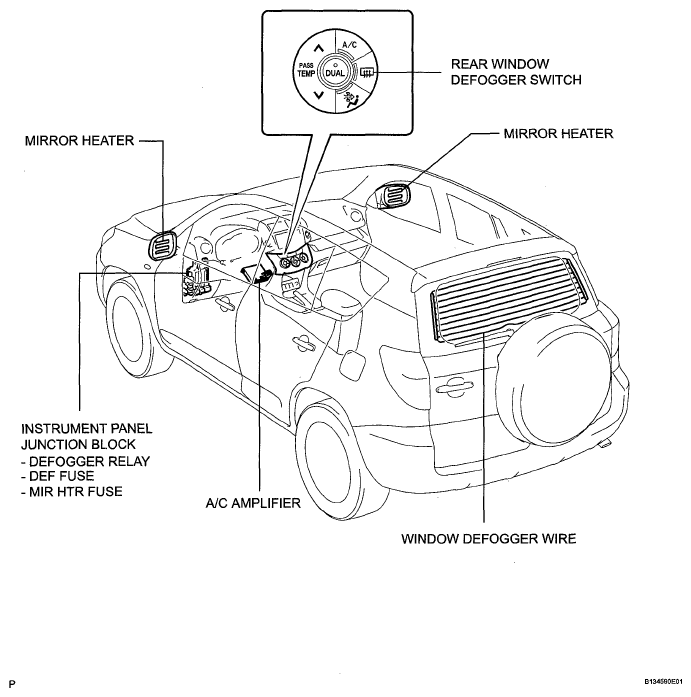

Fig 1: Identifying Window Defogger System Components Location (1 Of 2)
G05586530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

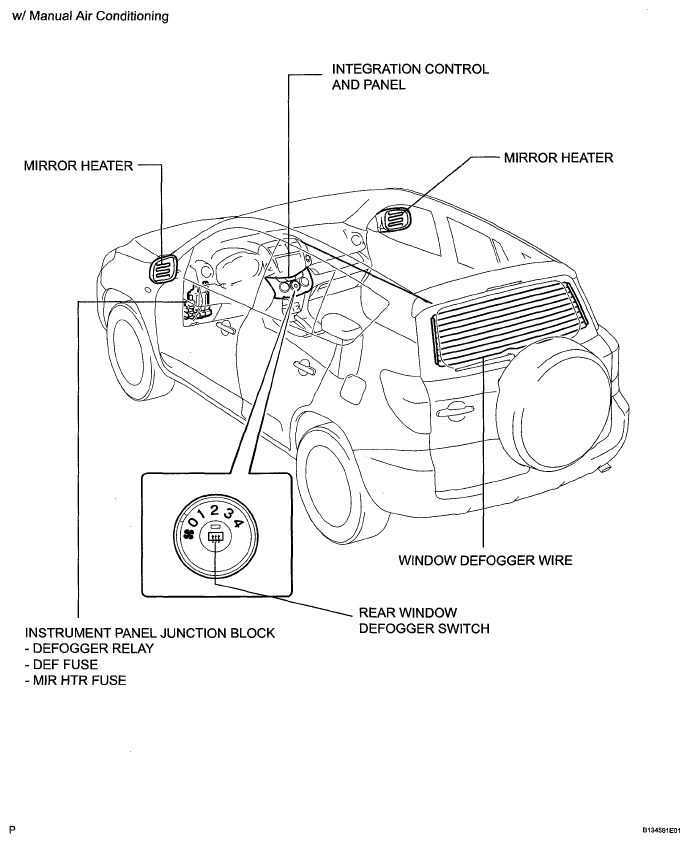

Fig 2: Identifying Window Defogger System Components Location (2 Of 2)
G05586531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
