Quarter Window Glass: Components

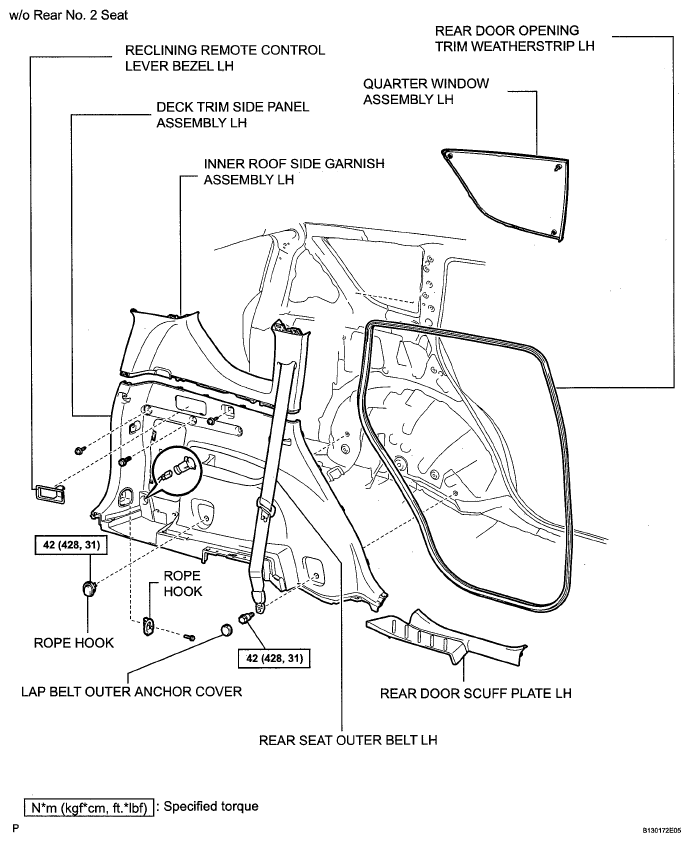

Fig 1: Quarter Window Glass Replacement Components With Torque Specifications (1 Of 4)
G05586545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

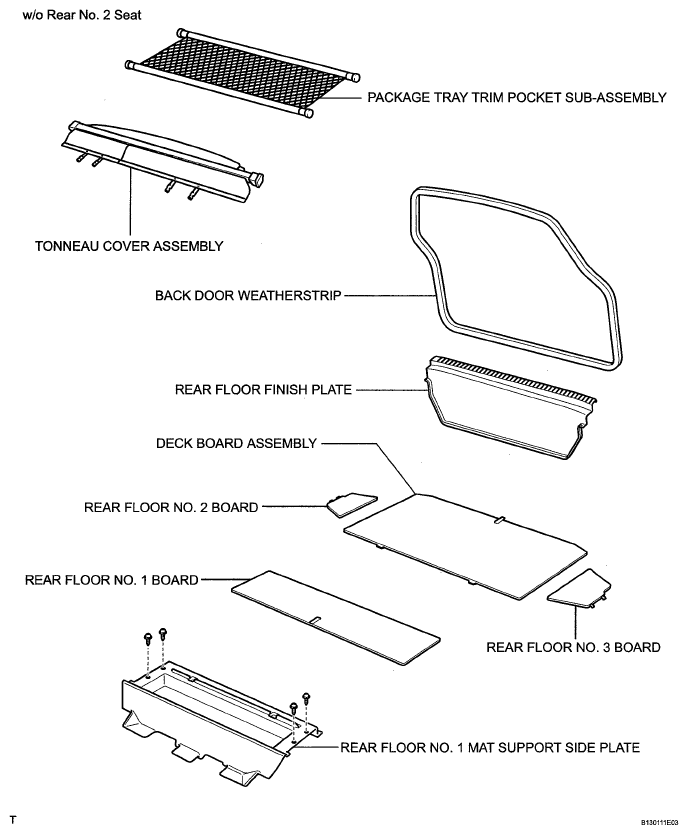

Fig 2: Identifying Quarter Window Glass Components (2 Of 4)
G05586546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

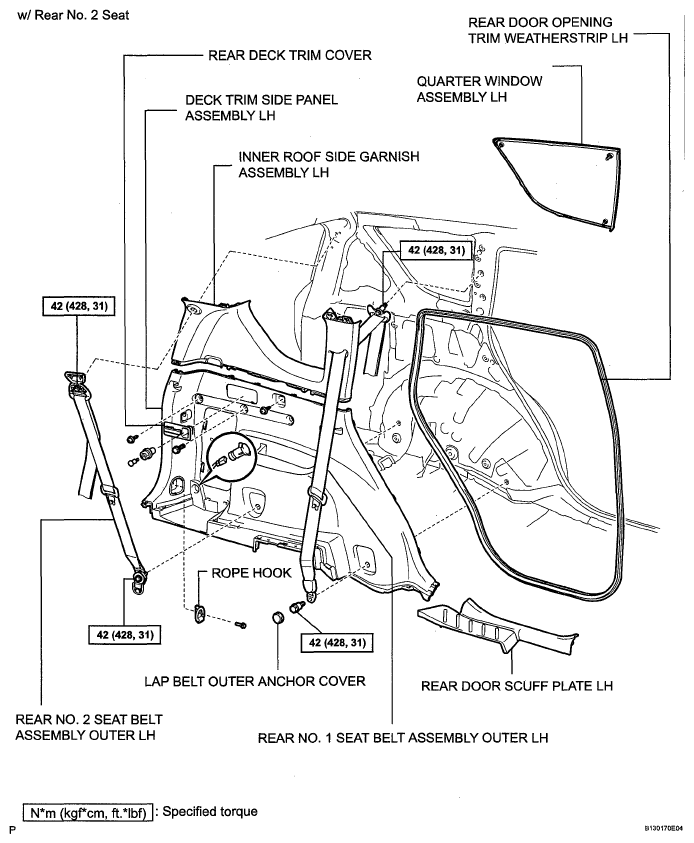

Fig 3: Quarter Window Glass Replacement Components With Torque Specifications (3 Of 4)
G05586547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

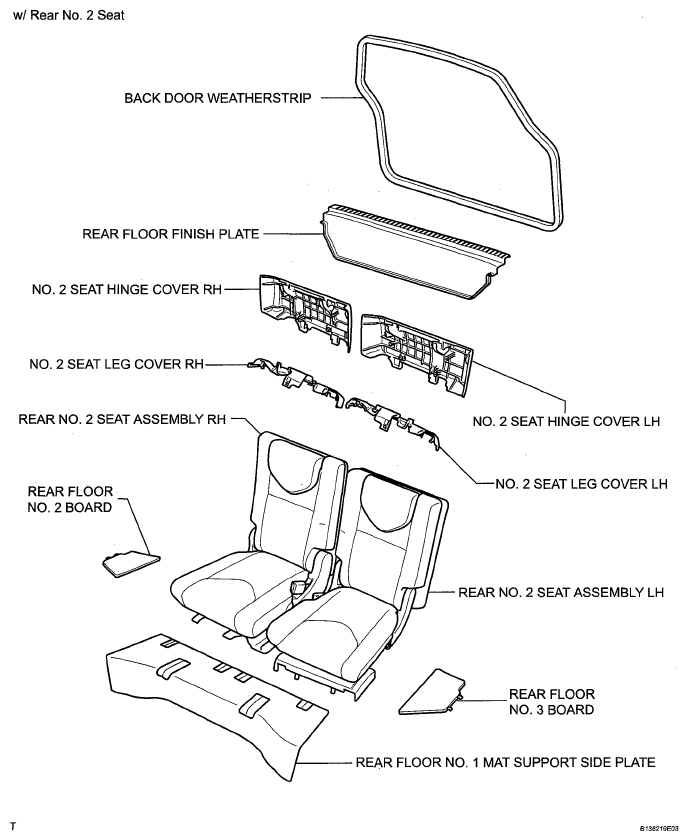

Fig 4: Identifying Quarter Window Glass Components (4 Of 4)
G05586548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
