Back Door Glass: Components

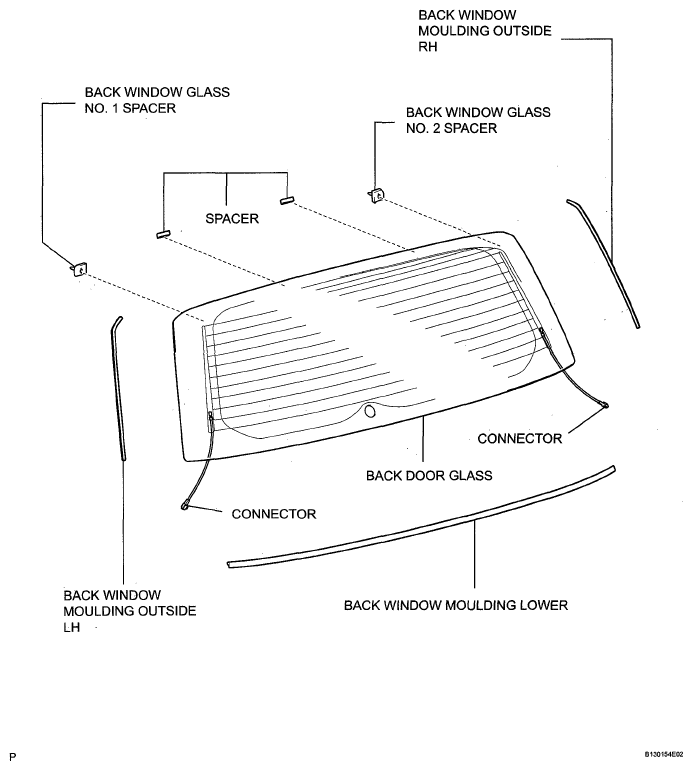

Fig 1: Identifying Back Door Glass Components (1 Of 2)
G05586513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

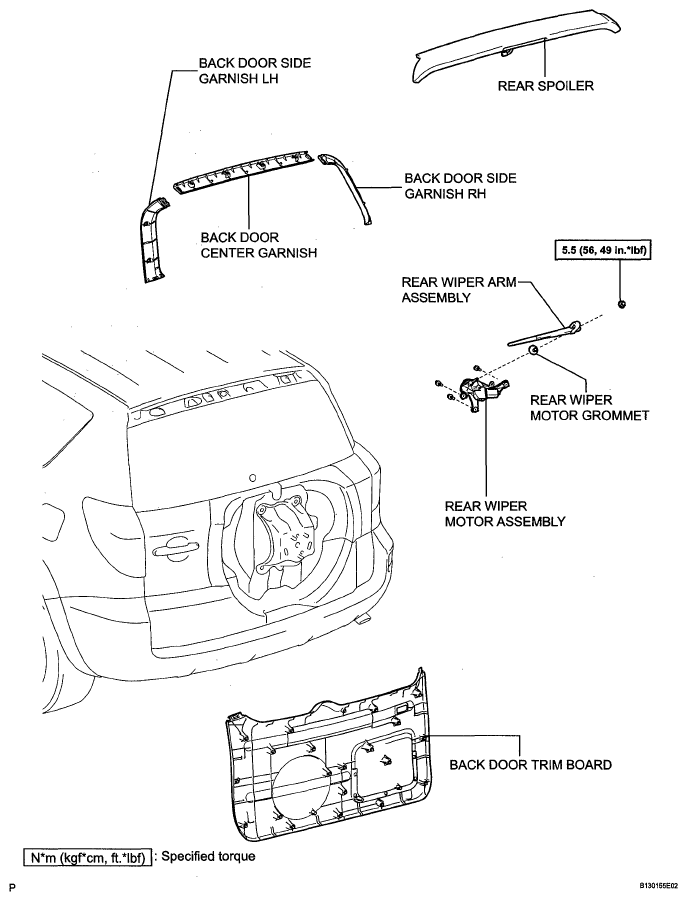

Fig 2: Back Door Glass Replacement Components With Torque Specifications (2 Of 2)
G05586514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
