Rear Window Defogger and Mirror Heater System: Notes

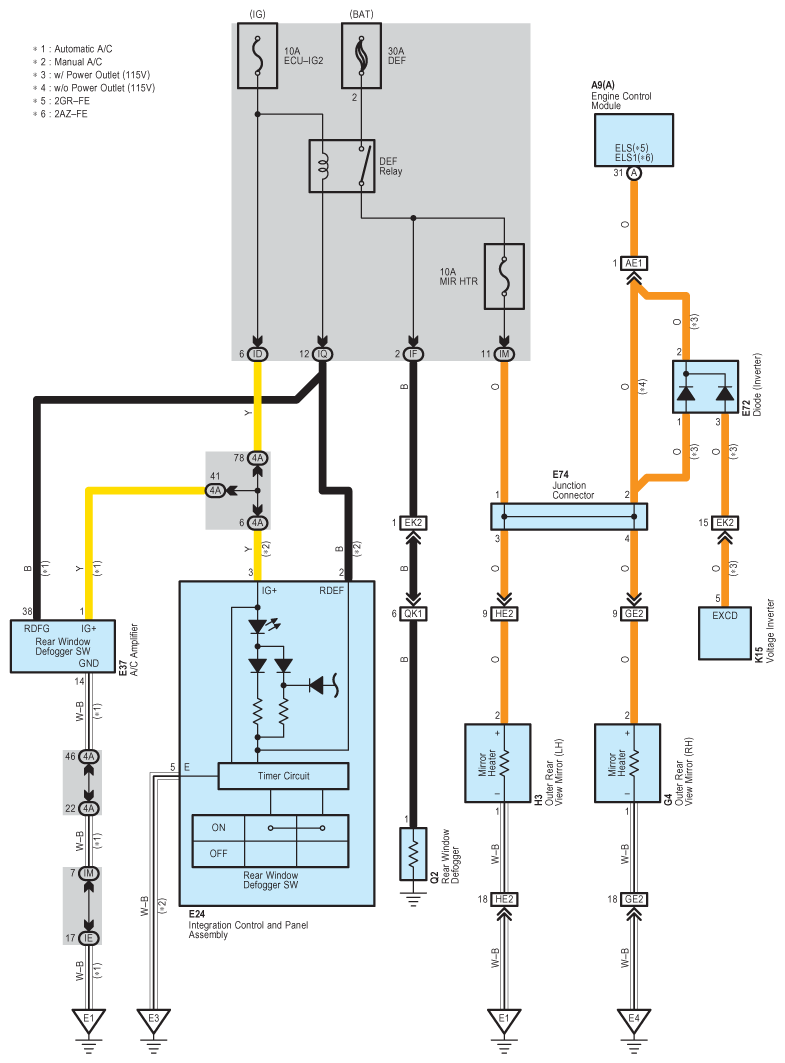

Fig 1: Rear Window Defogger And Mirror Heater - Circuit Diagram

G07577445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
