Back Door Glass: Installation

  1. INSTALL BACK WINDOW GLASS SPACER
    1. Apply Primer G to the installation part of the clips.

      HINT:

      If primer is applied to an area that is not specified, wipe off the primer with white gasoline before it dries.

    2. Install 4 new spacers onto the glass as shown in the illustration.
      Fig 1: Identifying Back Window Glass Spacer
      G05586521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
  2. INSTALL BACK WINDOW MOLDING OUTSIDE

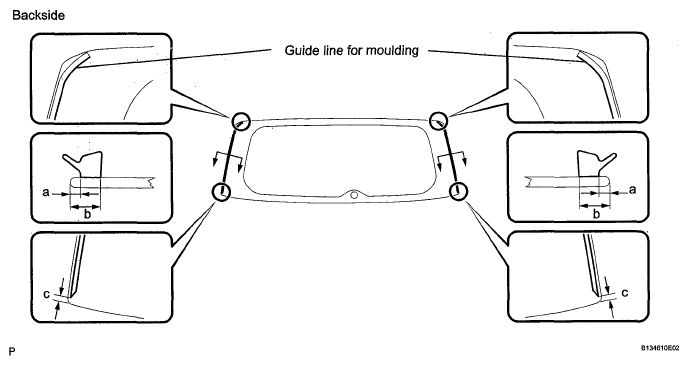

    Fig 2: Identifying Back Window Molding Outside Dimension
    G05586522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply Primer G to the installation part of the window molding.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install a new molding as shown in the illustration.

      Standard measurement

      STANDARD MEASUREMENT AREA

      Area Specified Condition
      a 3.0 mm (0.118 in.)
      b 9.0 mm (0.354 in.)
      c 9.0 to 11.0 mm (0.118 to 0.433 in.)
  3. INSTALL BACK WINDOW MOLDING LOWER
    1. Apply Primer G to the installation part of the window molding.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install a new molding as shown in the illustration.

      Standard measurement

      STANDARD MEASUREMENT AREA

      Area Specified Condition
      a 7.3 mm (0.287 in.)
      Fig 3: Identifying Back Window Molding Lower
      G05586523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BACK DOOR GLASS
    1. Using a brush or sponge, apply Primer M to the exposed part of the vehicle body.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Do not apply primer to the adhesive.
      • Throw away any leftover primer.
      • Do not apply too much primer.
        • Fig 4: Applying Primer M To Exposed Part Of Vehicle Body
        G05586524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a brush or sponge, apply Primer G to the contact surface of the back door glass.

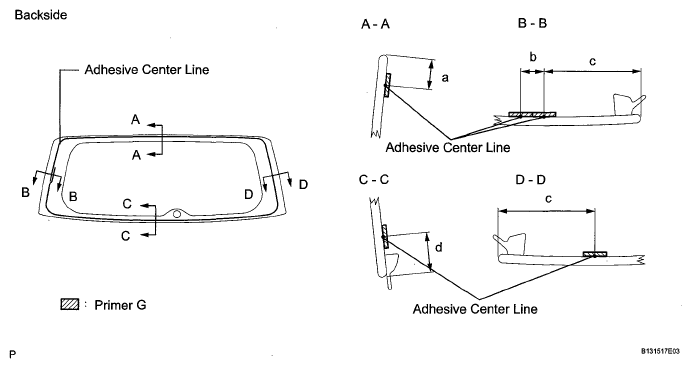

      Fig 5: Applying Primer G To Contact Surface Of Back Door Glass
      G05586525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard measurement

      STANDARD MEASUREMENT AREA

      Area Specified Condition
      a 10.4 mm (0.409 in.)
      b 7.0 mm (0.275 in.)
      c 35.5 mm (1.397 in.)
      d 13.0 mm (0.511 in.)

      HINT:

      If primer is applied to an area that is not specified, wipe off the primer with white gasoline before it dries.

      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    3. Apply adhesive to the back door glass.

      Adhesive:

      Toyota Genuine Windshield Glass Adhesive or Equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration below.

        HINT:

        After cutting off the tip, use all adhesive within the time written in the table below.

        Usage time frame

        TEMPERATURE SPECIFICATION

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Apply adhesive to the back door glass as shown in the illustration.

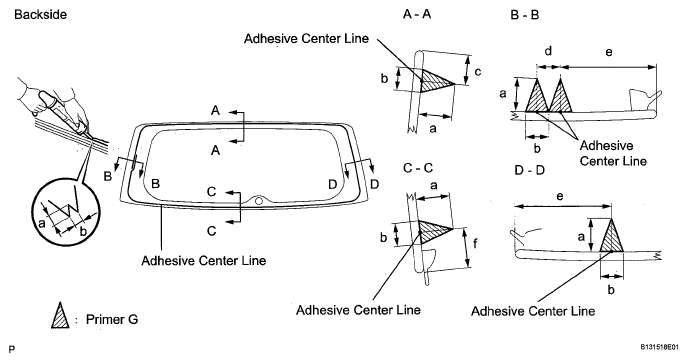

        Fig 6: Applying Adhesive To Back Door Glass
        G05586526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard measurement

        STANDARD MEASUREMENT AREA

        Area Specified Condition
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)
        c 10.4 mm (0.409 in.)
        d 7.0 mm (0.275 in.)
        e 35.5 mm (1.397 in.)
        f 13.0 mm (0.511 in.)
    4. Install the back door glass to the vehicle body.
      1. Hold the back window glass in place securely with tape or equivalent until the adhesive has hardened.
        NOTE:
        • Allow the primer coating to dry for 3 minutes or more.
        • Check that the clips are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and glass.
      2. Lightly press the front surface of the back door glass to ensure that the back door glass is securely fit to the vehicle body.
      3. Using a scraper, remove any excess or protruding adhesive.

        HINT:

        Apply adhesive onto the glass rim.

        NOTE: Do not drive the vehicle within the time written in the table below.

        Minimum time

        TEMPERATURE SPECIFICATION

        Temperature Minimum time prior to driving vehicle
        35°C (95°F) 1 hour 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
        Fig 7: Applying Adhesive Onto Glass Rim
        G05586527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR SPOILER  (See INSTALLATION )
  6. INSTALL REAR WIPER MOTOR ASSEMBLY  (See REMOVAL )
  7. INSTALL REAR WIPER MOTOR GROMMET
  8. INSTALL BACK DOOR TRIM BOARD  (See REASSEMBLY )
  9. INSTALL BACK DOOR SIDE GARNISH LH  (See REMOVAL )
  10. INSTALL BACK DOOR SIDE GARNISH RH  (See REMOVAL )
  11. INSTALL BACK DOOR CENTER GARNISH  (See REMOVAL )
  12. INSTALL REAR WIPER ARM ASSEMBLY  (See REMOVAL )
  13. INSPECT FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
