Transfer Assembly: Components

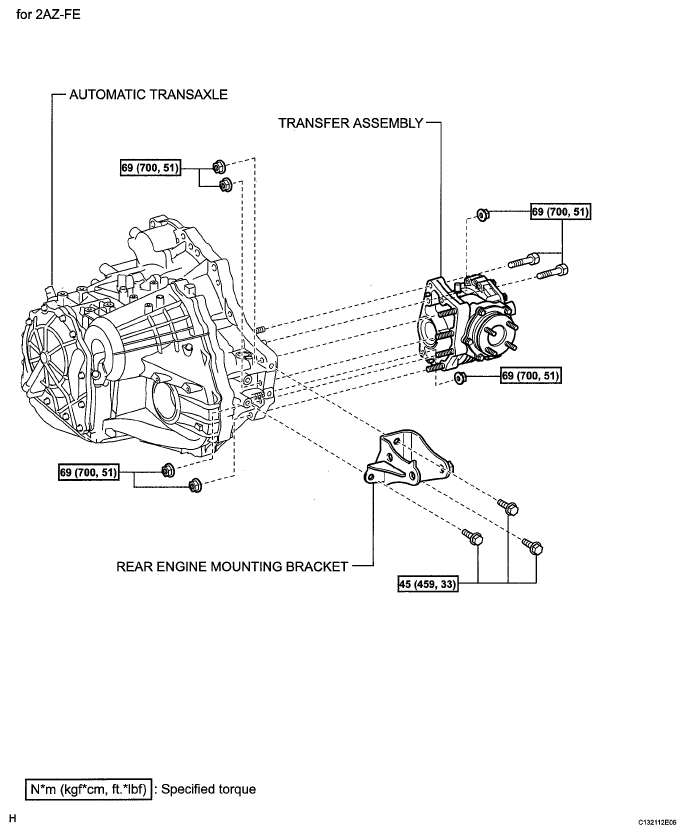

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (1 Of 4)
G05584681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

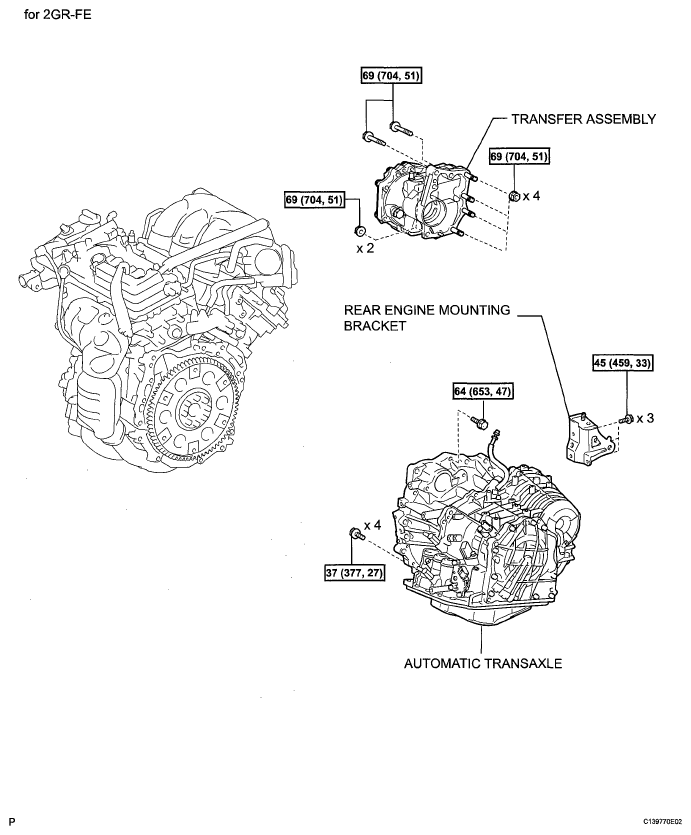

Fig 2: Identifying Transfer Assembly Replacement Components With Torque Specifications (2 Of 4)
G05584682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Transfer Assembly Replacement Components With Torque Specifications (3 Of 4)
G05584683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Transfer Assembly Replacement Components With Torque Specifications (4 Of 4)
G05584684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
