Valve Body: Components

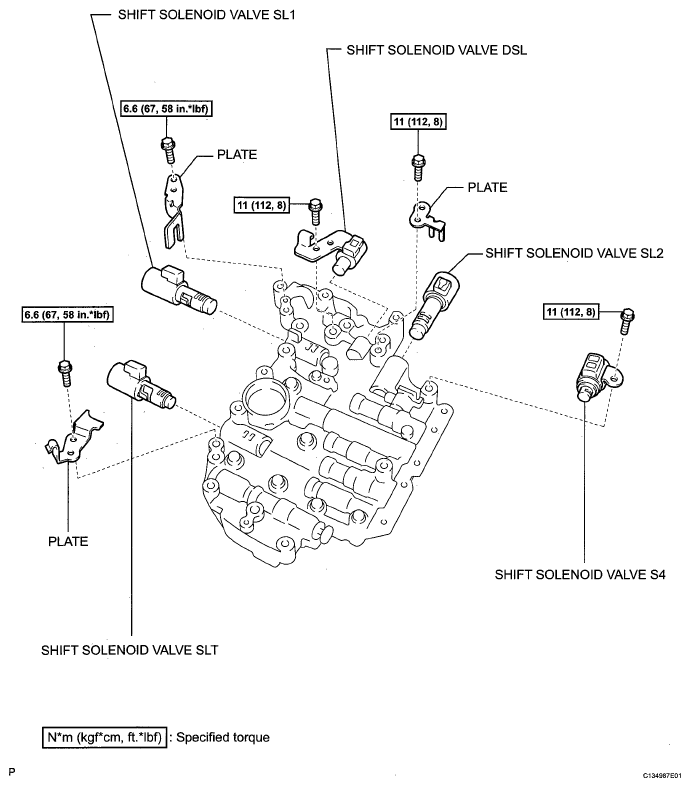

Fig 1: Valve Body Replacement Components With Torque Specifications
G05582758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
