Valve Body Assembly: Components

Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 2)
G05582282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

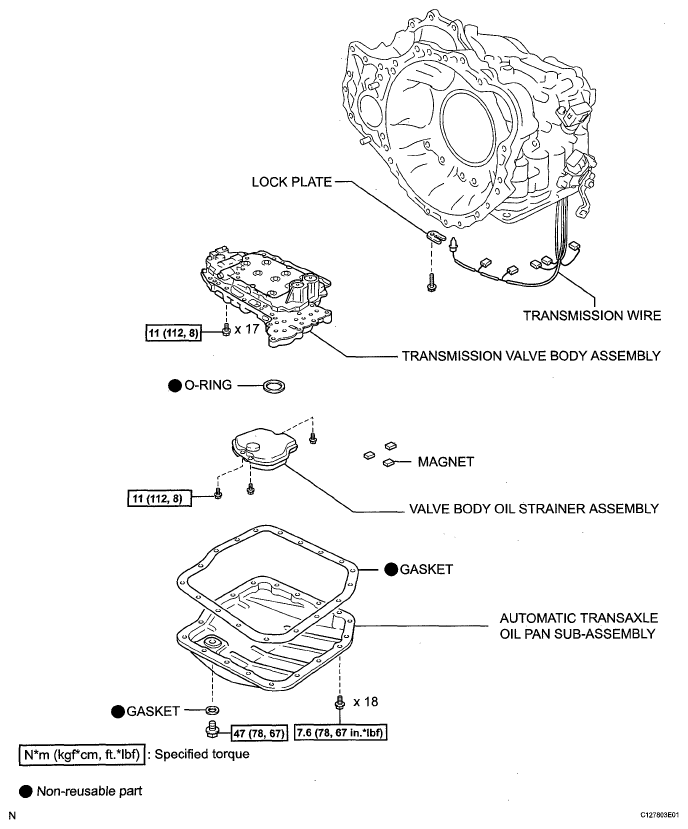

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G05582296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
