Home >> Toyota >> 2008 >> RAV4 Base, 2.4 D, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U140F >> Transmission Wire >> Components

Transmission Wire: Components

Fig 1: Identifying Transmission Wire Replacement Components (1 Of 2)
G05582282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

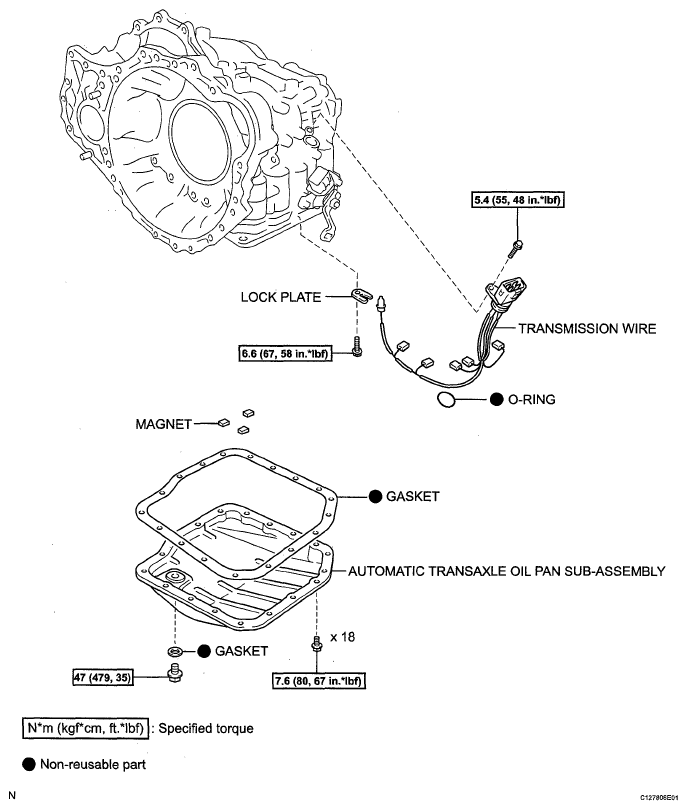

Fig 2: Identifying Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G05582283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
