Automatic Trans
>>
Automatic Transmission - U140F
>>
Shift Lock System
>>
System Diagram
System Diagram

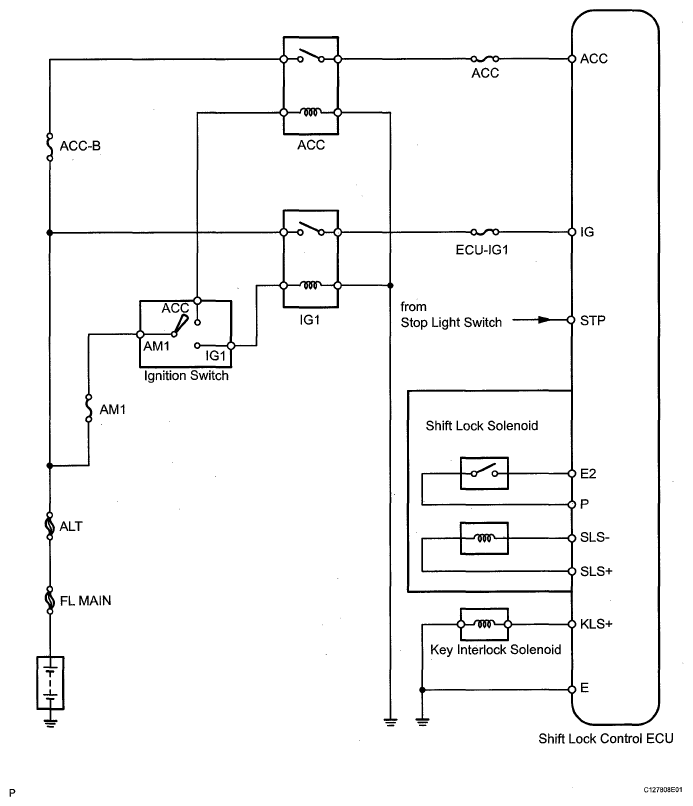

Fig 1: Identifying Shift Lock System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
