Floor Shift Assembly: Disassembly

  1. REMOVE LOWER POSITION INDICATOR HOUSING
    1. Detach the 4 claws and remove the housing.

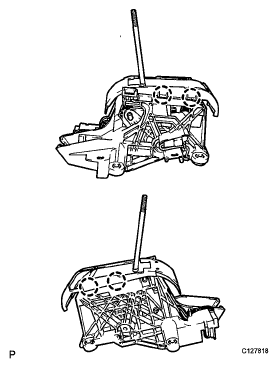

      2. Fig 1: Identifying Lower Position Indicator Housing Claws
      G05582349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the position indicator slide cover with slide No. 2 cover.
  2. REMOVE POSITION INDICATOR LIGHT HOUSING
    1. Detach the 2 claws and remove the indicator light housing from the floor shift position indicator housing.
    Fig 2: Identifying Indicator Light Housing
    G05582350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
  4. REMOVE SHIFT LOCK RELEASE BUTTON
    1. Detach the 2 claws and remove the button and spring from the position indicator light housing.
    Fig 3: Identifying Shift Lock Release Button
    G05582351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
