Front Door Lock: Inspection: Inspection

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FRONT DOOR LOCK LH ASSEMBLY
    1. Remove the front door lock assembly LH.
    2. Check operation of the door lock motor.
      Fig 1: Identifying Front Door Lock Assembly LH
      GTY120463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply battery voltage and check operation of the door lock motor.

        OK

        Measurement Condition Specified Condition
        Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock
    3. Check operation of the door key lock and unlock switch.

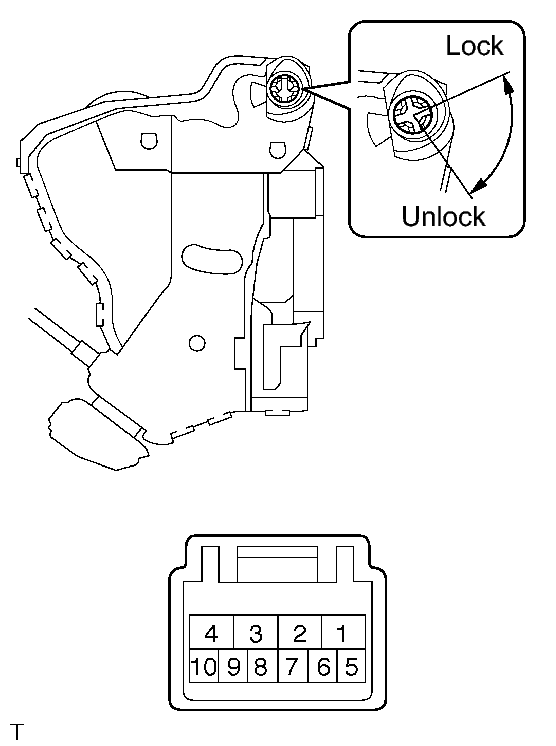

      Fig 2: Identifying Door Key Lock And Unlock Switch
      GTY120468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        Tester Connection Condition Specified Condition
        7 - 9 ON (Door lock set to LOCK) Below 1 Ω
        7 - 9, 7 - 10 OFF (Free) 10 kΩ or higher
        7 - 10 ON (Door lock set to UNLOCK) Below 1 Ω
    4. Check operation of the door unlock detection switch.

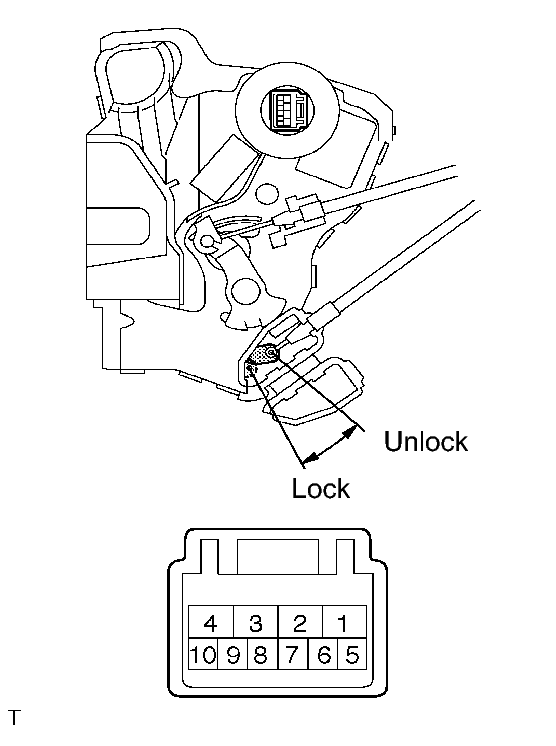

      Fig 3: Identifying Door Unlock Detection Switch
      GTY131989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        Tester Connection Measurement Condition Door Lock Condition Specified Condition
        7 - 8 Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock 10 kΩ or higher
        7 - 8 Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock Below 1 Ω
  2. INSPECT FRONT DOOR LOCK RH ASSEMBLY
    1. Remove the front door lock assembly RH.
    2. Check operation of the door lock motor.
      Fig 4: Identifying Door Lock Motor
      GTY125497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply battery voltage and check operation of the door lock motor.

        OK

        Measurement Condition Specified Condition
        Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock
    3. Check operation of the door unlock detection switch.

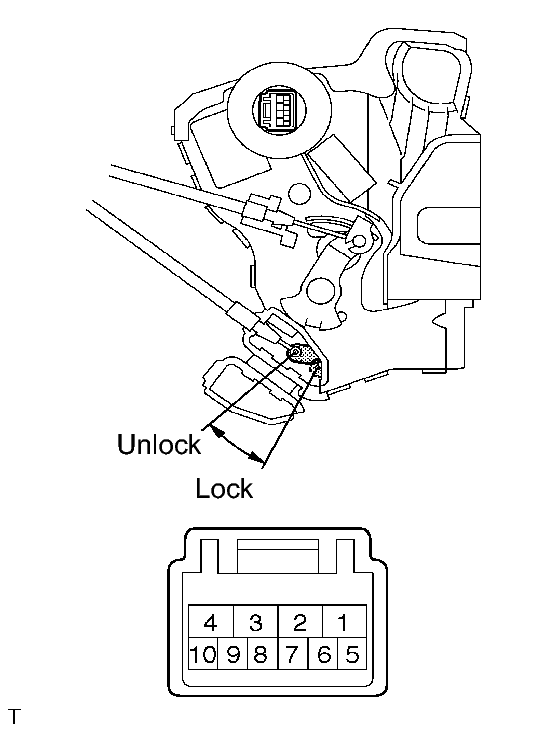

      Fig 5: Identifying Door Unlock Detection Switch
      GTY120472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        Tester Connection Measurement Condition Door Lock Condition Specified Condition
        7 - 8 Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 LOCK 10 kΩ or higher
        7 - 8 Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 UNLOCK Below 1 Ω
