ECM Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

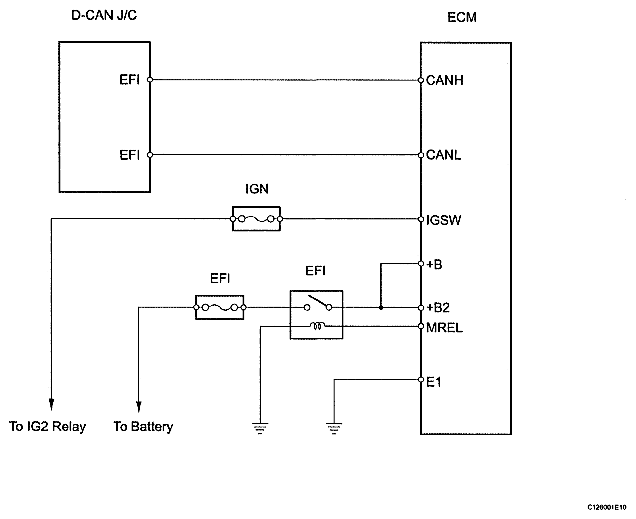

Fig 1: ECM Communication Stop Mode - Wiring Diagram
G04835698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
