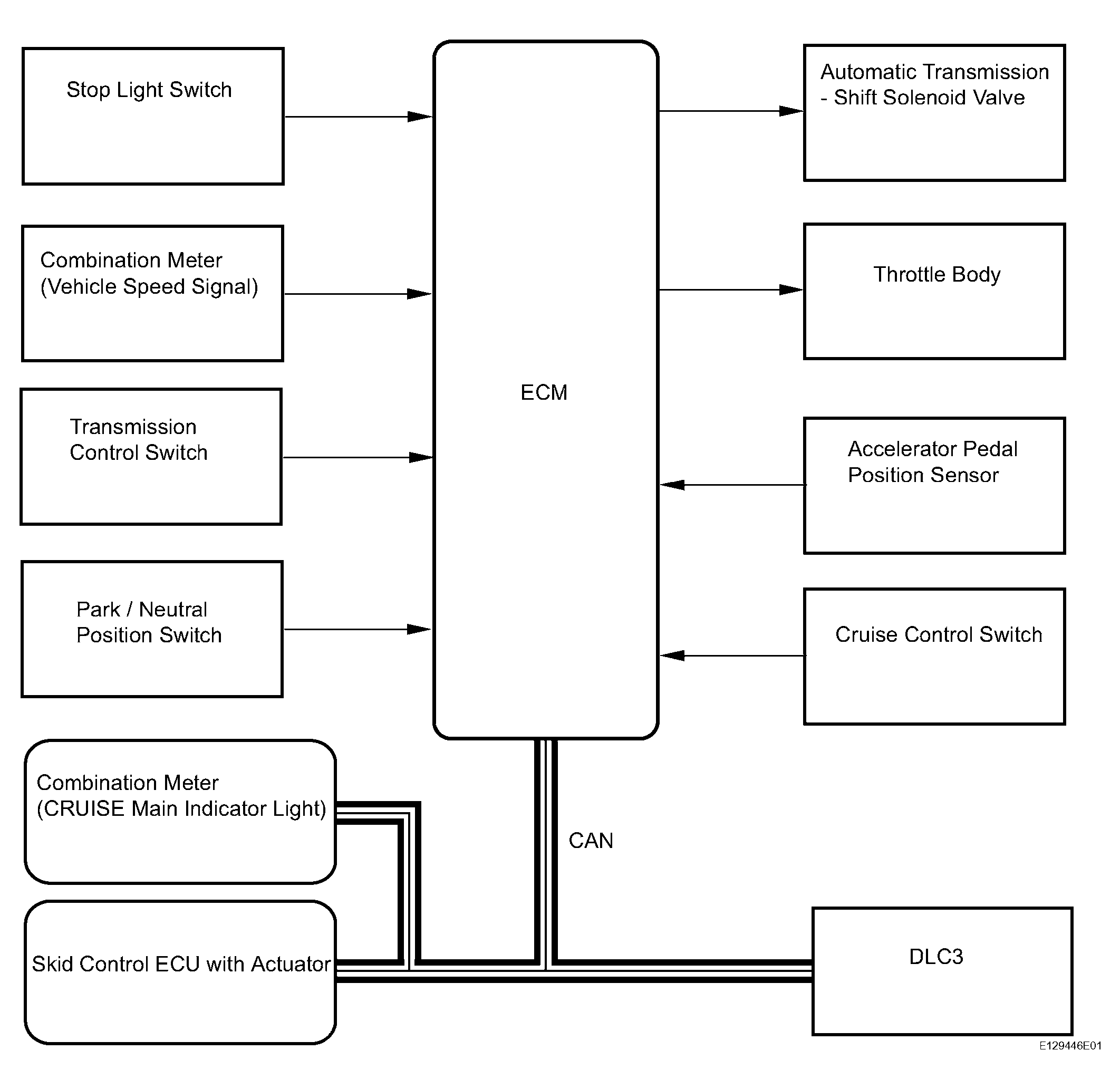

System Diagram
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table
COMMUNICATION
| Sender |
Receiver |
Signal |
Line |
| ECM |
Skid control ECU with actuator |
- VSC (Vehicle Stability Control) operation signal
- Coast brake operation signal
|
CAN |
| ECM |
Combination meter |
CRUISE main indicator light signal |
CAN |
