EVAP System: Wiring Diagram

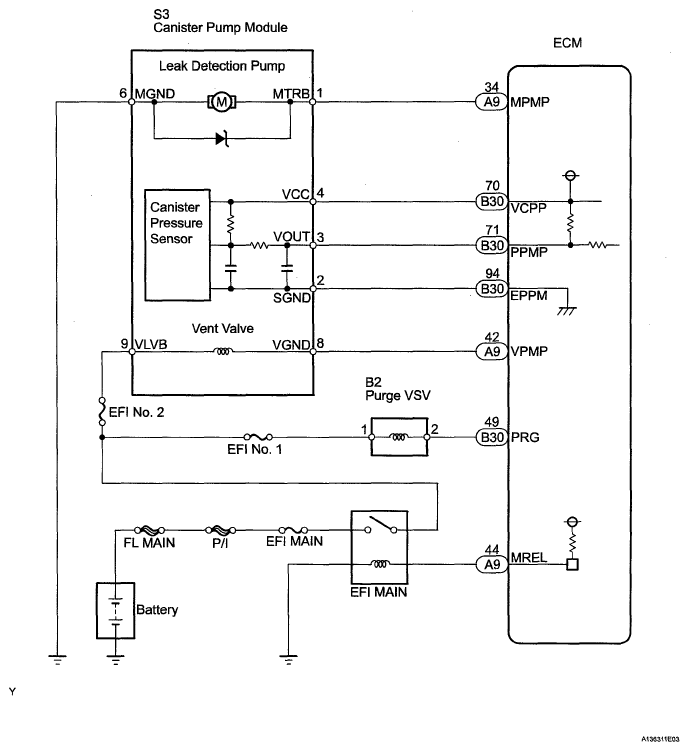

Fig 1: Canister Pressure Sensor - Wiring Diagram

G05581573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
