Upper Instrument Panel: Reassembly

  1. INSTALL COOLER (SOLAR SENSOR) THERMISTOR (for Automatic Air Conditioning System) (See appropriate step(s) under  INSTALLATION
  2. INSTALL AUTOMATIC LIGHT CONTROL SENSOR (for Automatic Light Control System)
  3. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  4. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
  5. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
  6. INSTALL NO. 3 HEATER TO REGISTER DUCT
    1. Install the duct with the 2 screws.

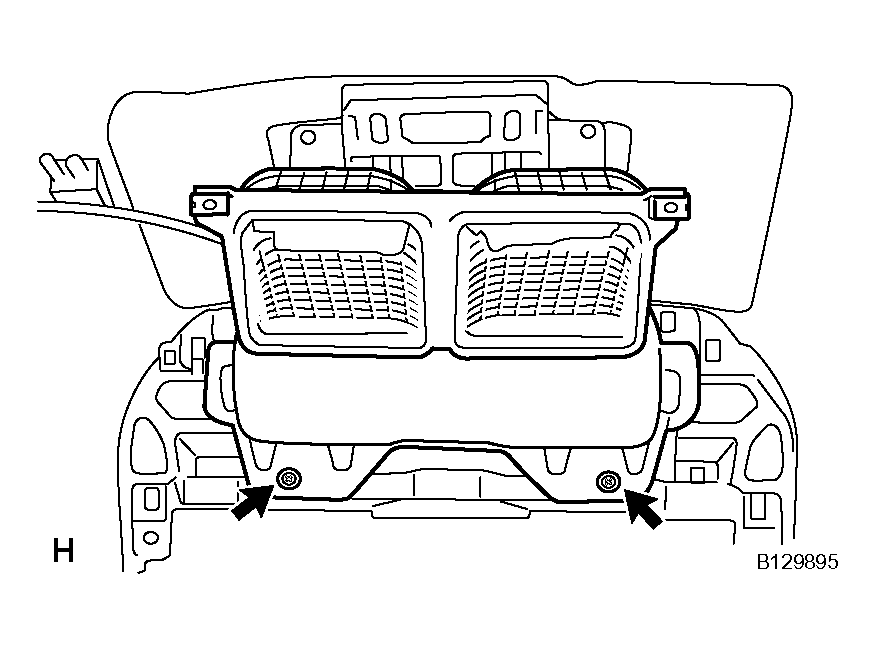

      Fig 1: Installing No. 3 Heater To Register Duct
      G04491528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the duct with the screw.

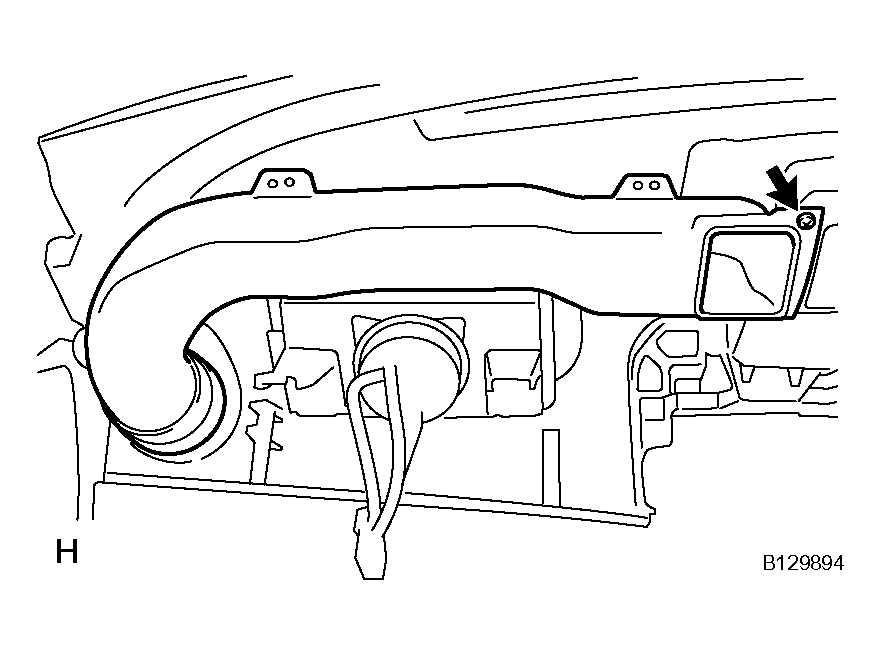

      Fig 2: Installing No. 2 Heater To Register Duct
      G04491529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the duct with the screw.

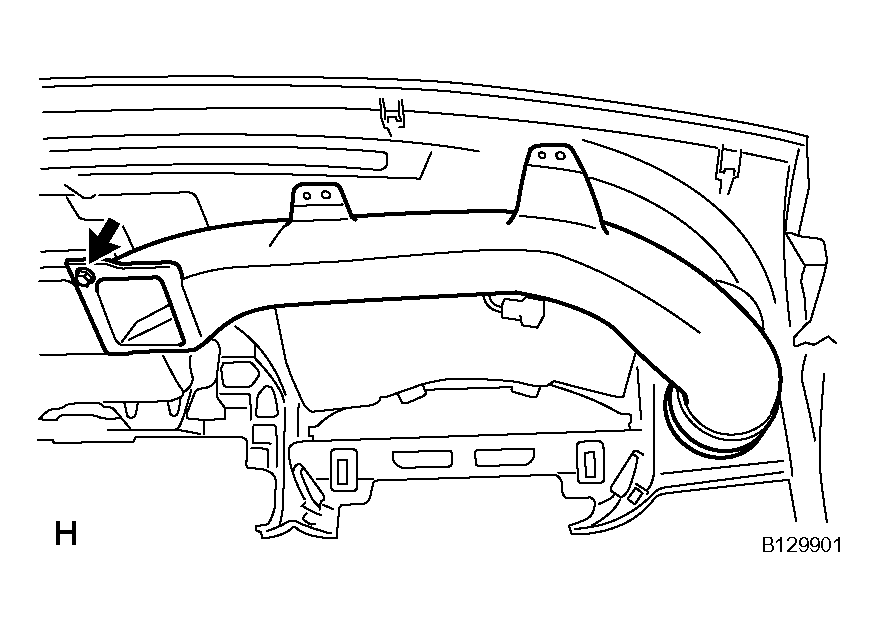

      Fig 3: Installing No. 1 Heater To Register Duct
      G04491530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Install the duct with the 3 screws.

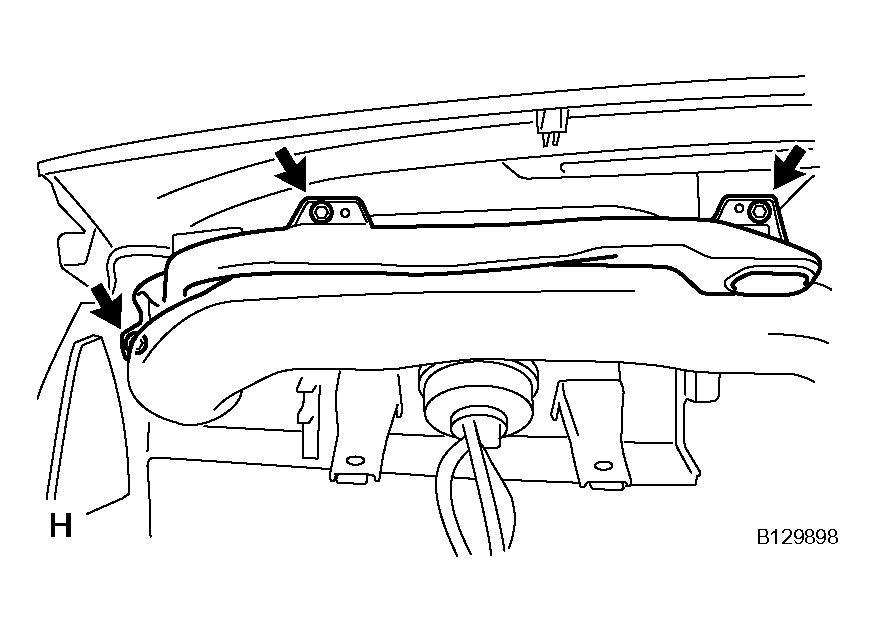

      Fig 4: Installing No. 2 Side Defroster Nozzle Duct
      G04491531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Install the duct with the 3 screws.

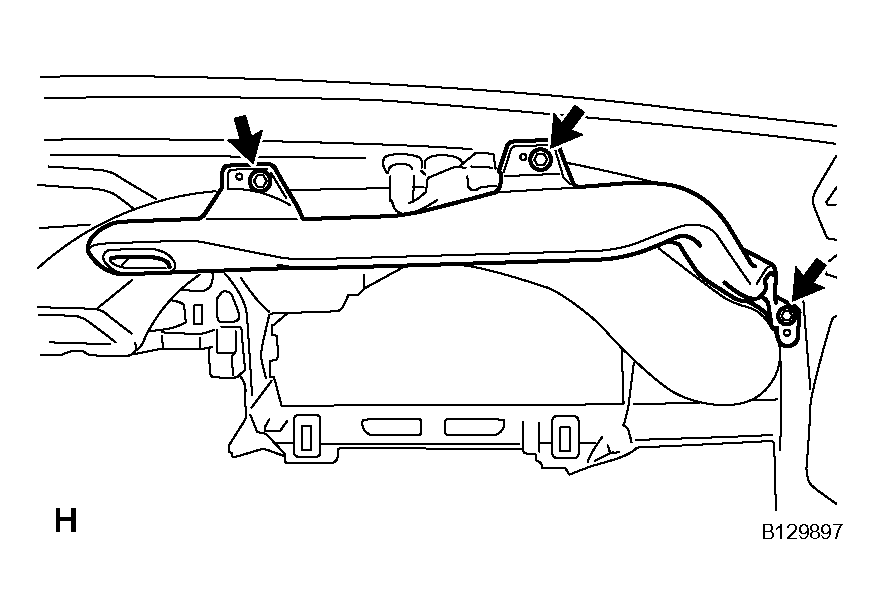

      Fig 5: Installing No. 1 Side Defroster Nozzle Duct
      G04491532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
