Upper Instrument Panel: Disassembly

  1. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 3 screws and duct.

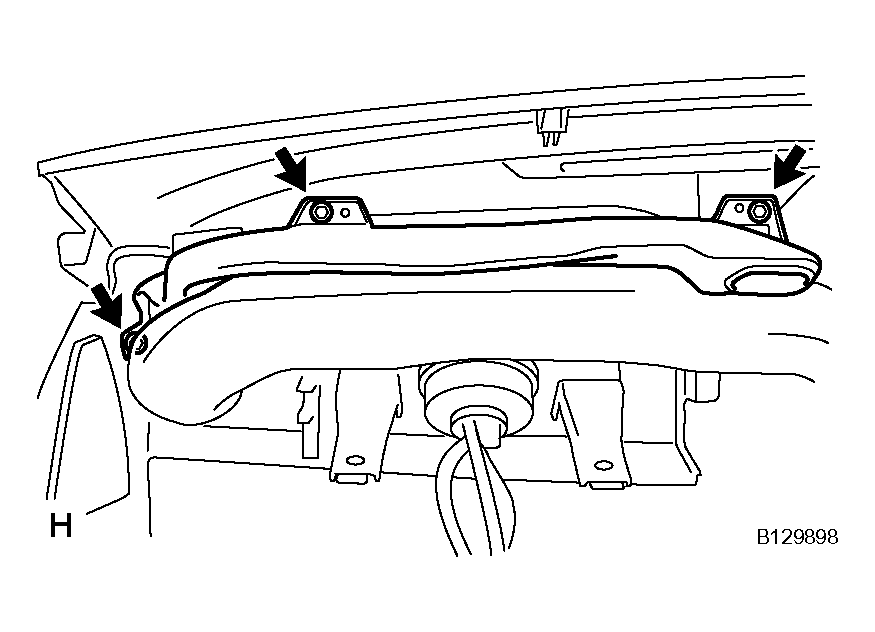

      Fig 1: Removing Screws
      G04491523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 3 screws and duct.

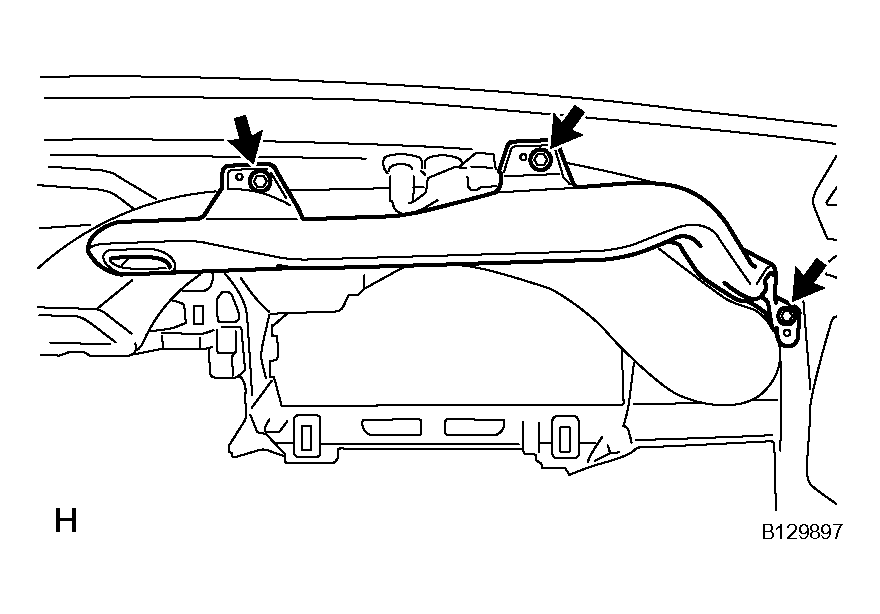

      Fig 2: Removing Screws
      G04491524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Remove the screw and duct.

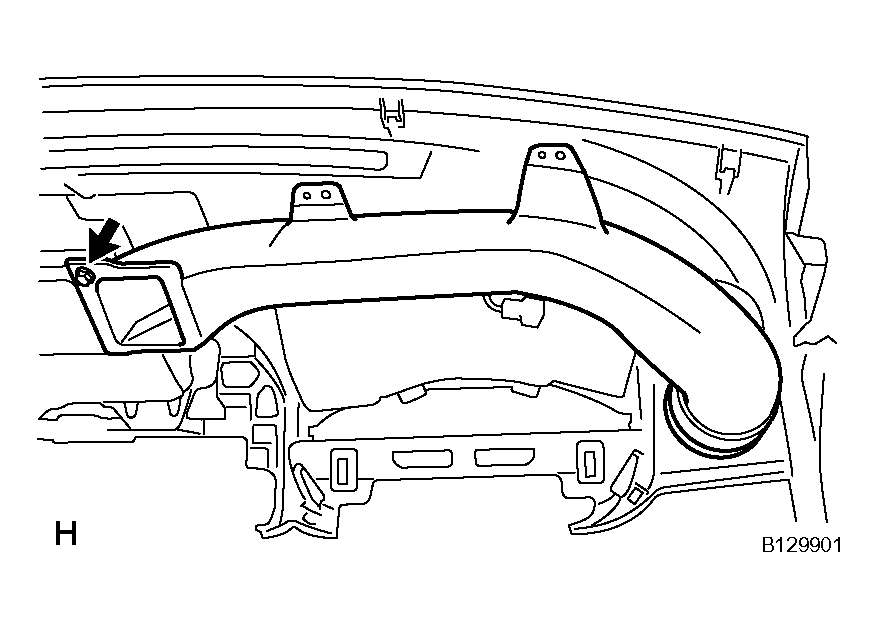

      Fig 3: Removing Screws
      G04491525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the screw and duct.

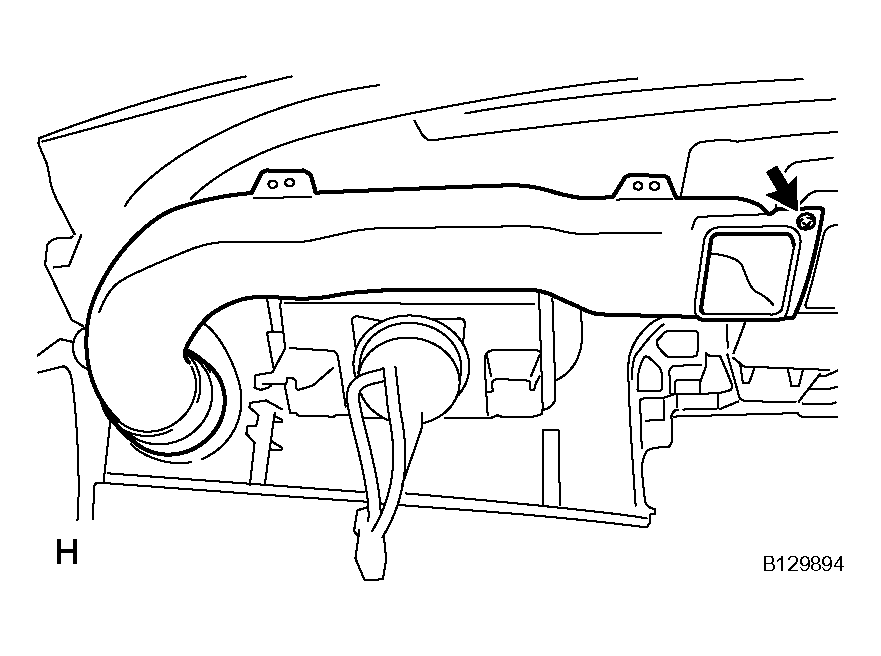

      Fig 4: Removing Screws
      G04491526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. Remove the 2 screws and duct.

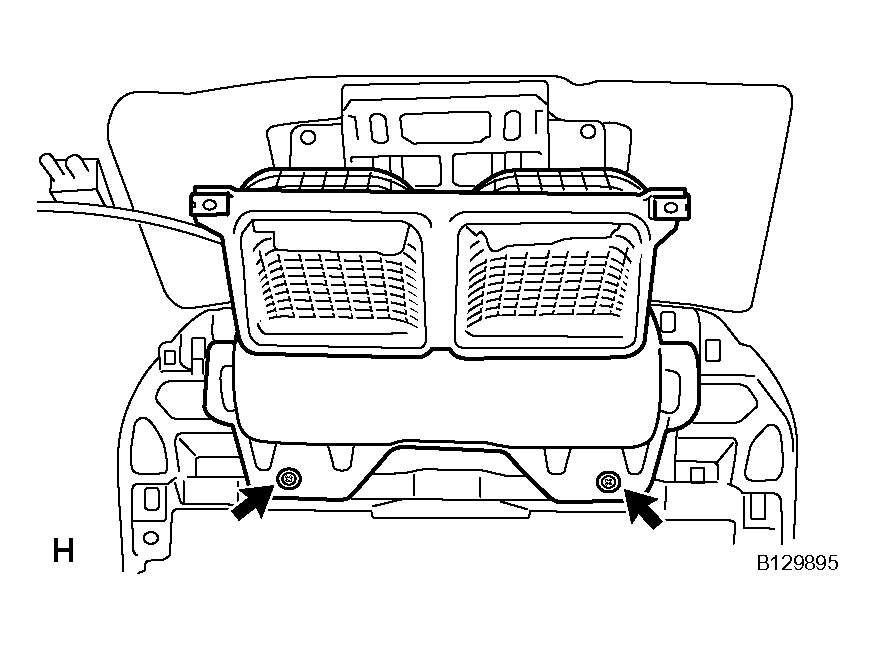

      Fig 5: Removing No. 3 Heater To Register Duct
      G04491527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
  7. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
  8. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
  9. REMOVE AUTOMATIC LIGHT CONTROL SENSOR (for Automatic Light Control System)
  10. REMOVE COOLER (SOLAR SENSOR) THERMISTOR (for Automatic Air Conditioning System) (See  SOLAR SENSOR (FOR AUTOMATIC AIR CONDITIONING SYSTEM)  )
